Common size on stock, Special sizes needs new production.Can cut to Size, cut to Shape.
EMERSONMETAL
| Quantity: | |
|---|---|
When selecting the appropriate stainless steel plate for your application, it's important to understand the distinct characteristics and advantages each grade offers:
1. 2101 Stainless Steel Plate:
Features: Economical, low-nickel content
Yield Strength: 450 MPa
Applications: Suitable for replacing 304 in structural components due to its cost-effectiveness and adequate strength.
2. 2205 Stainless Steel Plate:
Features: Classic second-generation duplex steel
Composition: Cr22Ni5Mo3N
Yield Strength: 450-620 MPa
PREN: Approximately 35
Applications: Ideal for marine, chemical, and pulp equipment due to its excellent corrosion resistance and strength.
3. 2207 (2507) Stainless Steel Plate:
Features: Super duplex steel
Composition: Cr25Ni7Mo4N
PREN: At least 40
Strength: 10% stronger than 2205
Applications: Perfect for deep-sea, high-chloride, and acidic oil and gas wells, thanks to its superior strength and corrosion resistance.
4. 2250 Stainless Steel Plate:
Features: "Super-super" duplex steel
Composition: Cr25Ni9M
Applications: Offers enhanced strength and corrosion resistance, making it suitable for the most demanding environments.
Each of these stainless steel plate grades is engineered to provide high performance and durability across various industries. By understanding the specific properties of each grade, you can select the most suitable option for your requirements, ensuring optimal results and longevity in your applications.

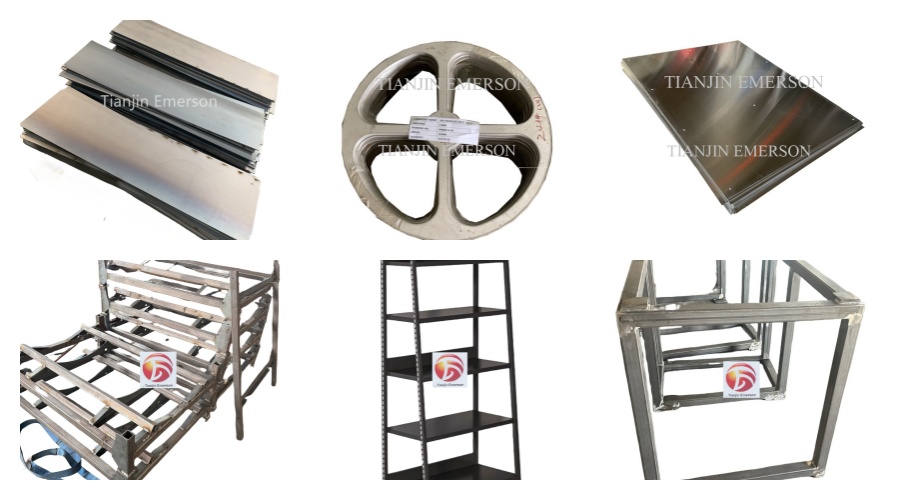

Stainless Steel Sheet Plate:
Sheet Metal Fabrication:
we have laser cutting machine, welding machine, bending machine, sawing cutting machine, cnc machining machine, we can do all types of carbon steel stainless steel aluminum plate metal parts, steel products,machining parts,etc.
| Product Name | 2205 2207 2101 2250 Duplex Stainless Steel Plate Sheet Custom Laser Cutting |
| Surface Treatment | Pickled White Surface;BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
| Grade | 2205 2207 2101 2250 |
| Steel Grade Stocking | 301L, S30815, 301, 304N, 310S, S32305, 410, 316Ti, 316L, 316, 321, 410S, 410L, 436L, 347, 430, 309S, 304, 439, 409L, 420J2, 436, 304L, 904L, 444, 317L; 200 300 400 series. |
| Shape | Flat, can be cut by drawing |
| Width | 60-2000mm |
| Thickness | 0.3-20mm |
| Length | 6,9,12m;Cut to Length |
| Processing | Laser Cutting ; Waterjet Cutting; Tapping, Bending, Welding. |
| Technique | Hot Rolled/Cold Rolled |
| Brand | TianJin Emerson |
| Packing | According to Customer's Requirements or Export's Standard |
| Delivery Time | Common size on stock,3days;Special sizes needs new production. |
| Application | All field |
2205 2207 2101 2250 Grade Chemical Composition and Technical Property is as below：
Grade | C % max | Cr% | Ni% | Mo% | N% | tensile strength（MPa） | yield strength（MPa） | Elongation% |
2101 | - | 21-22 | 1-1.5 | 0.5 | 0.15-0.21 | ≥650 | ≥450 | ≥30 |
| 2207 | 0.03 | 25 | 7 | 4 | 0.25-0.32 | ≥795 | ≥550 | ≥15 |
| 2250 | 0.03 | 25 | 9 | 4 | 0.3-0.4 | ≥850 | ≥620 | ≥15 |
2205 | 0.03 | 22-23 | 4.5-6.5 | 2.5-3.5 | 0.14-0.2 | 620-850 | 450-550 | ≥25 |
Mildly corrosive environments: Such as building curtain walls and water treatment supports, select 2101.
Moderately corrosive environments: Such as chemical storage tanks and pulp digesters, select 2205.
Severely corrosive environments: Such as subsea pipelines and offshore platform columns, select 2207.
Extremely corrosive environments: Such as seawater desalination heat recovery sections, select 2205.
Welding processing: 2101, 2205, 2207, 2250.
Q: What exactly are the differences between 2101, 2205, 2207, and 2250?
A: They differ in corrosion resistance. 2101≈25 (light), 2205≈35 (medium), 2207≈42 (heavy), 2250≥45 (extreme).
Q: Can it be laser cut?
A: Yes. We support laser cutting, as well as welding, bending, and drilling. We manufacture stainless steel parts according to drawings.
Q: Do you support quality inspection for samples?
A: Yes, we can send you stainless steel samples and support third-party inspection.
Q: How about the delivery time?
A: If for stock products, just need 5 days, if for special size from new production, need about 15 days.
