Introduction To Stainless Steel Thin Plate

Definition and Classification: Understanding the Thickness Threshold

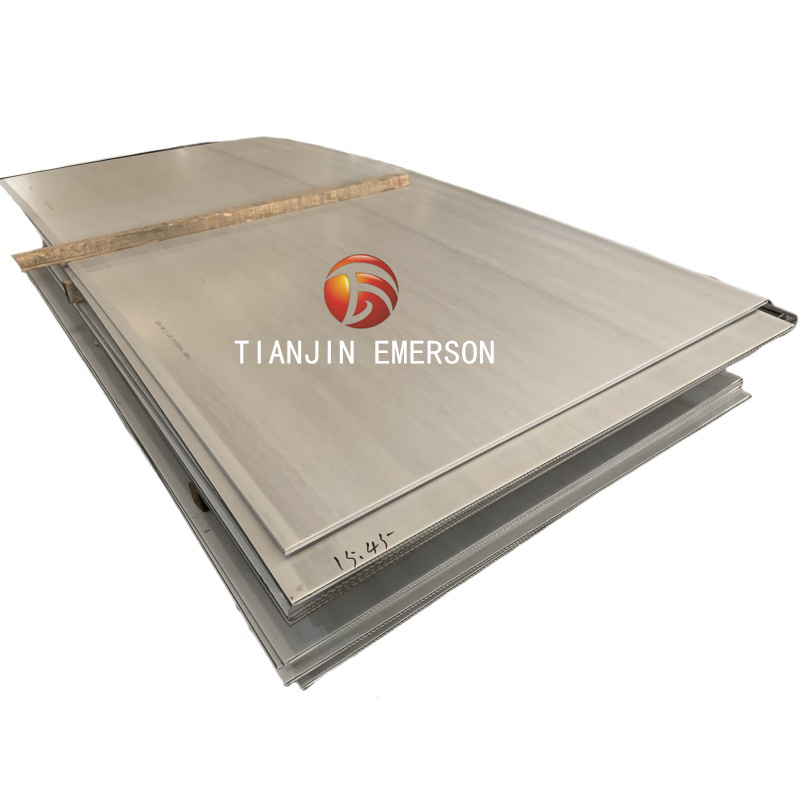

Stainless steel thin plate, also known as stainless steel sheet, refers to stainless steel flat products with relatively small thickness, typically ranging from 0.2mm to 4mm. In many industrial contexts, materials up to 6mm are also classified as sheet, while products above 6mm are designated as stainless steel plate or thick plate. Thin plates are predominantly produced through cold rolling, which delivers superior surface finish, tighter dimensional tolerances, and enhanced processing performance compared to hot-rolled alternatives. The most common thickness specifications include 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, and 3.0mm, with standard widths of 1000mm, 1219mm, and 1500mm. Based on surface finish, thin plates are classified into various grades: NO. 1 (hot-rolled and pickled, matte finish for general industrial use), NO.2B (cold-rolled and annealed, smooth and bright for appliance housings), BA (bright annealed, mirror-like finish for kitchenware and decorative panels), and HL (hairline or brushed finish for architectural applications). This systematic classification enables engineers and fabricators to select the optimal material for each specific application, balancing surface aesthetics, formability, and corrosion resistance requirements.

Core Properties: Corrosion Resistance, Strength, and Formability

The defining characteristic of stainless steel thin plate is its exceptional corrosion resistance, derived from the chromium content (typically 10.5% or higher) that forms a passive, self-repairing oxide layer on the surface. This protective film provides resistance against atmospheric corrosion, oxidation, and a wide range of chemical environments, including acids and chlorides—making stainless steel thin plate indispensable for applications in food processing, chemical equipment, medical devices, and architectural cladding. Beyond corrosion resistance, stainless steel thin plate offers excellent mechanical properties: typical tensile strength ranges from 515 MPa to 750 MPa, with yield strength from 205 MPa to 310 MPa and elongation of 40% to 60%. The material demonstrates outstanding formability, enabling complex operations such as deep drawing, bending, and stamping without cracking. Furthermore, stainless steel thin plate exhibits good heat resistance, maintaining structural integrity at elevated temperatures, and excellent cryogenic toughness, with no ductile-to-brittle transition at low temperatures. Its combination of corrosion resistance, strength, and formability positions stainless steel thin plate as a versatile material across virtually every industrial sector.

Common Grades: 304, 316, 430, and Their Distinct Advantages

Stainless steel thin plates are available in a variety of grades, each engineered for specific performance requirements. Grade 304 is the most widely used austenitic stainless steel, containing approximately 18% chromium and 8% nickel. It offers excellent general corrosion resistance, good formability, and ease of fabrication, making it the standard choice for kitchen equipment, food processing machinery, architectural applications, and general industrial components. The low-carbon variant, 304L, provides enhanced weldability by minimizing carbide precipitation in the heat-affected zone. Grade 316 incorporates 2–3% molybdenum, which significantly improves resistance to pitting and crevice corrosion in chloride-containing environments such as marine and chemical applications. 316L, the low-carbon version, is preferred for medical devices and welded structures where post-weld corrosion resistance is critical. Grade 430, a ferritic stainless steel, offers good corrosion resistance at a lower cost, with magnetic properties and good formability for home appliances and decorative applications. Grade 201 provides a cost-effective alternative for decorative panels where corrosion requirements are moderate. For the most demanding environments, duplex stainless steel 2205 offers exceptional strength and resistance to chloride stress corrosion cracking, making it suitable for offshore and marine engineering. Understanding these grade distinctions is essential for matching material properties to application requirements and avoiding costly material misselection.

Advanced Processing: Laser Cutting, Bending, and Welding

Stainless steel thin plate supports a full spectrum of precision fabrication processes, with laser cutting, CNC bending, and professional welding being the most critical operations. Laser cutting is the preferred method for thin plates due to its exceptional precision (tolerances within ±0.05mm), clean edges, and minimal heat-affected zone. For stainless steel, nitrogen assist gas is typically used to achieve oxidation-free, bright cut edges, while cutting parameters must be carefully adjusted—316 stainless steel requires slower speeds than 304 to prevent edge burning. Clean surfaces free from oil and contaminants are essential to avoid black spots that compromise subsequent welding or polishing. CNC bending transforms flat sheets into three-dimensional components, but stainless steel presents unique challenges due to its work hardening tendency and springback. The minimum bend radius should be at least equal to the material thickness to prevent cracking. For 304 stainless steel, springback of 0.5° to 3° must be compensated by designing the die angle accordingly (e.g., 88° for a 90° bend). The V-die opening should be 8 to 10 times the material thickness to avoid cracking. Welding of stainless steel thin plate requires precise control to preserve corrosion resistance. TIG welding is preferred for thin plates (≤3mm), with pulse current reducing heat input and minimizing distortion. Filler metals must match the base material—ER308 for 304, ER316 for 316—and shielding gas purity must exceed 99.99%. Post-weld treatment includes pickling and passivation to restore the passive oxide layer and remove heat tint. Proper process control at each stage ensures that the inherent advantages of stainless steel thin plate are fully realized in the final fabricated component.

Diverse Applications Across Major Industries

The versatility of stainless steel thin plate has established it as an essential material across a remarkably broad spectrum of industries. In construction and architecture, thin plates serve as building facades, curtain walls, roofing, elevator interiors, handrails, and decorative panels, where the combination of corrosion resistance and aesthetic appeal provides long-term value. The food and beverage industry relies on stainless steel thin plate for processing equipment, storage tanks, kitchen appliances, and sanitary fittings, where its non-reactive, easy-to-clean surface ensures product purity and hygiene. In medical and pharmaceutical applications, thin plates are used for surgical instruments, medical device housings, sterilization equipment, and cleanroom components, where biocompatibility and corrosion resistance are critical. The automotive and transportation sectors utilize thin plates for exhaust systems, interior trim, vehicle body panels, and fuel tanks, leveraging the material's strength, formability, and heat resistance. Chemical and industrial processing applications include reactors, heat exchangers, piping, and storage tanks for corrosive media. The electronics and consumer goods industries specify thin plates for mobile phone housings, computer chassis, home appliances, and precision components, where dimensional accuracy and surface quality are paramount. Additional applications span aerospace, marine equipment, pulp and paper, textile machinery, and water treatment systems. This extraordinary versatility, combined with proven performance across demanding environments, establishes stainless steel thin plate as one of the most widely utilized materials in modern manufacturing and construction.
