Materials And Properties of Hot-Rolled High-Strength Plates

Introduction to Hot-Rolled High-Strength Steel Plates

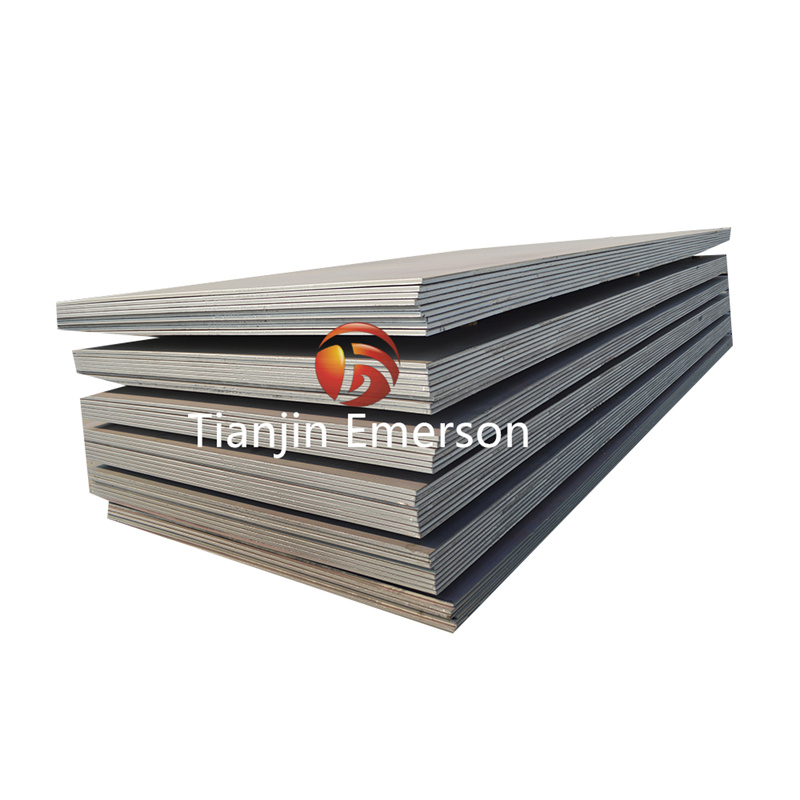

Hot-rolled high-strength steel plates are a specialized category of flat-rolled steel products engineered to deliver exceptional tensile strength, structural durability, and mechanical performance in demanding applications across construction, automotive, shipbuilding, and heavy equipment manufacturing. These plates are produced through advanced hot-rolling processes at elevated temperatures, followed by controlled cooling and, in many cases, thermo-mechanical controlled processing (TMCP) or heat treatment to achieve the desired microstructure and mechanical properties. The defining characteristic of high-strength steel plates is their ability to provide superior load-bearing capacity and resistance to deformation while enabling lighter-weight designs compared to conventional carbon steel grades. This combination of strength and weight efficiency has made them indispensable materials for modern engineering and infrastructure projects worldwide.

Classification of High-Strength Steel Plate Grades

Hot-rolled high-strength steel plates are systematically classified into multiple categories based on their chemical composition, mechanical properties, and intended applications. The most widely recognized classifications are defined by ASTM International standards, which establish comprehensive specifications for high-strength low-alloy (HSLA) steel plates. The ASTM A572 specification covers columbium-vanadium HSLA steel plates in five strength grades: Grade 42, Grade 50, Grade 55, Grade 60, and Grade 65, with the grade number designating the minimum yield strength in ksi. Grade 50 is the most commonly used, offering a minimum yield strength of 50 ksi (345 MPa). The ASTM A656 specification addresses hot-rolled HSLA plates with improved formability, available in Grades 50, 60, 70, 80, and 100. The ASTM A588 specification covers HSLA plates with atmospheric corrosion resistance, providing a minimum yield point of 50 ksi (345 MPa). Additional specifications include ASTM A633 for normalized high-strength low-alloy structural steel plates and ASTM A1066 for plates produced by thermo-mechanical controlled processing (TMCP).

Chemical Composition and Metallurgical Design

The superior mechanical properties of hot-rolled high-strength steel plates are achieved through carefully controlled chemical compositions and microalloying strategies. These steels are fundamentally high-strength low-alloy (HSLA) materials, which achieve higher strength with much lower alloy content compared to traditional carbon-manganese steels or AISI/SAE alloy grades. The lower carbon content and reduced alloying lead to increased ductility, toughness, and weldability. Typical chemical compositions for HSLA plates include carbon levels below 0.23%, manganese up to 1.35%, phosphorus and sulfur restricted to low levels (typically 0.04% and 0.05% maximum, respectively), and silicon up to 0.40%. For advanced grades such as ASTM A656 Grade 100, carbon is maintained below 0.10%, with phosphorus limited to 0.025% and sulfur to 0.006%, resulting in a cleaner, more homogeneous material. The key strengthening mechanism involves microalloying elements—niobium, vanadium, and titanium—added singly or in combination. These elements form fine precipitates that refine the grain structure and provide precipitation strengthening during controlled rolling and cooling. The combination of low carbon, restricted impurities, and microalloy additions enables HSLA plates to achieve high strength while maintaining excellent weldability and toughness.

Mechanical Properties and Performance Characteristics

The mechanical properties of hot-rolled high-strength plates vary significantly across grades, with yield strength and tensile strength being the primary performance indicators. For ASTM A572 Grade 50, the minimum tensile strength is 65 ksi (450 MPa) with a minimum yield strength of 50 ksi (345 MPa) and elongation of 16% in 8 inches. ASTM A572 Grade 60 offers a minimum yield strength of 60 ksi (415 MPa) and tensile strength of 75 ksi (520 MPa), providing 20% higher yield strength than Grade 50. ASTM A656 plates exhibit progressive strength levels: Grade 50 offers 50 ksi (345 MPa) yield and 60 ksi (415 MPa) tensile; Grade 60 provides 60 ksi (415 MPa) yield and 60 ksi (485 MPa) tensile; Grade 70 delivers 70 ksi (485 MPa) yield and 80 ksi (550 MPa) tensile; and Grade 80 achieves 80 ksi (550 MPa) yield and 90 ksi (620 MPa) tensile. The highest strength in the A656 series, Grade 100, provides a minimum yield strength of 100 ksi (690 MPa). Hardness values for these grades typically range from 135 Brinell for A572 Grade 50 to higher values for stronger grades. Elongation, indicating ductility, generally decreases as strength increases, with Grade 50 exhibiting 19-21% elongation in 2 inches and Grade 80 showing 12% in 2 inches.

Delivery Conditions and Processing Methods

Hot-rolled high-strength plates are supplied in various delivery conditions depending on the specification and grade requirements. ASTM A656 plates are normally furnished in the as-rolled condition, without subsequent heat treatment. However, for plates produced from coil, additional testing requirements may apply. ASTM A572 plates are typically supplied in the as-rolled condition, with thickness and plate width affecting mechanical properties. For applications requiring enhanced toughness or specific microstructures, normalized or thermo-mechanical controlled processed (TMCP) conditions are specified. ASTM A633 covers normalized high-strength low-alloy structural steel plates, while ASTM A1066 addresses plates produced by TMCP. For the highest strength requirements, quenched-and-tempered (Q&T) alloy steel plates such as ASTM A514 provide exceptional strength-to-weight ratios.

Dimensional Availability and Thickness Ranges

Hot-rolled high-strength plates are available in a wide range of dimensions to accommodate diverse engineering requirements. Maximum thickness varies by grade: ASTM A656 Grade 50 is available up to 2 inches (50 mm), Grade 60 up to 1.5 inches (40 mm), and Grades 70 and 80 up to 1 inch (25 mm). A572 plates are available in thicknesses from 0.1875 inches up to 6 inches (150 mm) and widths from 60 to 120 inches. Typical plate widths range from 96 to 120 inches, with lengths commonly supplied in 240- or 480-inch increments. For specialized applications, plates can be produced in thicknesses exceeding 100 mm with yield strengths of 900-1100 MPa. Advanced processing techniques allow for thicknesses up to 120 mm for ultra-high-strength hydropower steel applications.

Applications Across Major Industries

Hot-rolled high-strength plates serve critical functions across numerous industrial sectors due to their exceptional strength-to-weight ratios and structural durability. In construction and infrastructure, these plates are essential for bridges (including ASTM A709 and weathering steel grades), high-rise building columns, heavy equipment foundations, and seismic-resistant structures. The automotive and transportation industries utilize high-strength plates for truck frames, crane booms, rail cars, school buses, earth-moving equipment, agricultural equipment, and RV frames. The shift toward lightweight vehicles has accelerated adoption of high-strength steel, with grades coupling tensile strengths above 600 MPa with high crash energy absorption. In heavy machinery and equipment manufacturing, these plates are used for crane booms, mining equipment, offshore platforms, construction equipment, mobile man lifts, and heavy vehicle frames. The energy sector specifies high-strength plates for wind turbine towers, hydropower steel structures, and pressure vessels. High-strength plates are also widely used in shipbuilding for hull structures that require both strength and corrosion resistance, with ASTM A588 providing atmospheric corrosion resistance for exposed structural applications.
