In the realm of metalworking, sheet metal fabrication stands as a cornerstone process, pivotal in shaping the modern industrial landscape. From constructing intricate aircraft components to crafting everyday household appliances, the versatility of sheet metal fabrication is unparalleled. However, the efficacy of this process is heavily reliant on the tools employed. The right set of tools not only ensures precision and efficiency but also enhances safety in the workshop. This comprehensive exploration delves into the essential equipment that every workshop must possess to excel in sheet metal fabrication.
At its core, sheet metal fabrication involves manipulating flat sheets of metal into desired shapes and sizes through various processes such as cutting, bending, forming, and assembling. This transformative process is integral in industries ranging from automotive to aerospace, construction to electronics. The quality and functionality of the fabricated products are significantly influenced by the tools used during fabrication.
The choice of material in sheet metal fabrication is crucial. Common materials include steel, aluminum, copper, brass, and titanium. Each material possesses unique properties such as strength, malleability, and corrosion resistance. For instance, aluminum is prized for its lightweight and corrosion-resistant nature, making it ideal for aerospace applications. Understanding these materials is fundamental in selecting appropriate tools and processes.
Precision is paramount in sheet metal fabrication. The intricate components produced often require adherence to tight tolerances. Precision tools ensure that each cut, bend, and form aligns perfectly with design specifications. This not only guarantees the functionality of the final product but also reduces material waste and increases overall efficiency.
Cutting is the foundational step in sheet metal fabrication. Accurate cuts are essential for the subsequent stages of bending and forming. A variety of tools are available, each suited to specific types of cuts and materials.
Hand shears and snips are basic yet indispensable tools in any workshop. They are ideal for making straight cuts or gentle curves in thin sheets of metal. Aviation snips, in particular, are designed for cutting intricate patterns with precision. Despite their simplicity, these tools require skill to use effectively without distorting the metal.
For cutting thicker metals or for higher volume work, power shears are essential. These tools reduce physical strain and increase efficiency. Electric and pneumatic shears offer consistent cuts and can handle a variety of metal thicknesses. Operators must be trained to handle these tools safely to prevent accidents.
Angle grinders are versatile tools used not only for cutting but also for grinding and polishing metal surfaces. Equipped with abrasive discs, they can cut through hard metals with ease. The precision of an angle grinder depends on the operator’s skill, making training essential for effective use.
Band saws are perfect for cutting straight lines or complex shapes in thicker metals. The saw's continuous blade allows for consistent cuts with minimal kerf loss. Maintaining blade sharpness and proper tension is crucial for optimal performance and longevity of the tool.
As technology advances, so do the tools available for sheet metal fabrication. Incorporating modern cutting technologies can enhance precision and efficiency in the workshop.
Laser cutting utilizes focused light beams to cut metal with unparalleled precision. It’s ideal for intricate designs requiring tight tolerances. While the initial investment is significant, the return in terms of speed and accuracy is substantial. Moreover, laser cutting minimizes material waste due to its precision.
Plasma cutting employs electrically conductive gas to transfer energy from a power supply to any conductive material, resulting in a cleaner cut than oxy-fuel cutting methods. Plasma cutters are versatile, capable of cutting through various thicknesses and types of metal quickly and efficiently.
Waterjet cutting uses high-pressure streams of water, often combined with abrasive materials, to cut metals without generating heat. This cold cutting process preserves the structural integrity of the metal, making it ideal for materials sensitive to high temperatures. It also allows for intricate cuts and minimal material distortion.
Once the metal is cut, forming and shaping are essential to achieve the desired dimensions and geometries. The right tools facilitate precision and repeatability in these processes.

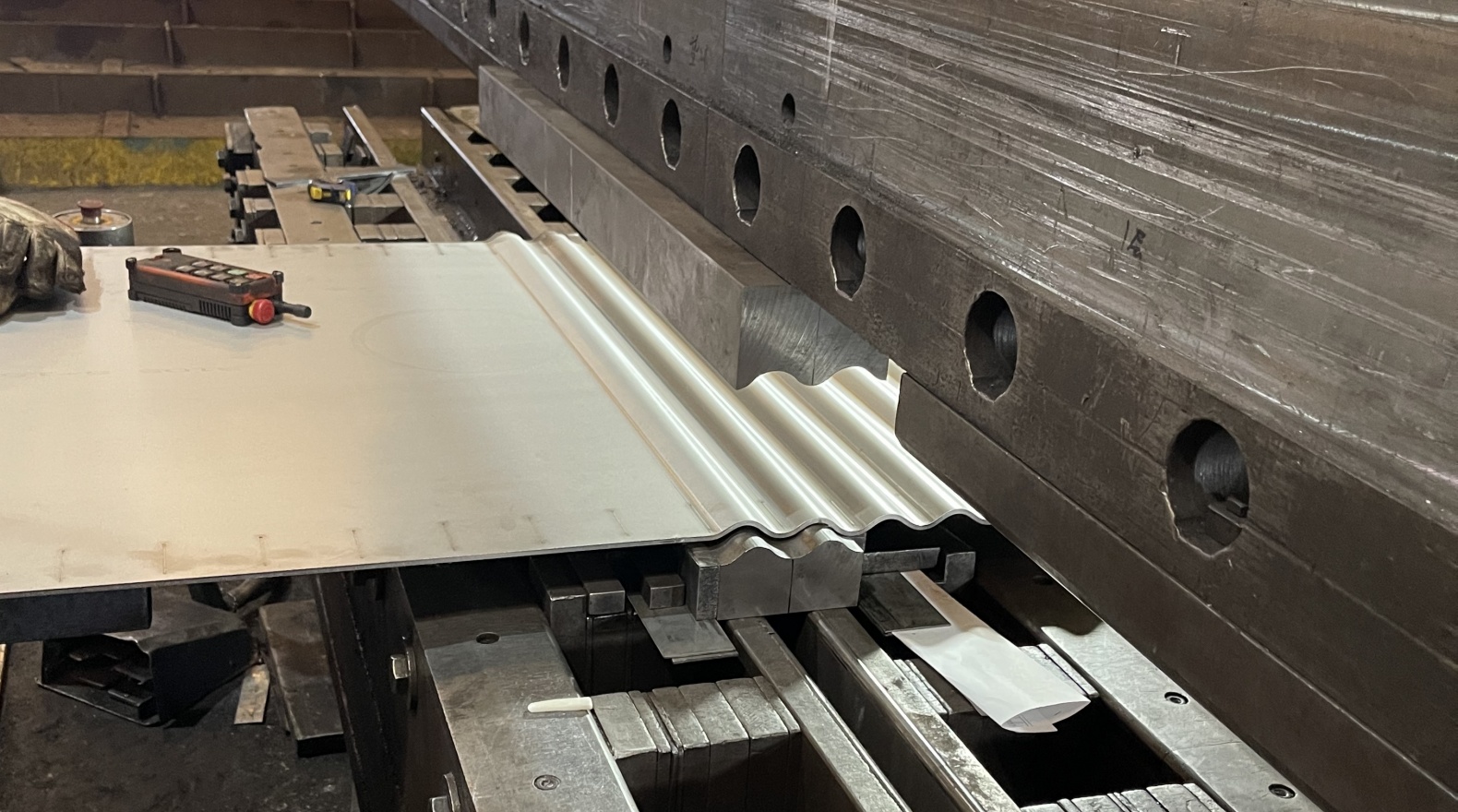

Press brakes are fundamental for bending metal sheets into specific angles and shapes. They use a punch and die system to apply force, bending the metal accurately. Modern CNC press brakes offer programmable controls for precision and efficiency, allowing for complex bending sequences with minimal manual intervention.
An English wheel is a classic tool for creating smooth, curved surfaces in sheet metal. It is particularly useful in automotive restoration and aircraft construction for forming compound curves. Mastery of the English wheel requires practice, as it relies on the operator's skill to manipulate the metal effectively.
Slip rolls are essential for creating consistent cylindrical shapes. They work by feeding the metal sheet between rollers, which bend it into a curve. Adjustments to the roller positions allow for varying diameters, making slip rolls versatile for different projects such as creating pipes, cylinders, or cones.
Specialized hammers and mallets are indispensable for manual shaping tasks. Metalworking hammers, such as ball-peen and planishing hammers, are used to flatten, shape, and finish metal surfaces. Non-marking mallets made of materials like rubber or wood are used to manipulate metal without leaving tool marks.
Assembling metal components requires secure and precise joining methods. The tools used in these processes are critical for ensuring structural integrity and aesthetic quality.
Welding is a primary method for joining metal parts. Different welding techniques, such as MIG, TIG, and stick welding, are suited to various materials and thicknesses. Quality welding equipment ensures strong, durable joints. Safety gear, including auto-darkening helmets and gloves, is vital to protect operators from hazards.
Riveting is essential for joining metal sheets where welding is impractical. Hand riveters and pneumatic rivet guns are used to install rivets swiftly and securely. This method is prevalent in the aerospace and construction industries due to its reliability and strength.
Fasteners such as bolts, nuts, and screws are fundamental in metal fabrication. Tools like torque wrenches and impact drivers are necessary for proper installation. Ensuring the correct torque is applied prevents joint failures and maintains structural integrity.
A well-finished product not only looks professional but also functions better. Finishing processes can enhance the appearance, durability, and performance of metal products.
Grinders and sanders are used to smooth out rough edges, remove excess material, and prepare surfaces for painting or coating. Bench grinders and belt sanders are common in workshops. Using the right abrasive materials is crucial for achieving the desired finish without damaging the metal.
Deburring removes sharp edges and burrs left over from cutting or drilling. Handheld deburring tools or specialized machines ensure that metal parts are safe to handle and fit together properly. This step is essential in preventing injuries and ensuring precision in assemblies.
Polishing and buffing enhance the aesthetic appeal of metal products. These processes can also protect metal surfaces from corrosion. Equipment ranges from handheld polishers to industrial buffing machines. Selection depends on the size of the workpiece and the desired level of finish.
Accurate measurements are foundational to quality fabrication. The right tools ensure that every cut and bend meets precise specifications.
Calipers and micrometers are essential for measuring dimensions with high accuracy. Digital calipers provide quick and precise measurements of length, width, and depth. Micrometers are used when even greater precision is required, measuring down to the thousandths of an inch.
These tools are vital for ensuring angles and edges are accurate. Combination squares can check 90-degree and 45-degree angles and are also useful for marking straight lines. Protractors help in measuring and setting precise angles, which is crucial in complex assemblies.
Accurate marking precedes accurate cutting and forming. Scribes, center punches, and layout fluids assist in transferring measurements onto metal surfaces. They provide clear guides that improve the precision of subsequent fabrication steps.
Safety is paramount in any workshop environment. Proper safety equipment protects workers from potential hazards associated with metal fabrication.
Essential PPE includes safety glasses, gloves, ear protection, and steel-toe boots. Respiratory protection may be necessary when welding or cutting metals that emit harmful fumes. Ensuring that all personnel are equipped with appropriate PPE reduces the risk of accidents and health issues.
Metal fabrication often involves processes that generate sparks and heat. Fire extinguishers, fire blankets, and proper ventilation systems are critical to prevent and control fires. Regular safety drills and equipment checks ensure preparedness in case of emergencies.
Choosing the appropriate tools depends on the specific needs of your projects. Consider factors such as the types of metals you work with, the complexity of designs, production volume, and budget constraints.
Begin by evaluating the typical projects undertaken in your workshop. Identify the materials commonly used and the processes frequently employed. This assessment guides you in prioritizing tools that will have the most significant impact on your productivity and quality.
High-quality tools may require a larger initial investment but offer long-term benefits. They tend to be more durable, provide better performance, and often come with comprehensive support and warranties. Investing in reputable brands can reduce downtime and maintenance costs.
The physical space of your workshop influences the choice of tools. Larger equipment like press brakes and laser cutters require adequate space not only for the machine itself but also for material handling. Efficient layout planning optimizes workflow and enhances safety.
Regular maintenance of tools extends their lifespan and ensures consistent performance. It also plays a role in workplace safety by preventing malfunctions that could lead to accidents.
Implement a schedule for routine inspections of all equipment. Check for signs of wear, damage, or misalignment. Early detection of issues allows for timely repairs, minimizing downtime and preventing more significant problems.
Cleaning removes debris that can cause equipment to malfunction. Lubrication reduces friction, prevents rust, and ensures smooth operation. Follow manufacturer guidelines for cleaning agents and lubricants suitable for each piece of equipment.
Proper tool maintenance includes ensuring that operators are well-trained. Skilled workers are more likely to use tools correctly, reducing wear and tear. Ongoing training programs keep staff updated on best practices and technological advancements in equipment use.
The field of sheet metal fabrication is continually evolving. Embracing new technologies can provide a competitive edge through increased efficiency, precision, and the ability to tackle more complex projects.
CNC machines automate fabrication processes, allowing for high precision and repeatability. They are programmable, enabling quick adjustments and the production of complex shapes. CNC technology reduces manual errors and speeds up production timelines.
While not traditionally associated with sheet metal, 3D printing is becoming a valuable tool for prototyping and testing designs before full-scale production. It allows for rapid iteration and can help identify potential issues early in the development process.
Software tools for design and fabrication planning are essential. Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software streamline the transition from concept to production. Integration of these tools with equipment like CNC machines enhances efficiency and accuracy.
The realm of sheet metal fabrication is vast and dynamic. Equipping your workshop with the essential tools is a fundamental step toward achieving excellence in this field. From basic hand tools to advanced machinery, each plays a pivotal role in shaping metal with precision and efficiency. Safety equipment ensures that the skilled hands operating these tools are protected. Regular maintenance and embracing technological advancements further enhance the capabilities of your workshop. As we navigate this intricate landscape, the right tools empower us to transform metal into functional, durable, and innovative products, solidifying our mark in the world of metalworking.
1. What is the most essential tool for starting in sheet metal fabrication?
For beginners, a quality set of hand shears or snips is fundamental. These tools allow you to start cutting and shaping thin sheets of metal manually. They are cost-effective and help in understanding the basics of metal manipulation before progressing to more advanced tools.
2. How does CNC technology benefit sheet metal fabrication?
CNC technology enhances precision and efficiency. It automates cutting, drilling, and forming processes, allowing for complex designs and consistent repeatability. CNC machines reduce manual errors and increase production speed, making them invaluable for high-volume or intricate projects.
3. Why is safety equipment crucial in metal fabrication workshops?
Metal fabrication involves processes that can be hazardous, such as cutting, welding, and handling heavy materials. Safety equipment like gloves, safety glasses, and proper footwear protect workers from injuries. Prioritizing safety also ensures compliance with occupational health regulations.
4. What factors should I consider when choosing metal fabrication tools?
Consider the types of projects, materials used, required precision, production volume, and budget. Also, assess the space available in your workshop and the skill level of your staff. Investing in versatile, quality tools that match your specific needs yields better productivity and product quality.
5. How often should tools and equipment be maintained?
Regular maintenance schedules should be established based on manufacturer recommendations and usage frequency. Daily inspections can catch immediate issues, while weekly or monthly maintenance can address wear and tear. Consistent upkeep ensures tools operate safely and effectively.
6. Can I use the same tools for different types of metals?
While many tools are versatile, some are specifically designed for certain metals or thicknesses. Using the appropriate tool for each metal type ensures better results and prolongs the life of your equipment. Always refer to the tool's specifications and manufacturer guidelines.
7. What is the importance of accurate measuring tools in fabrication?
Accurate measurements are critical to ensuring that parts fit together correctly and function as intended. Precision measuring tools like calipers and micrometers provide the necessary accuracy. Errors in measurement can lead to costly material waste and rework.
By understanding and equipping your workshop with these essential tools, you lay a solid foundation for success in sheet metal fabrication. Emphasizing quality, safety, and continuous improvement will enable you to meet the evolving demands of the industry.
