Special-Shaped Steel Pipes: Advanced Processing Technologies and Diverse Industrial Applications

Definition and Classification of Special-Shaped Steel Pipes

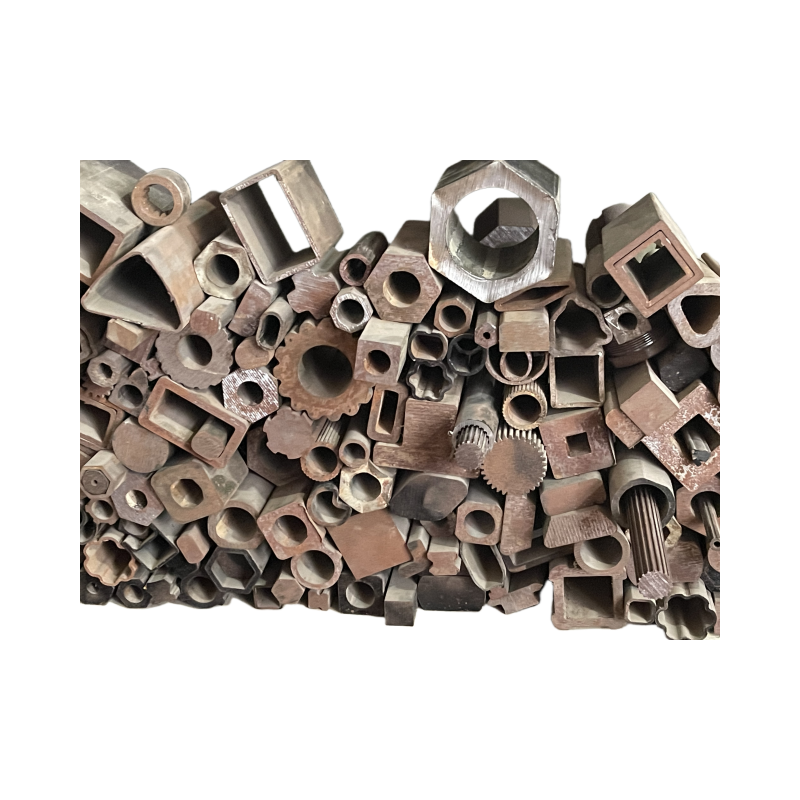

Special-shaped steel pipes are a broad category of steel tubes with non-circular cross-sectional profiles, encompassing a vast array of geometric configurations beyond the standard round pipe. These profiles include square, rectangular, elliptical, flat, semicircular, hexagonal, octagonal, triangular, pentagonal, diamond, star, convex, concave, and various other custom shapes. Based on cross-sectional characteristics, special-shaped pipes are systematically classified into three primary categories: equal-wall-thickness special-shaped pipes, unequal-wall-thickness special-shaped pipes, and variable-diameter special-shaped pipes. This classification enables precise material selection based on specific load requirements and structural applications. The dimensional range of these pipes is extensive, with outer diameters typically spanning from 6mm to 530mm and wall thicknesses ranging from 0.6mm to 200mm, accommodating everything from precision instrumentation components to heavy-duty structural members. Materials commonly used include carbon steels (such as 10#, 20#, 35#, 45#, Q235B), alloy steels (including 16Mn, 20Cr, 40Cr, 15CrMo, 35CrMo, 42CrMo), and stainless steel grades like 304 and 316L, providing versatility across diverse service environments.

Manufacturing Processes: From Cold Drawing to Advanced Forming Technologies

The production of special-shaped steel pipes employs several sophisticated manufacturing methods, with cold drawing being the most widely adopted technique. The cold drawing process involves pulling a pre-formed tube through a precision die at room temperature, progressively reducing its cross-section and shaping it into the desired non-circular profile. This method achieves exceptional dimensional accuracy, with forming precision reaching ±0.1mm, and produces surface finishes as smooth as Ra3.2μm. For welded special-shaped pipes, the manufacturing process typically begins with cold-rolled or hot-rolled strip steel, which is uncoiled, formed through a series of rollers into the target shape, and then welded along the seam. Electric resistance welding (ERW), longitudinal submerged arc welding (LSAW), and spiral submerged arc welding (SSAW) are common welding techniques employed depending on the pipe specifications. Advanced forming technologies also include hot extrusion, which is particularly suitable for producing seamless special-shaped pipes for high-pressure applications, and roll forming, which enables continuous production of complex profiles. For highly specialized requirements, manufacturers employ techniques such as hydroforming for curved special-shaped sections and CNC-controlled forming for precision components. The production process is governed by rigorous standards including GB/T 3094-2012 for cold-drawn special-shaped seamless steel pipes and YB/T 4674-2018 for welded special-shaped steel pipes, ensuring consistent quality and dimensional compliance.

Superior Structural Advantages Over Conventional Round Pipes

Special-shaped steel pipes offer several distinct performance advantages compared to traditional round pipes, making them increasingly preferred in modern engineering design. The primary benefit lies in their enhanced section modulus and moment of inertia, which result from the optimized distribution of material relative to the neutral axis. This geometric efficiency translates into bending and torsional resistance improvements of over 30% compared to round pipes of equivalent cross-sectional area. Consequently, structures incorporating special-shaped pipes can achieve weight reductions of 15% to 30% without compromising strength or stiffness. The superior strength-to-weight ratio makes these pipes particularly valuable in weight-sensitive applications such as aerospace, automotive, and transportation equipment. Furthermore, the tailored cross-sectional geometry allows for direct integration with mating components, eliminating the need for additional adapters or brackets and simplifying assembly processes. For stainless steel special-shaped pipes, the combination of optimized geometry and corrosion resistance delivers抗弯强度 improvements of 25% to 45% compared to standard round tubes. These structural and economic advantages have driven the widespread adoption of special-shaped steel pipes across industries where material efficiency and performance optimization are critical.

Diverse Industrial Applications Across Key Sectors

The versatility of special-shaped steel pipes has established them as essential components across a remarkably broad spectrum of industries. In the construction and architecture sector, special-shaped pipes serve as structural elements in building frameworks, curtain wall supports, bridge components, and decorative features. Square and rectangular hollow sections are extensively used as columns and beams in high-rise buildings, where their high strength-to-weight ratio enables slimmer profiles and increased usable floor space. In mechanical engineering and industrial equipment, these pipes form the structural backbone of machinery frames, conveyor systems, precision equipment assemblies, and non-standard hardware components. Hexagonal and octagonal pipes are commonly specified for tool handles, drive shafts, and precision mechanical parts. The automotive and transportation industries utilize special-shaped pipes for chassis components, roll cages, exhaust systems, and vehicle frames, where the combination of strength, weight reduction, and design flexibility is paramount. In aerospace and defense, high-precision special-shaped pipes are essential for aircraft structural components and propulsion systems. The energy sector employs these pipes in oil and gas transmission, power generation equipment, and heat exchangers. Additional applications span shipbuilding, agricultural machinery, mining equipment, boiler manufacturing, and food processing equipment. The availability of both welded and seamless variants, combined with extensive material options and customization capabilities, ensures that special-shaped steel pipes can be precisely engineered to meet the demanding requirements of virtually any industrial application.
