The combination of steel foundations and columns gives architectural buildings a solid skeleton. From earthquake-resistant skyscrapers to automated warehouse giants, this partnership turns vertical ambition into sustainable reality. Their synergy goes beyond simple reinforcement and gently transfers huge loads, environmental risks and dynamic loads to a soft foundation.
Important properties of post define its role：
Dynamic load control: the racking supports in the warehouse are constantly subjected to loads from forklift trucks. A full finite element analysis is therefore required to optimise the thickness of the base plate, the shape of the reinforcement, and the fixing pattern in relation to vibration and impact loads.
Level 0 corrosion protection: the base plate-column junction is the area most susceptible to corrosion. Hot-dip galvanisation, zinc-rich epoxy fluid to seal cut edges and joints, and non-shrink mortar help protect the steel from the alkaline action of the concrete.
Micron-accurate alignment: Robotic welders guarantee the vertical alignment of columns with respect to foundations with an accuracy of 1 mm/m. Laser-controlled anchor alignment nuts allow on-site adjustment of less than 0.5°, which is essential for precision automated equipment and glass façades.
Concealed force distribution: the base converts the point load into a compressive force that positively affects the substrate. Reinforcing materials under the compression zone, cantilever plates that resist tilting moments, and honeycomb plates that prevent concrete spalling demonstrate the rigour of this concealed technique.
The steel columns and pedestals are precision-machined：

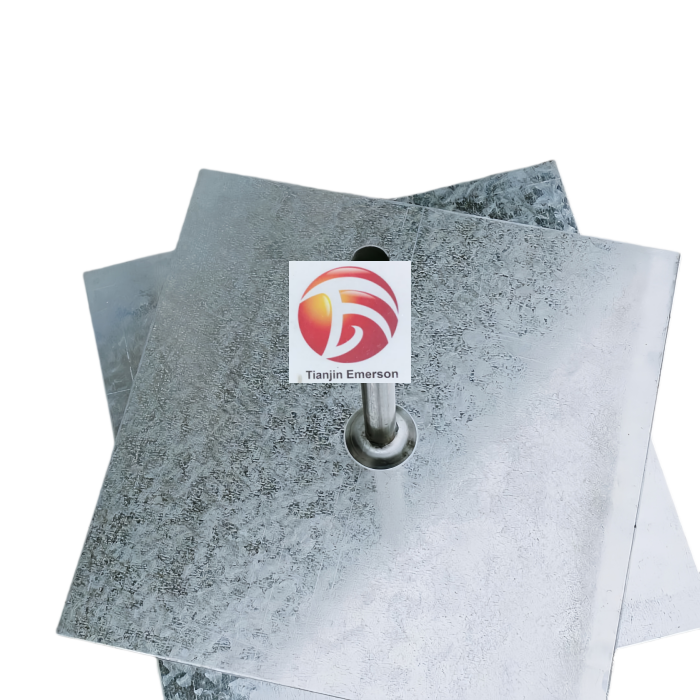

Movable fixing surfaces: The CNC-machined base plates have a flatness of ≤0.1 mm/m², and the bolt flanges are matched and measured to ensure the column is fixed perfectly to the existing foundation.
Stress-absorbing welding: Submerged Arc Welding (SAW) produces reinforcement with minimal heat input. Post-weld vibration removal eliminates hidden deformations before galvanisation.
Joint area protection: Laser-cut PVC rings create a clean cavity measuring 50 mm around the bolts. In underground applications, zinc anodes can be screwed directly into the substrate to protect the primary structure from corrosion.
Intelligent installation: powder-coated markings indicate the tightening sequence. An RFID tag embedded in the anchor head records the torque and installation date for verification throughout the anchor's lifespan.
Why do designed systems last longer than built systems?
Seismic Resistance：Friction dampers welded between the mast and base absorb 35% more seismic energy than rigid joints.
Corrosion Resistance: 75 µm zinc-rich primer, 150 µm epoxy-microcrystalline iron oxide and 75 µm polyurethane topcoat provide a dielectric barrier at the concrete interface.
No changes in the field: pre-drilled shear slots, welded levelling nuts and cast anchor shapes reduce installation time by 70% compared to field-welded solutions.
