Introduction: A Superior Coating System for Demanding Applications

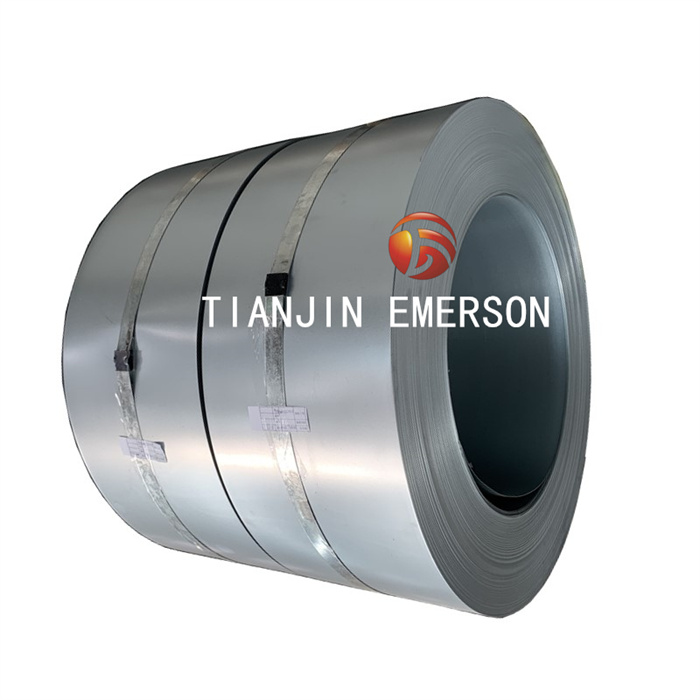

Aluminum-zinc coated steel coils, widely known by the trade name Galvalume, represent one of the most significant advancements in coated steel technology. By combining the barrier protection of aluminum with the sacrificial cathodic protection of zinc, this coating system delivers exceptional corrosion resistance, heat reflectivity, and long-term durability that far exceeds traditional galvanized steel. The unique composition and microstructure of the 55% Al-Zn coating create a material that has become indispensable across the construction, automotive, and industrial sectors, offering a service life that can extend to 25 years or more in normal environments. Understanding the material composition and its influence on performance is essential for engineers, architects, and fabricators seeking to select the optimal coated steel solution for their specific applications.
Chemical Composition: The 55% Al-Zn-Si Formula
The defining characteristic of aluminum-zinc coated steel is its precise chemical composition. The coating alloy consists of approximately 55% aluminum, 43.4% zinc, and 1.6% silicon by weight. This specific formulation is not arbitrary; it represents an optimized balance that leverages the strengths of both primary elements. The coating is applied through a continuous hot-dip process at approximately 600°C, where the steel substrate is immersed in a molten bath of the aluminum-zinc-silicon alloy. The silicon addition serves a critical metallurgical function: it inhibits the formation of a thick, brittle aluminum-iron intermetallic layer during the coating process, thereby enhancing the adhesion and formability of the coating. The chemical composition of the coating is tightly controlled, with typical ranges of 55–58% aluminum, 41–43% zinc, and 1.5–2.0% silicon. This composition is governed by international standards including ASTM A792 (North America) and EN 10346 (Europe), both of which specify the 55% Al, 43.4% Zn, 1.6% Si formulation.
Microstructure: The Dual-Phase Architecture
The performance advantages of aluminum-zinc coated steel are rooted in its unique dual-phase microstructure. When the coating solidifies from the molten state, it develops a distinctive structure consisting of two principal phases: aluminum-rich dendritic areas and zinc-rich interdendritic areas. The aluminum-rich dendrites form an extensive network that provides a robust barrier against corrosion, while the zinc-rich interdendritic regions offer sacrificial cathodic protection at cut edges and scratches. This microstructure resembles a honeycomb pattern, where the aluminum-rich phase dominates the surface, accounting for approximately 80% of the coating area. The silicon present in the coating forms fine particles distributed within the structure, further enhancing the coating's corrosion resistance and formability. This sophisticated microstructural architecture enables the coating to deliver the physical protection and high durability of aluminum while maintaining the electrochemical protection of zinc.
Corrosion Resistance: Superior Protection in Aggressive Environments
The corrosion resistance of aluminum-zinc coated steel significantly outperforms traditional galvanized steel, making it the material of choice for demanding applications. Studies have demonstrated that 55% Al-Zn alloy coating provides two to three times the corrosion resistance of conventional galvanized coatings. In a 20-year atmospheric exposure test, the estimated life of a skyward-exposed 55% Al-Zn alloy coating was found to be 12 times that of a galvanized coating of equal thickness. The corrosion resistance of aluminum-zinc coated steel is primarily attributed to the protective function of aluminum. When the zinc component is worn away, the aluminum forms a dense, adherent layer of aluminum oxide that effectively prevents further internal corrosion. The coating also exhibits scarce reactivity in aggressive environments, with the aluminum-rich dendrites remaining intact even when the zinc-rich interdendritic areas dissolve. This exceptional corrosion resistance translates into extended service life: Galvalume-coated steel can provide over 40 years of protection in rural environments (C2) and 25 years without perforation in industrial zones (C4).
Heat Resistance and Thermal Reflectivity: Performance Under Extreme Conditions
Aluminum-zinc coated steel offers outstanding heat resistance and thermal reflectivity, properties that are particularly valuable in roofing and high-temperature applications. The coating can withstand temperatures up to 315°C without discoloration or degradation, making it suitable for applications such as chimney tubes, ovens, and exhaust systems. Under short-term exposure, it can tolerate temperatures up to 450°C without oxidation. The thermal reflectivity of aluminum-zinc coated steel is approximately twice that of traditional galvanized steel. This high reflectivity reduces heat absorption, keeping buildings cooler in hot climates and lowering energy costs for cooling. This combination of heat resistance and thermal reflectivity has made Galvalume a preferred material for roofing, wall panels, and HVAC systems worldwide.
Fabrication and Formability: Processing Versatility
Despite its superior corrosion resistance, aluminum-zinc coated steel maintains excellent formability and fabricability. The coating exhibits good adhesion and flexibility, allowing the material to be stamped, cut, welded, and bent without compromising the integrity of the protective layer. The coating's excellent adhesion also provides a superior surface for subsequent painting, enabling direct coating without extensive pretreatment. This processing versatility makes aluminum-zinc coated steel suitable for a wide range of manufacturing operations, from roll forming and stamping to welding and assembly. The material is available in a broad spectrum of dimensions, with thicknesses ranging from 0.10mm to 6.00mm and widths from 600mm to 1500mm. Coating weights are designated as AZ (aluminum-zinc) grades, with common specifications including AZ50 through AZ180, corresponding to coating masses from 50 to 180 g/m².
Standards and Specifications: Ensuring Quality and Consistency
Aluminum-zinc coated steel is manufactured to rigorous international standards that ensure consistent quality, performance, and traceability. The primary American standard is ASTM A792/A792M, which covers 55% aluminum-zinc alloy-coated steel sheet in coils and cut lengths. This standard specifies coating composition (55% Al, 43.4% Zn, 1.6% Si), grades (including structural grades from 230 MPa to 550 MPa yield strength), coating weights (AZ50–AZ180), and dimensional tolerances. In Europe, the governing standard is EN 10346, which covers continuously hot-dip coated flat products for cold forming, construction, and high-strength applications. Both standards ensure that Galvalume products meet the stringent requirements for corrosion resistance, heat resistance, and formability demanded by critical applications worldwide.
Applications: Versatility Across Industries
The unique combination of corrosion resistance, heat reflectivity, and formability has established aluminum-zinc coated steel as a preferred material across a wide range of industries. In the construction sector, it is extensively used for metal roofing, wall panels, sound insulation walls, and structural components. In the automotive industry, applications include mufflers, exhaust pipes, fuel tanks, and truck containers. The appliance sector utilizes Galvalume for refrigerator back panels, air conditioner housings, microwave ovens, and electrical cabinets. Agricultural applications include greenhouses, granaries, and livestock buildings. Other applications span heat exchangers, dryers, HVAC ducts, and industrial panels. The material's ability to withstand harsh environmental conditions while maintaining its protective properties has made it particularly valuable in coastal areas where exposure to salt air is increased.
