Custom Sheet Metal Fabrication: Laser Cutting, Bending & Welding Services for Steel Plates

Introduction: The Integrated Approach to Custom Sheet Metal Fabrication

Custom sheet metal fabrication has become the cornerstone of modern industrial manufacturing, enabling the transformation of flat steel plates into precise, functional components tailored to exact specifications. Unlike generic off-the-shelf parts, custom fabrication begins with a detailed engineering review of the client’s drawings, material requirements, and performance criteria. The process integrates three core technologies—laser cutting, CNC bending, and professional welding—into a seamless workflow. This integrated approach ensures dimensional accuracy, structural integrity, and repeatability across production runs. For industries ranging from construction and automotive to energy and food processing, custom sheet metal fabrication delivers components that fit perfectly, perform reliably, and withstand demanding service environments. By consolidating multiple operations under one roof, fabricators reduce lead times, minimize handling errors, and provide single-point accountability for quality.

Precision Laser Cutting for Steel Plates

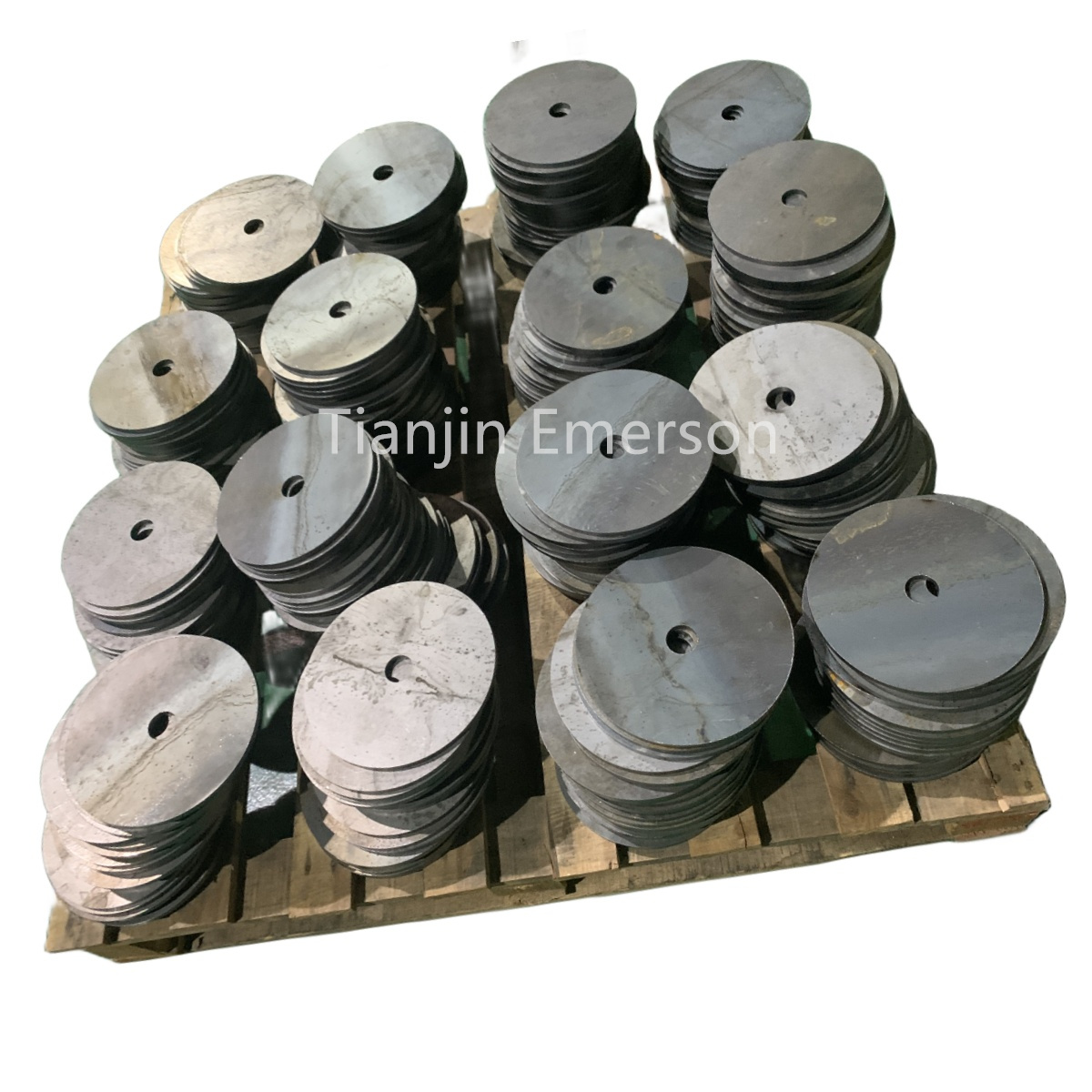

Laser cutting is the first and most critical step in custom sheet metal fabrication. High-power fiber laser systems deliver exceptional precision when processing carbon steel, stainless steel, and alloy steel plates. With positioning accuracies within ±0.1mm and kerf widths as narrow as 0.15mm, laser cutting produces complex profiles, tight-tolerance holes, and intricate contours that would be impossible with conventional shearing or plasma cutting. The process uses oxygen assist gas for carbon steel to achieve high-speed, dross-free cuts, while nitrogen assist gas is employed for stainless steel to produce oxidation-free edges ready for welding. The minimal heat-affected zone preserves the material’s mechanical properties and prevents distortion. CNC nesting software optimizes material utilization, often exceeding 90%, which reduces waste and lowers overall project costs. Whether cutting thin gauge sheets or heavy plates up to 25mm, laser cutting ensures that every blank is dimensionally accurate and ready for forming.

CNC Bending and Forming of Steel Plates

Following laser cutting, CNC press brake bending transforms flat blanks into three-dimensional components. This stage requires precise calculation of springback—the tendency of steel to partially return to its original shape after bending. For carbon steel, springback typically ranges from 0.5 to 2 degrees, while stainless steel exhibits greater springback. Our CNC press brakes use real-time angle measurement and automatic crowning to achieve bend angles within ±0.5 degrees, ensuring consistent part geometry. The V-die opening is selected based on material thickness, generally 6 to 8 times the thickness for carbon steel. Minimum bend radii are respected to prevent cracking: typically 1.0 to 1.5 times thickness for mild steel and 1.5 to 2.5 times for higher-strength alloys. Multi-bend parts are programmed with optimized sequences to avoid tool interference. The result is precise, repeatable formed components such as enclosures, brackets, chassis, and structural supports.

Professional Welding and Assembly

Welding is the joining process that assembles cut and bent components into finished structures. For carbon steel plate fabrication, Gas Metal Arc Welding (GMAW/MIG) is the preferred method due to its high deposition rate, deep penetration, and efficiency. For stainless steel and critical applications, Gas Tungsten Arc Welding (GTAW/TIG) provides clean, spatter-free welds with superior aesthetics and corrosion resistance. All welding is performed by certified welders following qualified Welding Procedure Specifications (WPS) to ensure joint integrity. Fixtures and clamps control distortion, while preheating and interpass temperature management prevent cracking in thicker sections. Post-weld inspection includes visual examination and, where specified, non-destructive testing such as dye penetrant or ultrasonic inspection. The assembled components are then cleaned, deburred, and prepared for surface treatment.

Material Selection and Quality Assurance

The success of custom sheet metal fabrication depends on selecting the right material for each application. Carbon steel plates (ASTM A36, Q235B, S275JR) offer strength and cost-effectiveness for structural parts. Stainless steel plates (304, 316) provide corrosion resistance for chemical, food, and marine environments. Alloy steel plates (4140, A387) deliver high strength and heat resistance for pressure vessels and heavy machinery. Our quality assurance program begins with incoming material verification through mill test reports (MTRs) and continues with in-process dimensional checks and final inspection using coordinate measuring machines (CMMs). Every project is documented for full traceability, ensuring compliance with international standards such as ISO 9001, ASTM, and AWS D1.1.

Applications Across Industries

Custom-fabricated steel plate components serve a vast array of industries. In construction, they form structural brackets, base plates, and connection nodes. In industrial machinery, they become machine frames, guards, and mounting plates. The automotive and transportation sectors utilize laser-cut and bent steel for chassis parts and brackets. Energy and power generation rely on welded assemblies for equipment supports and ductwork. Food processing and pharmaceutical industries specify stainless steel fabrications for hygienic equipment. Agricultural machinery, material handling, and warehouse racking also depend on durable, precision-fabricated steel components. The versatility of laser cutting, bending, and welding makes custom sheet metal fabrication indispensable for modern manufacturing.

Conclusion: Your Single-Source Fabrication Partner

Custom sheet metal fabrication combining laser cutting, CNC bending, and professional welding offers a complete solution for transforming steel plates into high-performance components. By integrating these processes, fabricators achieve superior precision, reduced lead times, and consistent quality. Whether you require a single prototype or full production runs, partnering with an experienced fabrication team ensures that your specifications are met with exacting standards. From material selection to final inspection, every step is controlled to deliver durable, reliable, and cost-effective steel plate components for your most demanding applications.
