I-Beam Dimensions and Applications: A Comprehensive Guide for Structural Engineering

Introduction to I-Beam Dimensional Standards

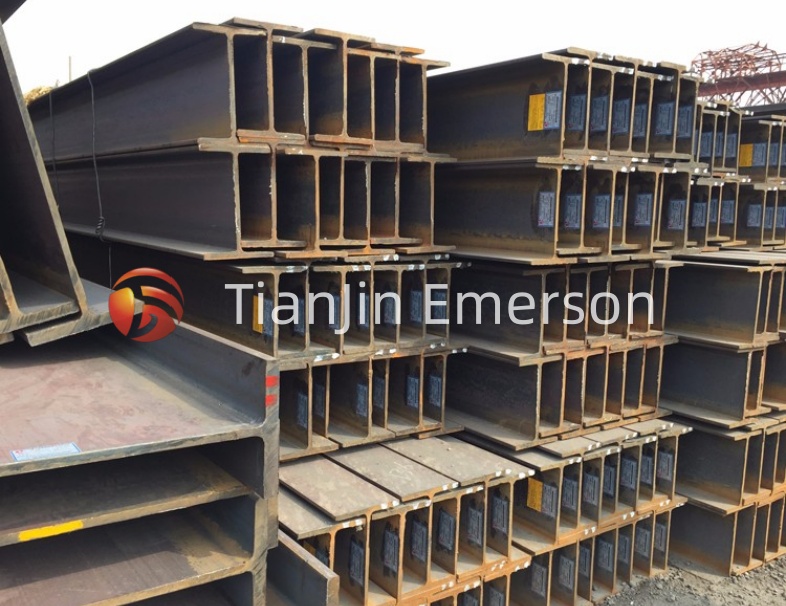

I-beams, also known as Universal Beams or steel girders, are hot-rolled structural steel shapes characterized by their distinctive “I” cross-section, consisting of two horizontal flanges connected by a vertical web. This geometry provides an excellent strength-to-weight ratio, making I-beams highly efficient for resisting bending and shear loads in structural applications. I-beam dimensions are standardized across various international systems to ensure consistency and reliability in construction and engineering projects. In the American system, I-beams are designated by the letter “S” followed by the nominal depth in inches and the weight in pounds per foot—for example, an S12×50 indicates a beam with a 12-inch depth weighing 50 pounds per foot. The beam trade number provides an easy reference for selecting the appropriate size and strength for specific applications. European standards utilize the IPE (I-Profile European) designation, where the number corresponds to the actual beam height in millimeters—IPE 300 is exactly 300 mm high. Chinese standards express dimensions as h×b×d in millimeters, such as“工160×88×6”for a beam with 160 mm height, 88 mm flange width, and 6 mm web thickness, or using model numbers representing height in centimeters, such as工16# for a 160 mm beam.

Common Standard I-Beam Sizes and Dimensional Specifications

I-beams are available in a wide range of standard sizes, from small sections suitable for light framing to massive shapes for heavy industrial construction. American Standard I-beams (S-shapes) typically range from S3×5.7 (3-inch depth, 5.7 lbs/ft) to S24×121 (24-inch depth, 121 lbs/ft) and larger. For example, an S8×15 beam has an 8-inch depth, weighs 15 pounds per foot, with a flange width of 5.00 inches and web thickness of 0.25 inches. Standard lengths for American I-beams are typically 20 feet, 40 feet, and 60 feet. Wide Flange beams (W-shapes), which have wider, parallel flanges compared to standard I-beams, are designated similarly—W4×13 through W24×28 and beyond. The wide flange design provides greater lateral stability and load-bearing capacity. European IPE beams follow a comprehensive metric size range from IPE 80 (80 mm height, 6.0 kg/m) through IPE 600 (600 mm height, 122 kg/m), with intermediate sizes including IPE 100, 120, 140, 160, 180, 200, and continuing up to the largest sections. The flange width of IPE beams is roughly half the height, providing efficient bending resistance. Dimensions and tolerances are governed by standards including EN 10034 for European sections and ASTM A6/A6M for American shapes.

Material Grades and Quality Standards for I-Beams

I-beams are manufactured from various steel grades to meet specific structural requirements. The most common specification for structural steel shapes in the United States is ASTM A992, which covers rolled shapes for use in building framing, bridges, or general structural purposes. Other important standards include ASTM A36 for carbon structural steel, ASTM A572 for high-strength low-alloy structural steel, ASTM A588 for weathering steel with enhanced atmospheric corrosion resistance, and ASTM A709 for bridge applications. European I-beams are typically supplied in grades S235, S275, and S355 per EN 10025-2. Chinese standards commonly specify Q235B and Q345B grades for hot-rolled I-beams. Material selection should consider load requirements, environmental exposure, weldability, and cost. For corrosive environments, weathering steel grades (ASTM A588) offer substantially better atmospheric corrosion resistance than carbon steels.

Diverse Applications Across Construction and Engineering

I-beams are fundamental components in a vast array of structural applications due to their exceptional strength and versatility. In building construction, they serve as primary load-bearing elements in frameworks, support trusses, and floor systems for residential, commercial, and high-rise buildings. The strength and integrity of steel I-beams ensure structural stability and safety. In bridge engineering, I-beams function as main girders, cross-beams, and reinforcement members for both highway and railway bridges. The high strength and excellent welding properties of I-beams make them ideal for bridge construction. Industrial applications include crane rails, platforms, machinery frames, and heavy equipment supports. The transportation sector utilizes I-beams in vehicle chassis, trailer frames, shipbuilding, and agricultural vehicle manufacturing. Infrastructure projects such as power transmission towers, oil drilling platforms, tunnels, and motorway supports depend on I-beams for their structural framework. In mechanical engineering, I-beams provide high stability in cranes and other heavy machinery. Additionally, I-beams are used in rack systems, warehouse racks, and equipment supports in factory settings. Their ability to be fabricated through welding or rolling allows for both standard and custom solutions. When selecting I-beams for a project, engineers must consider load-bearing capacity, span length, material properties, and cost-effectiveness to ensure optimal performance and safety.
