Improving Fabrication Accuracy with Advanced Steel Processing

High-Precision Laser Cutting: Eliminating Variability at the Source

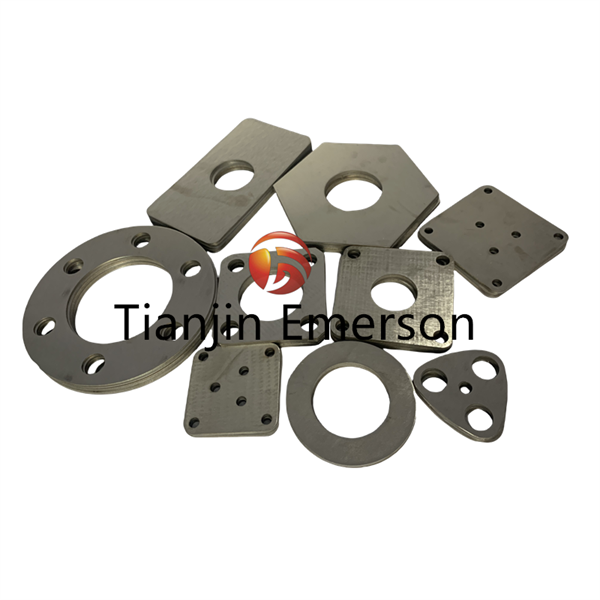

The foundation of machining precision lies in the accuracy of the cutting process, and modern laser cutting technology has fundamentally transformed the standards achievable in sheet metal processing. High-power laser cutting systems (with output power up to 30 kW) deliver exceptional positioning accuracy and repeatability while maintaining clean, narrow cut widths and minimal heat-affected zones. These systems achieve positioning accuracy of ±0.1 mm or better, ensuring that complex contours, fine curves, and high-precision holes fully meet design specifications and eliminating the dimensional drift commonly associated with traditional thermal cutting methods. An advanced gantry design featuring precision-ground helical racks minimizes deflection during heavy-duty processing, while an integrated sheet positioning system automatically aligns the nesting program with the actual workpiece, eliminating manual setup errors. For manufacturers of structural components, brackets, enclosures, and custom assemblies, this cutting precision ensures that subsequent processes start with dimensionally accurate blanks, thereby reducing cumulative tolerance stacking and avoiding costly rework or adjustments later in the production process.

CNC Bending with Springback Compensation: Engineering the Exact Angle

Achieving precise bending angles in press brake operations has long been one of the most challenging aspects of sheet metal fabrication, primarily due to the phenomenon of “springback.” For low-carbon steel, springback typically amounts to 10% to 20% of the bending angle. This means that without proper compensation, a bend programmed for 90 degrees may result in a final angle of 92 degrees or more. Advanced CNC press brakes now incorporate precise springback compensation technology and real-time angle measurement capabilities, thereby eliminating the trial-and-error approach that remains common in many workshops.For high-strength materials such as stainless steel and advanced high-strength steel, the springback phenomenon is even more pronounced; this closed-loop control is critical for maintaining consistent workpiece geometry throughout the entire production process. In addition, an active CNC top-bending system can compensate for calculated machine deformation during the bending process, thereby restoring uniform penetration depth along the entire length of the workpiece and ensuring that the bending angle remains consistent even on long, thick-gauge parts.

Vision-Guided Robotic Welding: Closing the Loop on Joint Integrity

Traditionally, welding accuracy has been limited by inherent variables such as joint preparation, fixtures, and thermal deformation during the welding process. Advanced vision-guided robotic welding systems now address these challenges through real-time weld seam tracking and adaptive control, which dynamically adjusts the welding path to match the actual joint position. These systems utilize structured light sensors and laser triangulation technology to capture the vertical distance profile of the joint, thereby compensating for deviations caused by workpiece variability, thermal deformation, and robotic path errors. Experimental results show that the average absolute offset between the joint and the beam is only 0.14 mm, with a maximum offset of 0.85 mm, fully demonstrating the robustness and precision achievable with modern closed-loop tracking technology. For thick-plate welded assemblies, an intelligent sensing system using a fixed-focus laser sensor has demonstrated tracking errors as low as 0.32 mm on workpieces up to 60 mm thick. This level of precision ensures accurate weld spot positioning, uniform penetration, and minimized heat-affected zones—all of which are critical factors for the structural integrity of various steel assemblies, ranging from mechanical frames to safety-critical components.

Laser-Based Dimensional Inspection: Verifying Accuracy at Production Speed

Thanks to high-speed laser-based dimensional inspection systems, the ability to verify manufacturing precision has kept pace with advancements in cutting, bending, and welding technologies. Modern coordinate measuring machines equipped with laser line-scan technology can measure up to 600,000 individual points per second, with a probe shape error of just 8 micrometers, enabling the capture of complete, high-resolution digital models of parts that are suitable for both surface inspection and detailed feature inspection. These non-contact sensors maintain accuracy comparable to that of contact probes while measuring up to seven times faster than previous-generation products. For the manufacture of large structural components, LiDAR systems provide fast, automated, and precise measurements without the need for adapters, probes, or reference targets, thereby delivering quality control feedback directly to the shop floor. This capability is particularly valuable for complex assemblies that require the integration of multiple bent parts, cut parts, and welded components within tight tolerances. By enabling 100% inspection of critical features (rather than random sampling), these technologies ensure that every manufactured part meets specifications before proceeding to assembly or shipment.

Closed-Loop Process Control: The Digital Thread from Cutting to Assembly

The greatest improvement in manufacturing precision does not stem from any single technology, but rather from the integration of closed-loop process control throughout the entire manufacturing process. Modern manufacturing facilities employ cross-process quality management systems capable of analyzing online process, production, and quality data across the entire process—from cutting and forming to assembly. These systems incorporate configurable sets of expert rules that take into account customer- and order-specific information during quality assessment, enabling real-time adjustments to prevent defects rather than merely detecting them after they occur. Adaptive process control, as demonstrated in applications such as cold rolling and deep drawing, has reduced minimum sheet thickness deviations by 50%, clearly illustrating the improvements in repeatability and quality that data-driven manufacturing can achieve.For custom metal parts manufacturers handling diverse, small-batch orders, integrating digital measurement, real-time feedback, and automatic compensation into cutting, bending, and welding processes not only delivers the repeatable precision traditionally found only in high-volume production but also maintains sufficient flexibility to accommodate frequent design changes. By establishing a digital end-to-end chain from raw materials to finished components, advanced steel processing technologies are transforming manufacturing precision from a mere quality metric into a competitive advantage.
