Robust Design: Precision Steel Kettle for Optimum Hot-dip Galvanising Performance

The hot dip galvanising (HDG) process is the cornerstone of industrial corrosion protection and has been protecting steel structures for decades. At the heart of the efficient operation of HDG is its most critical asset: the galvanising kettle. As specialist manufacturers of high-performance industrial equipment, we design and produce custom-made steel kettles for hot dip galvanising treatments that offer exceptional durability, thermal efficiency, and operational reliability.

Galvanising plays an important role in the production of galvanised pots. Unlike standard containers, they are exposed to extreme conditions, such as continuous immersion in molten zinc at temperatures of typically 445–465 °C (833–869 °F), cyclic thermal stresses during heating and cooling, mechanical stresses from crane operations and workpiece handling, and chemical interaction with zinc and flux residues. Poor manufacturing can lead to catastrophic failures, such as warpage, zinc penetration or structural damage, resulting in costly downtime, safety hazards and zinc loss. This can be avoided through precision engineering.

Manufacture of reactors using specialised materials:

1. Low-silicon kettle grade steel (ASTM A385) can be used, which has excellent resistance to liquid zinc corrosion and thermal fatigue, and minimises the damaging sanderling effect (rapid growth of Zn-Fe alloys).

2. Use of high-temperature alloys (e.g. silicon hardened steels): such high-temperature alloys enhance the stability of reactors operating near 500°C and reduce warping under thermal cycling.

3. Reinforcement of the structure: Reinforcement of the critical stress points with a thick base plate of 100mm or more can resist the hydrostatic pressure of the molten zinc.

Precision manufacturing using advanced technology:

1. Welding method: Submerged Arc Welding (SAW), Narrow Gap Welding and Post Weld Stress Relief.

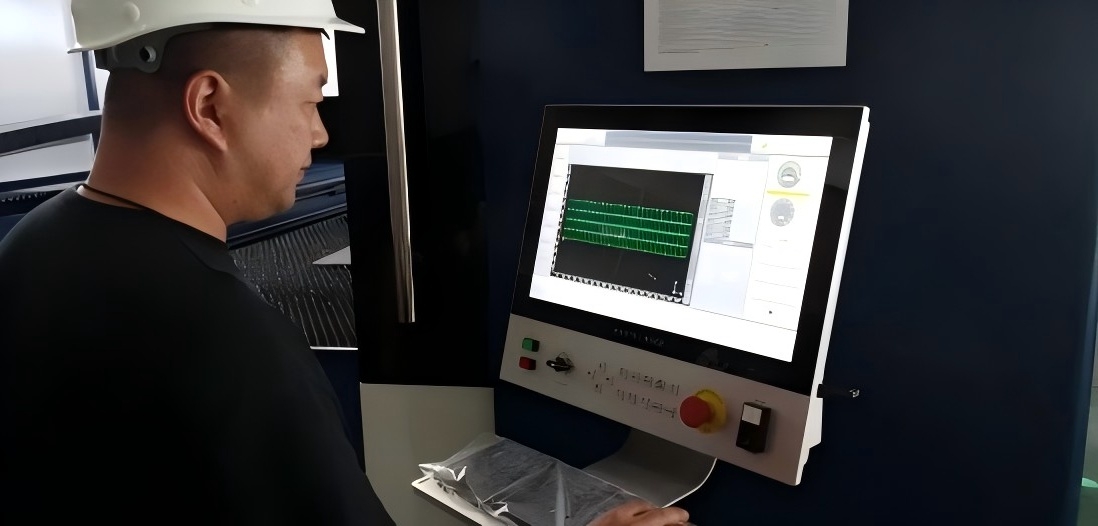

2. Geometric precision: CNC forming technology to ensure a perfect profile;A 20,000V laser cutter for precise cutting to ensure minimum tolerances;An optimised bottom profile (flat, disc or cone) for easy slag management.

3. Thermal management design: Uniform heat distribution;Strategic insulation support systems to reduce the external temperature of the enclosure;Expansion joints engineered to accommodate thermal expansion.

Lower cost, longer life, high return:

1. Service life: ordinary containers have a service life of only 5–8 years, whereas precision-manufactured steel kettles can last for more than 12–15 years.

2. Reduced zinc consumption: Tight seam technology minimises zinc leakage.

3. Reduced energy costs: Efficient thermal design reduces fuel consumption.

4. Reduced downtime: Robust construction helps to avoid unplanned downtime.

In hot dip galvanising, the reactor is both the equipment and the basis of the process. Any compromise on the quality of manufacture can jeopardise safety, productivity and profitability. This is why it is essential to choose a professional team for your hot dip galvanising steel kettle. We can provide any precision manufacturing solution to minimise downtime and reduce operating costs. Please feel free to contact us with your requirements.
