The Steel Pipe-to-Structure Pipeline

Pipe Cutting and Beveling: Preparing Components for Connection

The transition from raw steel pipe to a structural frame begins with precision cutting and end preparation. Structural steel pipes arrive as long hollow sections (circular, square, or rectangular) in standard lengths of 6m, 12m, or custom orders. The first critical link is cutting these tubes to the exact dimensions required by the structural design. CNC cold saws and band saws deliver square, burr-free cuts with length tolerances within ±0.5mm, essential for fit-up in moment-resisting frames and truss assemblies. For connections requiring full-penetration welds, beveling machines grind the pipe ends to standardized groove angles (typically 30° or 37.5°), preparing the joint for subsequent welding. In more advanced workflows, fiber laser cutters not only size the pipe but also create copes, notches, and complex profile cuts that allow one pipe to nest tightly against another at a node. This precise preparation eliminates field adjustments, reduces on-site labor, and ensures that every pipe arriving at the fabrication bay is a ready-to-assemble component.

Welding and Assembly: Creating Rigid Structural Nodes

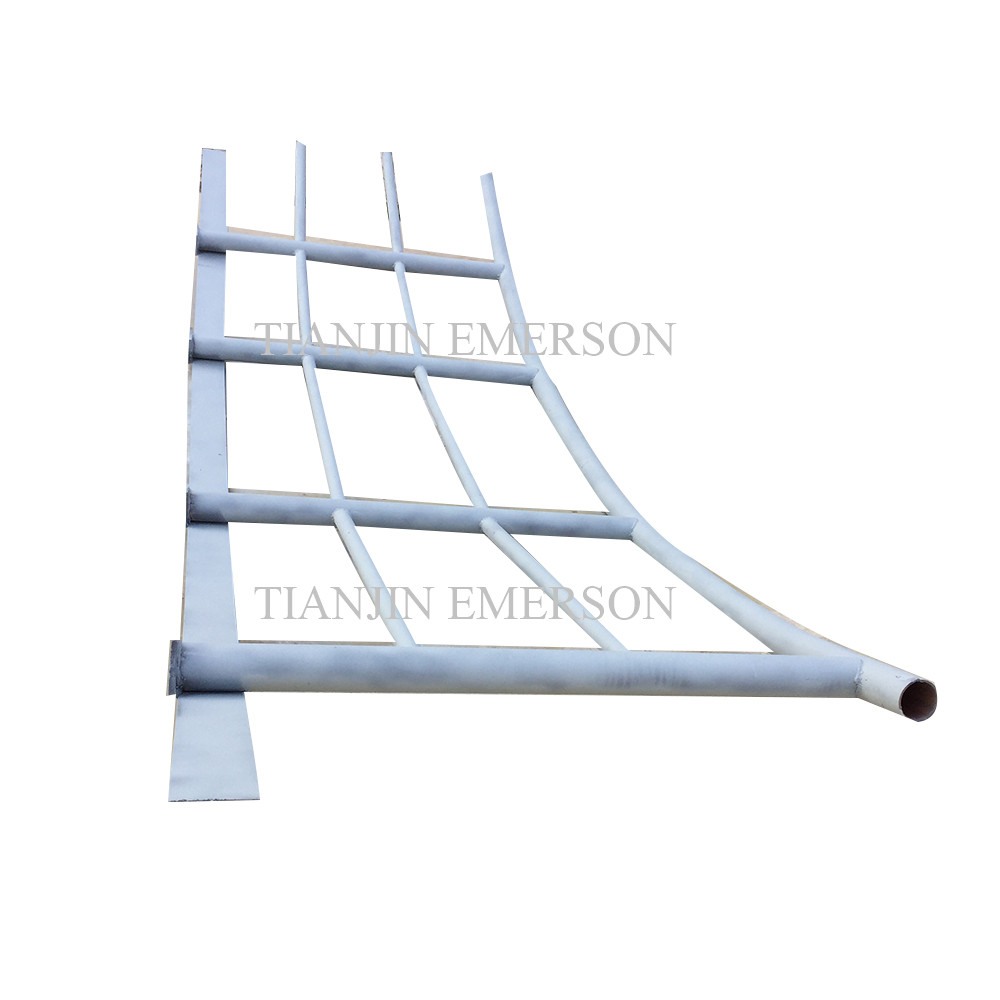

Once prepared, individual pipe segments are assembled into larger structural elements such as trusses, space frames, columns, or lattice girders. The key link is the welded joint: the point where multiple pipes intersect to transfer axial, bending, and torsional loads. For structural integrity, welds must achieve full penetration and meet code requirements (AWS D1.1, EN 1090, or ISO 3834). Submerged arc welding (SAW) is often employed for long, straight seams on built-up tubular members, while gas metal arc welding (GMAW/MIG) or flux-cored arc welding (FCAW) is used for branch connections and node joints. In critical applications—such as offshore platforms or seismic-resistant frames—robotic welding cells with seam tracking ensure consistent weld profiles and heat input, minimizing distortion. Jigs and fixtures hold the pipe assembly in correct spatial alignment during welding, while temporary bracing prevents collapse before the structure becomes self-supporting. The result is a rigid, monolithic node where individual pipes become a single load-carrying entity.

Finishing and Integration: From Subassembly to Field Erection

After welding, the pipe structure undergoes finishing operations that prepare it for its final environment and for integration into the larger building or equipment. First, abrasive blasting removes weld spatter, mill scale, and surface contaminants, achieving SA 2.5 near-white metal cleanliness. Then, a corrosion protection system is applied: hot-dip galvanizing for outdoor or marine exposure, or a three-coat paint system (zinc primer, epoxy intermediate, polyurethane topcoat) for industrial buildings. For stainless steel structures, passivation restores the passive oxide layer. Next, the fabricated subassembly is marked with piece numbers, erection sequence indicators, and alignment marks to guide field crews. Connection details—end plates, bolt holes, or flanges—are machined or drilled to match mating components. Finally, the pipe structure is packaged and shipped to the construction site, where it is bolted or welded to adjacent frames. This link from processed pipe to finished subassembly ensures that the final steel structure is strong, durable, and erected with minimal on-site rework.
