Introduction and Operating Conditions

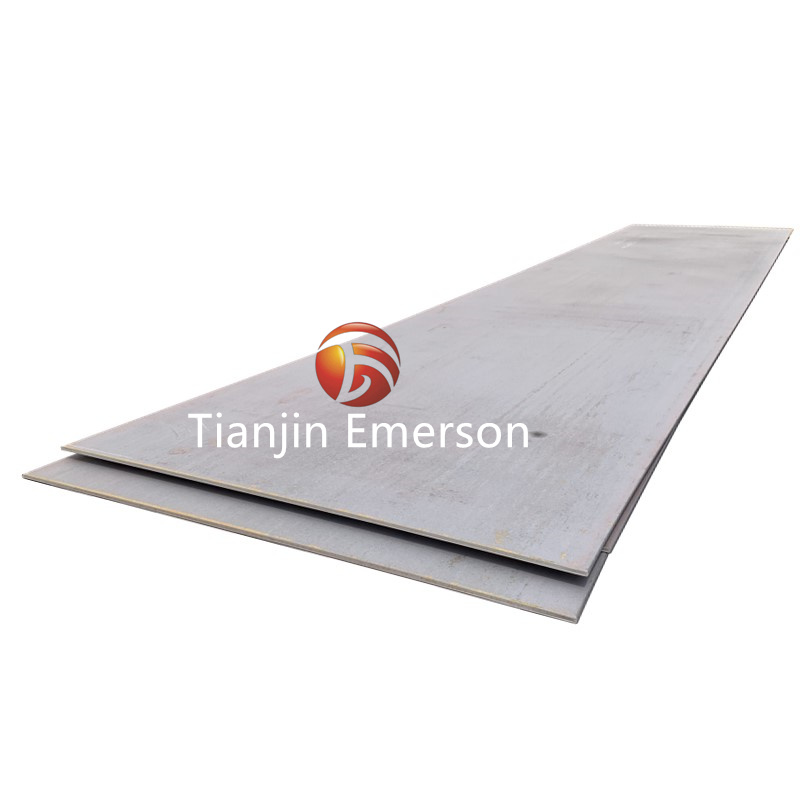

Boiler steel plates, also known as pressure vessel steel plates, are specialized hot-rolled steel products engineered specifically for the construction of boilers, pressure vessels, and heat exchangers. Unlike structural steel designed to bear static loads in buildings, boiler steel plates must endure two extreme conditions simultaneously: massive internal pressure and rapid temperature fluctuations. These plates typically operate at medium temperatures (below 350°C) under high pressure, while also being subject to impact loads, fatigue stresses, and corrosion from water and gases. The demanding service environment requires plates with exceptional strength, toughness, weldability, and resistance to creep and fatigue. Consequently, boiler steel plates are manufactured under strict quality controls with minimal impurities—particularly sulfur and phosphorus—to ensure high purity and reliable performance under extreme conditions.
Classification by Material Type and Temperature Service
Boiler steel plates are classified into two primary categories based on their material composition and operating temperature range: carbon steel plates and alloy steel plates. Carbon steel boiler plates are typically used for moderate-temperature service and are further divided into general carbon steel grades (such as 20g and 22Mng) and carbon-manganese grades designed for elevated temperatures. The widely recognized ASTM A516/ASME SA516 specification covers carbon steel plates for moderate- and lower-temperature service, available in multiple strength grades including Grade 60, Grade 65, and Grade 70. Alloy steel boiler plates are formulated with chromium and molybdenum to withstand higher temperatures and pressures. ASTM A387/ASME SA387 covers chromium-molybdenum alloy steel plates intended primarily for welded boilers and pressure vessels designed for elevated temperature service. ASTM A204/ASME SA204 specifies carbon-molybdenum alloy steel plates available in Grades A, B, and C. Chinese standard GB/T 713 categorizes boiler steel into room/medium-temperature carbon-manganese steels (20g, 22Mng) and high-temperature chromium-molybdenum steels (15CrMog, 12Cr1MoVg). Additional alloy grades include 13MnNiMoR and 15CrMoR for demanding pressure vessel applications.
Key International Standards and Specification Systems
Boiler steel plates are manufactured according to rigorous international standards that define chemical composition, mechanical properties, testing methods, and dimensional tolerances. The most widely adopted standards include American ASTM/ASME specifications, European EN 10028, and Chinese GB/T 713.
The ASTM/ASME system provides a comprehensive framework for boiler and pressure vessel steels. ASTM A20/A20M serves as the general requirements specification for steel plates for pressure vessels, outlining testing procedures, permissible dimensional variations, quality requirements, and marking. ASTM A516/ASME SA516 is the predominant carbon steel specification for moderate- and lower-temperature service. ASTM A515/ASME SA515 covers carbon-silicon steel plates for intermediate- and higher-temperature service in welded boilers. ASTM A387/ASME SA387 specifies chromium-molybdenum alloy plates for elevated-temperature service. ASTM A203/ASME SA203 covers nickel alloy steel plates for low-temperature applications.
The European EN 10028 standard is divided into multiple parts covering different material types. EN 10028-2 specifies non-alloy and alloy steels with specified elevated temperature properties; P355GH is a widely used grade under this standard, known for its good high-temperature performance and excellent mechanical stability. EN 10028-3 covers fine-grain steels for low-temperature service; EN 10028-4 addresses nickel alloy steels; and EN 10028-5 and EN 10028-6 cover high-strength structural steels for pressure vessels.
The Chinese GB/T 713 standard specifies boiler and pressure vessel steel plates, covering grades including Q245R, Q345R, Q370R, and advanced grades like 19Mng and 22Mng developed for subcritical boiler requirements.
Critical Material Properties and Performance Requirements
Boiler steel plates must satisfy stringent material property requirements to ensure safe and reliable operation under extreme conditions. High strength is essential to withstand immense internal pressure from steam, gases, or liquids, preventing plastic deformation or catastrophic bursting. Yield strength and tensile strength are specified for each grade, with typical values ranging from 235 MPa for lower grades to over 485 MPa for Grade 70 steel.
Excellent toughness and impact resistance are critical, particularly at low temperatures. ASTM A516 Grade 70 offers excellent notch toughness for service below ambient temperature. Impact testing requirements vary by grade and thickness, with minimum impact energy values specified for temperatures as low as -46°C.
Superior weldability is essential, as boiler and pressure vessel components are typically assembled through welding. Low carbon equivalent values minimize the risk of hydrogen-induced cracking in the heat-affected zone. For chrome-molybdenum grades, preheating and post-weld heat treatment are typically required to prevent cracking and ensure proper mechanical properties.
Creep resistance is critical for plates exposed to elevated temperatures over extended periods. The ASTM A387/A387M standard specifically addresses creep-strength enhanced ferritic steels for high-temperature service. Corrosion resistance is equally important, as boiler plates are exposed to water, steam, and potentially corrosive gases. High purity with minimal sulfur and phosphorus content helps prevent pitting and stress corrosion cracking.
Dimensional availability spans a wide range: thickness typically from 3mm to 600mm, widths from 1200mm to 4200mm, and lengths up to 18,000mm.
Major Industrial Applications and End-Use Sectors
Boiler steel plates are indispensable materials across numerous heavy industries where high-pressure, high-temperature containment is required. In the power generation sector, these plates are used to fabricate boiler drums, steam drums, superheater headers, and pressure parts for thermal power plants, nuclear reactors, and waste-to-energy facilities. The demanding conditions of supercritical and ultra-supercritical boilers require advanced grades like 19Mng and 22Mng.
In the petrochemical and chemical industries, boiler plates are essential for manufacturing reactors, heat exchangers, distillation columns, separators, storage tanks (including spherical tanks for LPG and LNG), and ammonia synthesis towers. Chrome-molybdenum grades like 15CrMoR and 13MnNiMoR are specified for high-temperature hydrogen service in refinery equipment.
The oil and gas sector relies on boiler steel plates for pressure vessels in upstream, midstream, and downstream operations, including separators, knockout drums, and gas processing equipment. These plates also serve in hydroelectric power for high-pressure penstocks and turbine spiral cases.
Beyond these primary sectors, boiler plates are widely used in pharmaceutical and food processing equipment requiring sanitary pressure vessels, as well as in shipbuilding for auxiliary boilers and pressure-containing components. The nuclear industry specifies specialized grades, including 9% nickel alloy steel plates, for reactor pressure vessels and containment structures.
Material Selection Guidelines and Best Practices
Selecting the appropriate boiler steel plate requires careful consideration of service temperature, design pressure, corrosion environment, and fabrication requirements. For moderate and lower-temperature service (below approximately 350°C), carbon steel plates such as ASTM A516 Grade 70 or Chinese Q245R are typically sufficient. For elevated-temperature service, chromium-molybdenum alloy steels such as ASTM A387 Grade 11, 22, or 91 are specified. The creep-strength enhanced ferritic steels (CSEF) are particularly suited for ultra-supercritical boiler applications where temperatures exceed 600°C.
For low-temperature applications (below -20°C), nickel alloy steels such as ASTM A203 or 9% nickel steel provide the necessary toughness and resistance to brittle fracture. When welding is involved, low-carbon variants (e.g., 304L, 316L) are recommended for austenitic stainless steel plates to prevent sensitization and intergranular corrosion. Proper welding procedures, including preheating and post-weld heat treatment where required, are essential to maintain material properties. Quality assurance should include mill test reports, non-destructive examination, and, where specified, third-party inspection.
