From Round Steel To Precision Steel Shaft: Processing Operations And Surface Treatment

Material Selection and Incoming Inspection

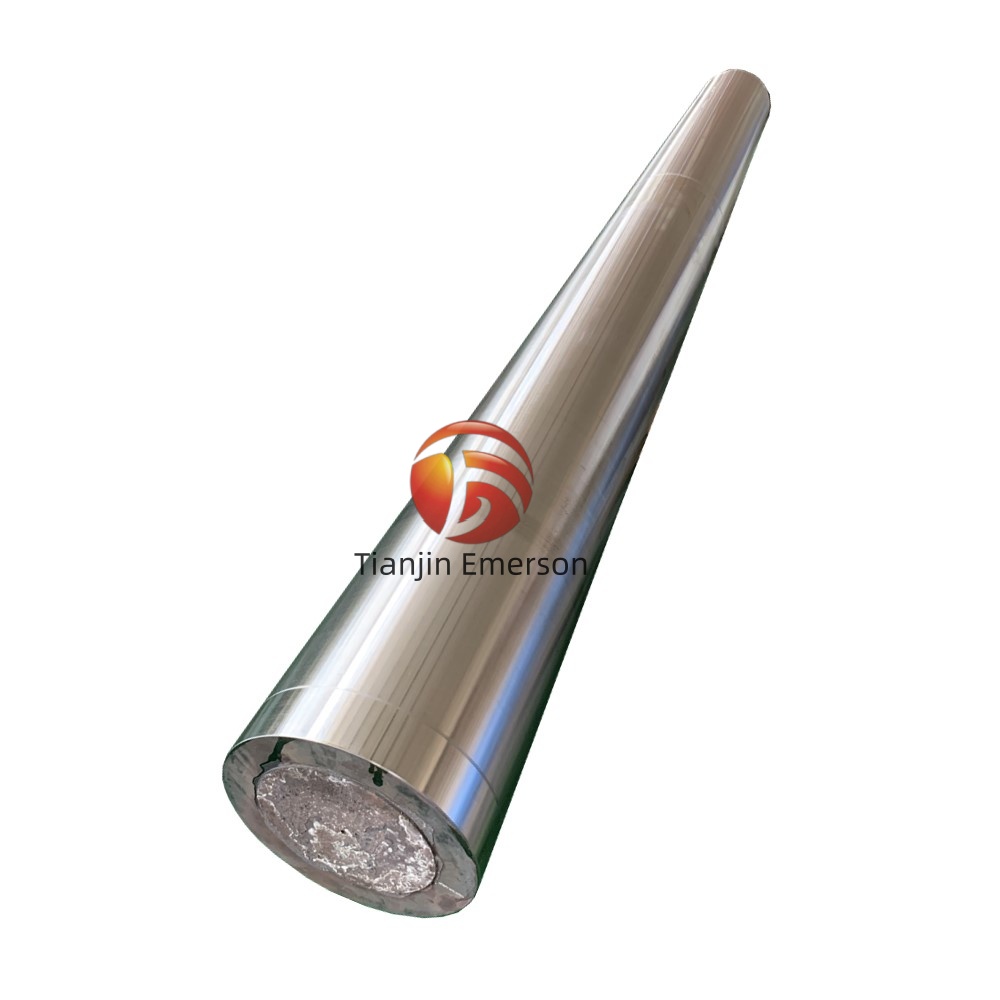

The transformation of round steel into a precision steel shaft begins with the careful selection of raw material and rigorous incoming inspection. Depending on the application, the base material may be low-carbon steel, medium-carbon steel such as AISI 1045, alloy steel such as 4140 or 42CrMo, or stainless steel grades including 304, 316, and 17-4PH. The round steel is supplied in hot-rolled, cold-drawn, or forged condition, and its chemical composition, hardness, and microstructure must be verified against mill test reports. Ultrasonic testing or magnetic particle inspection may be performed to detect internal defects such as cracks, inclusions, or porosity that could compromise the final shaft. Diameter, straightness, and surface condition are also checked to ensure the material is suitable for subsequent machining. This first stage is critical because the quality of the finished steel shaft is fundamentally limited by the quality of the incoming round steel.

Cutting and Billet Preparation

Once the round steel has been approved, it is cut to the required billet length using band saws, circular saws, or abrasive cutting machines. The cut length must account for machining allowance, heat treatment distortion, and clamping requirements during turning. For large-diameter shafts, the billet may be sheared or flame-cut, but saw cutting is preferred for precision shafts because it produces clean, square ends and minimizes material waste. After cutting, the billet ends are often chamfered or faced to facilitate centering and chucking. If the shaft requires a specific grain flow or improved mechanical properties, the billet may be heated and forged or upset before machining. In some production routes, the round steel is directly machined without forging, particularly when the shaft is small or when the material is already in a cold-drawn or turned condition.

Heat Treatment and Microstructure Control

Heat treatment plays a decisive role in determining the mechanical properties of the final steel shaft. Depending on the steel grade and service requirements, the billet or semi-finished shaft may undergo normalizing, annealing, quenching and tempering, or case hardening. For medium-carbon and alloy steels, quenching and tempering is commonly used to achieve a balance of high tensile strength, yield strength, and impact toughness. For stainless steels, solution annealing may be applied to restore corrosion resistance and relieve stresses. Heat treatment must be performed in controlled furnaces with accurate temperature and atmosphere regulation to prevent decarburization, oxidation, and distortion. After heat treatment, the shaft is often straightened and inspected for hardness and microstructure. Inadequate heat treatment can lead to soft spots, cracking, or insufficient fatigue resistance, making this stage essential for demanding applications such as automotive shafts, pump shafts, and hydraulic rods.

CNC Turning and Machining Operations

The heat-treated or normalized round steel then enters the machining stage, beginning with rough turning. On a CNC lathe or turning center, the shaft is faced, centered, and turned to remove scale, decarburized layer, and excess material. Rough turning establishes the basic diameter and length while leaving a uniform allowance for semi-finishing and finishing operations. CNC machining ensures repeatable accuracy, and modern turning centers can perform multiple operations—turning, grooving, threading, drilling, and boring—in a single setup. For shafts with keyways, flats, splines, or cross-holes, CNC milling machines or mill-turn centers are used to complete these features. The machining process must control cutting speed, feed rate, depth of cut, and coolant application to avoid work hardening, tool wear, and thermal distortion, especially when machining stainless steel and alloy steel.

Grinding and Precision Finishing

For many steel shafts, grinding is the final machining operation that achieves the required dimensional accuracy and surface finish. Cylindrical grinding, centerless grinding, or CNC grinding is used to bring the shaft to its final diameter and to correct any residual distortion from heat treatment or turning. Grinding also improves roundness, straightness, and surface roughness, which are critical for bearing seats, seal surfaces, and sliding fits. After grinding, the shaft may be polished, buffed, or superfinished to reduce friction and improve corrosion resistance. Surface roughness values as low as Ra 0.2 μm can be achieved for precision shafts. The grinding process must be carefully controlled to avoid burning, cracking, or inducing residual stresses that could affect fatigue life.

Surface Treatment and Coating Technologies

Surface treatment is essential for enhancing the wear resistance, corrosion resistance, and fatigue strength of steel shafts. Common surface treatments include chrome plating, nitriding, induction hardening, and coating. Chrome plating deposits a hard, wear-resistant layer that also provides corrosion protection and reduces friction. Nitriding introduces nitrogen into the surface, creating a hard case without dimensional distortion. Induction hardening selectively hardens the surface of the shaft while maintaining a tough core. For stainless steel shafts, passivation restores the passive oxide layer and maximizes corrosion resistance. Additional treatments such as black oxide, zinc plating, or ceramic coatings may be specified depending on the application. The choice of surface treatment depends on the service environment, load conditions, and required service life.

Quality Inspection and Final Delivery

The finished steel shaft must pass comprehensive inspection before delivery. Dimensional inspection verifies diameter, length, runout, concentricity, and straightness using micrometers, calipers, dial indicators, and coordinate measuring machines. Surface roughness is measured with profilometers. Hardness testing confirms that heat treatment has achieved the specified properties. Non-destructive testing such as ultrasonic inspection, magnetic particle inspection, or dye penetrant testing may be required for critical shafts. Mechanical testing, including tensile testing and impact testing, may be performed on representative samples. Finally, the shaft is cleaned, protected with anti-rust oil or packaging, and marked with identification for traceability. The complete processing operation—from round steel to precision steel shaft—combines material science, precision engineering, and rigorous quality control to deliver components that meet the demanding requirements of automotive, industrial, hydraulic, and aerospace applications.
