Improving Steel Fabrication Accuracy with CNC Technology

Precision Laser Cutting: Eliminating Dimensional Variability

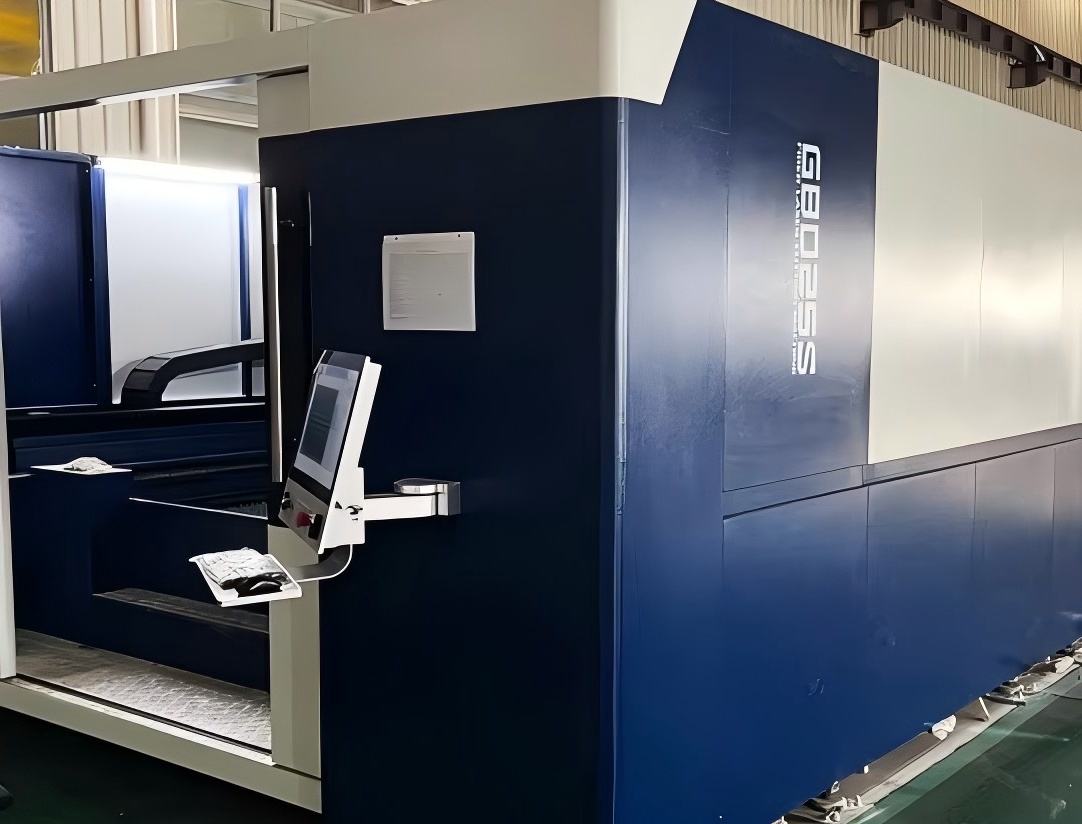

CNC laser cutting systems have revolutionized the accuracy of steel plate and sheet processing by replacing manual layout and mechanical shearing with digitally controlled thermal profiling. High-power fiber lasers, guided by CAD-generated toolpaths, achieve positioning tolerances of ±0.1mm and kerf widths as narrow as 0.15mm, eliminating the cumulative errors inherent in manual marking and punching. The closed-loop control of assist gas pressure, focal position, and cutting speed ensures that complex geometries—holes, slots, and contours—are reproduced identically across every part in a production run. For carbon steel, oxygen-assist cutting delivers clean, square edges without dross; for stainless steel and aluminum, nitrogen-assist produces oxidation-free cuts ready for welding. Real-time height sensing adjusts nozzle standoff to compensate for material warpage, while automatic nozzle cleaning maintains consistent beam quality. By eliminating human measurement errors and compensating for material variability, CNC laser cutting ensures that first-article parts match drawings precisely, reducing downstream rework and assembly fit-up issues.

CNC Press Brake Forming: Mastering Springback and Bend Consistency

Bending accuracy in CNC press brakes has advanced from operator-dependent guesswork to closed-loop angle control. Modern CNC press brakes are equipped with laser or camera-based angle measurement systems that monitor the bend angle in real time during the forming stroke. The CNC controller compares the measured angle to the target, automatically compensating for material springback—the elastic recovery that causes a 90-degree programmed bend to open to 92 degrees or more. This adaptive forming adjusts ram depth on the fly, achieving bend angle tolerances within ±0.5 degrees. In addition, advanced tooling libraries store parameters for different material grades and thicknesses, while offline programming software simulates bend sequences to avoid collisions and optimize part handling. For high-strength steels and stainless alloys, CNC systems also control crowning—the machine deflection compensation that ensures uniform bend angles across the full length of a long workpiece. As a result, fabricators achieve first-part accuracy, eliminating the traditional trial-and-error setup that consumed significant time and material.

Integrated CAD/CAM Workflows and Welding Robotics

The full potential of CNC technology is realized when design and fabrication are linked through integrated CAD/CAM software. Engineers create 3D models of steel components—brackets, enclosures, frames—and the software automatically generates CNC code for laser cutting, press brake bending, and even robotic welding. This digital thread ensures that tolerances defined in design are carried through to finished parts without manual reinterpretation. For welding, CNC-controlled robotic cells equipped with seam-tracking vision systems follow the exact joint geometry, maintaining consistent arc travel speed and filler metal deposition. Adaptive welding programs adjust weave width and voltage based on real-time gap measurement, compensating for minor variations in fit-up. Post-weld dimensional checks on coordinate measuring machines (CMMs) confirm that assemblies meet print specifications. By integrating cutting, bending, and welding under a unified CNC control framework, fabricators reduce dimensional drift, minimize rework, and deliver steel components that fit perfectly in final assembly.
