Laser Cutting And Bending of Carbon Steel Plates: A Professional Fabrication Guide

Introduction: The Foundation of Modern Metal Fabrication

Carbon steel plates are among the most widely used materials in industrial manufacturing, valued for their excellent strength, weldability, and cost-effectiveness. However, transforming these plates into precise, functional components requires advanced fabrication technologies. Among these, laser cutting and CNC bending stand out as the two most critical processes for producing high-quality carbon steel parts. Laser cutting delivers exceptional precision and edge quality, while CNC bending transforms flat blanks into complex three-dimensional geometries. Together, these technologies form the backbone of sheet metal fabrication for industries ranging from construction and automotive to machinery and energy. Understanding the technical principles, process parameters, and quality considerations for both operations is essential for engineers, fabricators, and procurement professionals seeking to optimize production efficiency and component performance.

Laser Cutting of Carbon Steel Plates: Principles and Parameters

Laser cutting uses a focused, high-power beam to melt, burn, or vaporize metal along a programmed path. For carbon steel plates, fiber laser systems are the preferred technology due to their high energy efficiency, excellent beam quality, and low maintenance requirements. The cutting process typically employs oxygen as the assist gas, which reacts exothermically with the molten iron to enhance cutting speed and produce clean, dross-free edges. For thicknesses up to 25mm, laser cutting achieves positioning accuracies within ±0.1mm and kerf widths as narrow as 0.15mm, minimizing material waste and eliminating secondary finishing. The heat-affected zone (HAZ) is typically less than 0.5mm, preserving the material's mechanical properties. Key parameters include laser power (typically 2kW to 12kW), cutting speed (which decreases as thickness increases), focal position (set slightly below the surface for thick plates), and gas pressure (0.8 to 2 bar for oxygen cutting). Modern CNC systems with automatic nesting software optimize material utilization, achieving yields above 90% while maintaining consistent quality across production runs.

CNC Bending of Carbon Steel Plates: Precision Forming Technology

CNC bending, performed on press brakes, transforms flat laser-cut blanks into three-dimensional components by applying controlled force through a punch and die set. For carbon steel plates, the process must account for springback—the elastic recovery of the material after the bending force is released. Springback for mild steel typically ranges from 0.5 to 2 degrees, depending on material thickness, bend radius, and grain direction. To compensate, modern CNC press brakes use real-time angle measurement systems and automatic crowning to achieve bend angle tolerances within ±0.5 degrees. The V-die opening should generally be 6 to 8 times the material thickness for carbon steel, while the minimum inside bend radius should be at least equal to the material thickness to prevent cracking. For multi-bend parts, the bend sequence must be carefully programmed to avoid tool collision and ensure dimensional accuracy. High-tonnage press brakes, up to 1,000 tons or more, are required for bending thick carbon steel plates, with tonnage calculated based on material thickness, bend length, and die opening.

Material Selection and Thickness Considerations

The selection of carbon steel grade and thickness directly influences laser cutting and bending outcomes. Common grades include ASTM A36, Q235B, and S275JR for general structural applications; ASTM A572 Grade 50 and Q345B for higher-strength requirements; and ASTM A516 for pressure vessel service. Thickness affects both processes significantly. For laser cutting, cutting speed decreases and edge quality deteriorates as thickness increases; plates up to 25mm are routinely cut, while thicknesses beyond 50mm may require alternative methods such as plasma or oxy-fuel cutting. For bending, thicker plates require higher tonnage, larger bend radii, and more careful springback compensation. The minimum bend radius for carbon steel is typically 1.0 to 1.5 times the material thickness for mild steel, and 1.5 to 2.5 times for higher-strength grades. Grain direction also matters: bending perpendicular to the rolling direction is preferred to minimize cracking risk. By matching material grade and thickness to the specific application, fabricators can optimize both cutting and bending efficiency.

Quality Control and Inspection

Quality control is integrated throughout the laser cutting and bending workflow. After cutting, dimensional inspection verifies part dimensions against engineering drawings using calipers, micrometers, or coordinate measuring machines (CMMs). Edge quality is assessed for dross, roughness, and taper, with acceptance criteria defined by standards such as ISO 9013. After bending, angle measurement tools, protractors, or laser angle sensors verify bend angles, while flange lengths and hole positions are checked to ensure proper fit-up. First-article inspection (FAI) is performed at the start of production to validate the entire process, and in-process checks are conducted periodically. For critical applications, non-destructive testing such as magnetic particle inspection or dye penetrant testing may be specified to detect surface cracks. Proper documentation, including material certifications and inspection reports, ensures full traceability and compliance with industry standards.

Applications Across Industries

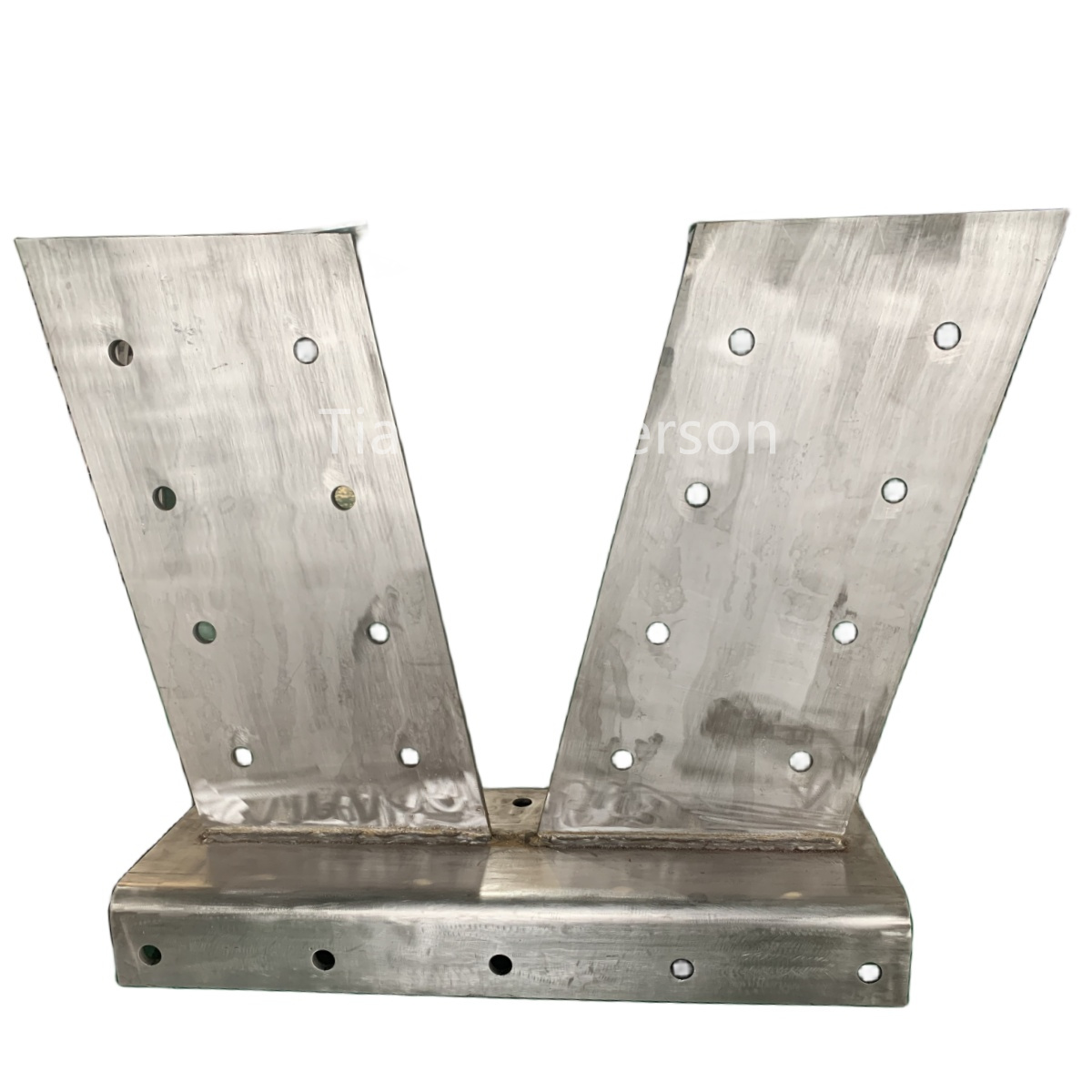

Laser-cut and CNC-bent carbon steel plates serve a vast array of industries. In construction, they form structural brackets, base plates, gusset plates, and connection nodes for steel frames and bridges. In industrial machinery, they become machine guards, frames, supports, and mounting plates. The automotive and transportation sectors utilize them for chassis components, brackets, and trailer parts. Energy and power generation facilities rely on them for equipment supports, platforms, and ductwork. Agricultural equipment, material handling systems, and warehouse racking also depend on these fabricated components. The combination of laser cutting's precision and bending's forming capability enables the production of complex, high-strength parts that meet demanding tolerances and performance requirements.

Conclusion: Integrated Fabrication for Superior Results

Laser cutting and CNC bending of carbon steel plates represent a powerful combination of precision and versatility. When properly executed with optimized parameters, quality materials, and rigorous inspection, these processes deliver components that are dimensionally accurate, structurally sound, and ready for immediate assembly. For fabricators and end users alike, understanding the technical nuances of each process is essential for achieving optimal results. As manufacturing technologies continue to advance, integrated laser cutting and bending systems will remain at the forefront of custom metal fabrication, enabling innovation across every industrial sector.
