Material and Thickness of Cold Rolled Coils: Key Variables Determining Industrial Applications

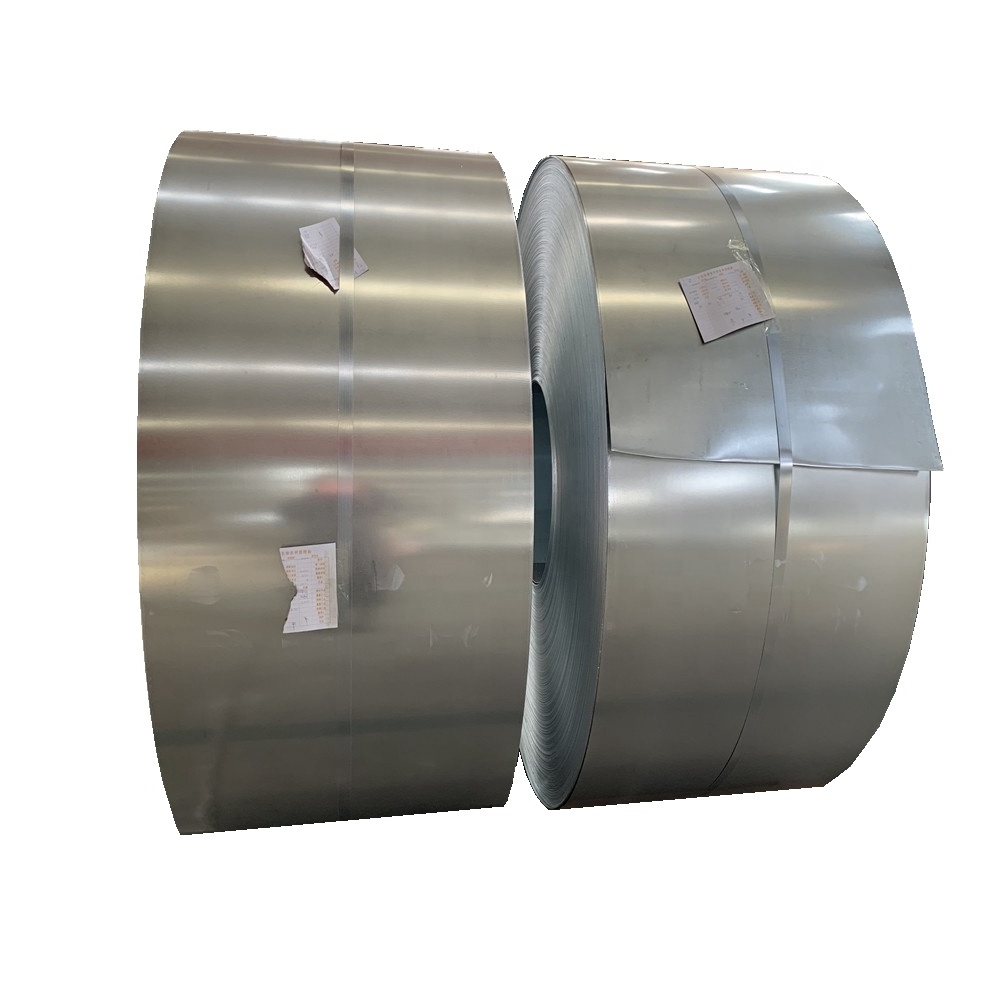

Cold rolled coils serve as fundamental industrial materials, with their material grade and thickness specifications acting as the core variables that determine the final product's performance and application scenarios. Compared to hot rolled coils, cold rolled coils are processed at room temperature without producing iron oxide scale, resulting in significantly superior surface quality, dimensional accuracy, and mechanical properties. Their thickness can be reduced to approximately 0.18mm, offering high surface finish and excellent dimensional precision (thickness tolerance ≤0.03mm). These characteristics make cold rolled coils widely applicable across automotive manufacturing, home appliances, construction, aerospace, precision instruments, and numerous other fields. Understanding the influence of different material grades and thickness specifications on practical applications is the critical prerequisite for material selection and process optimization.

Material Classification and Grade Systems: From Commercial Quality to Deep Drawing Steels

The material grade system of cold rolled coils covers the complete spectrum from general-purpose applications to complex deep drawing requirements. According to standards such as GB/T 5213, JIS G3141, and EN 10130, common grades include: SPCC (Japanese standard, commercial quality cold-rolled carbon steel), DC01-DC06 (European standard, with higher numbers indicating superior formability), ST12-ST15 (German standard), and Q195A-Q235A series. Among these, SPCC and DC01 are suitable for general forming and bending operations; SPCD and DC03 are designed for stamping applications; SPCE and DC04 and above are specifically engineered for deep drawing and complex stretch-forming parts, such as automotive body panels and appliance inner liners. The evolution of cold rolled steel materials has progressed through three generations: first-generation rimmed steel, second-generation aluminum-killed steel, and third-generation interstitial-free (IF) steel. The third-generation materials feature lower yield points and higher plastic strain ratios, making them the preferred choice for today's high-end stamping applications.

Thickness Specifications and Dimensional Precision: A Gradient Distribution from Ultra-Thin to Conventional

Cold rolled coils are available in a thickness range of 0.2mm to 4.0mm, with widths from 600mm to 2000mm and lengths from 1200mm to 6000mm. Specifications below 0.20mm require customized arrangements, while standard ordering thickness groups cover 0.35-0.45mm, 0.50-0.60mm, 0.70-0.80mm, and up to 3.0mm in multiple gradients. Advanced domestic production lines have achieved thickness precision within ±0.02mm for ultra-wide cold-rolled automotive sheets. Even subtle variations in thickness directly influence the material's yield strength, tensile strength, and elongation. For DC01 cold-rolled steel, the yield strength ranges from 220-260 N/mm² and tensile strength from 290-360 N/mm² at thicknesses of 0.60-1.20mm. SPCC exhibits yield strength ≥235 MPa, tensile strength 375-450 MPa, and elongation ≥26%. As thickness decreases, the mechanical property requirements per unit area become more stringent, and processing difficulty correspondingly increases.

Synergistic Effects of Material and Thickness: Differentiation in Formability

Material grade and thickness specifications jointly determine the formability characteristics of cold rolled coils. Commercial quality grades (SPCC, DC01, Q235) are suitable for simple bending, shallow stamping, and general structural components, with thickness primarily concentrated in the 0.5-3.0mm range. As thickness increases, the material's adaptability to bending and stamping operations varies significantly: thin-gauge materials (<0.5mm) are easy to form but require springback control; medium thickness (0.5-2.0mm) represents the primary range for stamping operations; thick-gauge materials (>2.0mm) require higher forming forces and may involve hot forming processes. Deep drawing steels (SPCE, DC04 and above) require materials with low yield points, high elongation, and excellent plastic strain ratios, with thickness typically concentrated in the 0.6-2.0mm range to meet the forming requirements of complex stretch-drawn parts such as automotive body panels and appliance liners. Cold-rolled original coils, due to work hardening effects, exhibit increased strength and hardness with reduced toughness and formability, and consequently have poor stamping performance. Therefore, they must undergo annealing treatment before delivery to eliminate internal stresses and work hardening, restoring their formability.

Precision Matching of Application Scenarios: Engineering Selection of Material and Thickness

Different material grades and thickness specifications correspond to distinct application scenarios. The automotive industry represents the largest market for cold rolled coils, accounting for 35.60% of market share. Automotive body outer panels, inner panels, and structural components demand extremely high surface quality and stamping performance, predominantly utilizing deep drawing grades such as SPCE, DC04-DC06, with thickness concentrated in the 0.6-2.0mm range. The home appliance manufacturing sector requires high surface finish and formability for refrigerator, washing machine, and air conditioner housings, primarily utilizing SPCC and DC01-DC03 grades in thicknesses of 0.4-1.5mm. The construction and decoration sector focuses on substrate requirements for galvanized and pre-painted products, with a broader thickness range. The hardware, electrical products, and precision instruments sectors demand high dimensional accuracy and surface quality, commonly selecting fine-finish surface products such as SPCC-SD (matted finish). Additionally, cold rolled coils serve as the substrate for value-added products including electro-galvanized, hot-dip galvanized, and pre-painted steel coils, further expanding their application boundaries.

Conclusion: The Scientific Logic of Material Selection

The material grade and thickness of cold rolled coils are the dual core variables that determine formability and application value. Material grades define the forming limits and mechanical properties, while thickness specifications directly affect processing difficulty and product precision. In practical engineering applications, engineers must comprehensively select matching grades and thicknesses based on part forming complexity (simple bending, general stamping, deep drawing), dimensional accuracy requirements, and final service environment. SPCC/DC01 is suitable for general purposes, SPCD/DC03 for stamping applications, and SPCE/DC04 and above for deep drawing of complex parts. Correct material and thickness selection is the foundation for ensuring that cold rolled coils achieve optimal performance in practical applications.
