Seamless Pipe vs. Welded Pipe: Manufacturing Differences, Performance Comparison, and Application Guide

Manufacturing Processes: Pierced vs. Formed and Welded

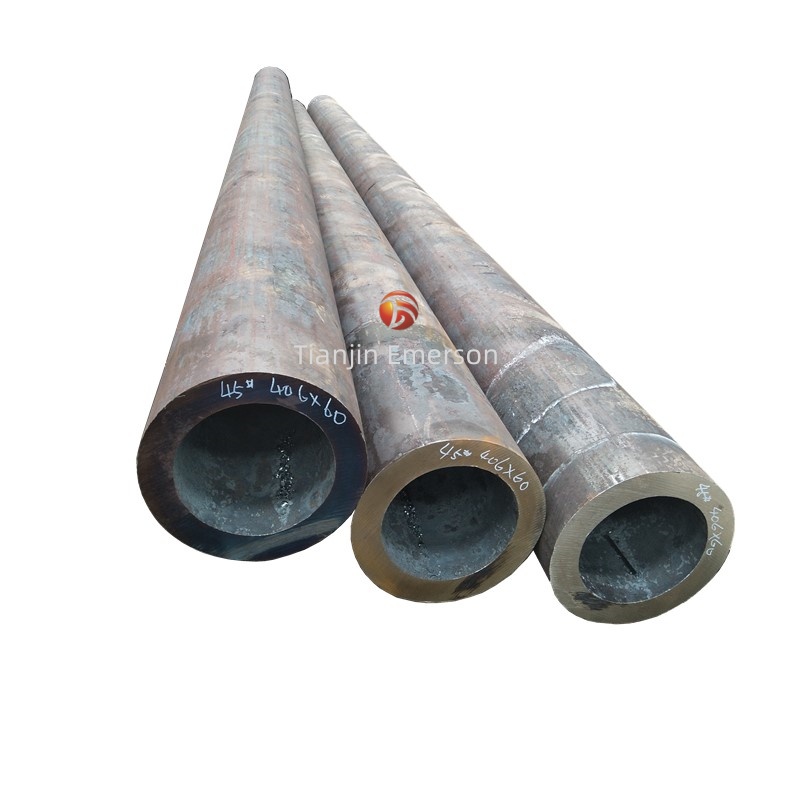

The fundamental distinction between seamless and welded steel pipes lies in their respective manufacturing methods. Seamless pipes are produced from solid round steel billets that are heated to approximately 2,200°F (1,200°C) and then pierced through the center using a rotary piercing mill to create a hollow shell. This hollow tube is subsequently elongated and shaped through rolling or drawing techniques to achieve the required dimensions and wall thickness. The result is a pipe with a monolithic, continuous structure and no longitudinal or spiral weld seam.

In contrast, welded pipes are manufactured by forming steel plates or coils into a tubular shape and welding the longitudinal or spiral edges together. Various welding methods are employed depending on the application: Electric Resistance Welding (ERW) uses electric current to heat the edges of the steel coil until they fuse without filler metal, producing smooth and consistent seams suitable for mass production; Longitudinal Submerged Arc Welding (LSAW) provides deep weld penetration and strong seam quality for large-diameter pipes; and Helical Submerged Arc Welding (HSAW/SSAW) creates a spiral seam that allows production of pipes with greater length and design flexibility. This fundamental difference in production methods gives rise to distinct performance characteristics, cost profiles, and application suitability for each pipe type.

Performance Characteristics and Mechanical Properties

The absence of a weld seam gives seamless pipes distinct performance advantages in demanding applications. With no welds, seamless pipes provide a uniform structure that eliminates weak points, resulting in greater high-pressure tolerance and leak-proof performance. The bursting pressure of seamless pipes is typically 20-30% higher than that of welded pipes of the same specification. Seamless pipes also possess higher tensile strength, superior corrosion resistance, and better high-temperature stability due to the absence of welded weak areas. The seamless manufacturing process produces pipes with very low residual stresses and consistent mechanical properties throughout the pipe body.

Welded pipes, however, have seen significant improvements in quality through modern welding techniques. Contemporary ERW and HFW processes produce joints with strength equal to or greater than the base metal. Still, the weld seam introduces a heat-affected zone (HAZ) that may have different mechanical properties from the base metal. The weld joint efficiency factor (E) in ASME B31.3 ranges from 0.85 to 1.0 for welded pipes, depending on examination standards, while seamless pipes maintain a consistent E = 1.0. Welded pipes also exhibit anisotropic mechanical properties due to the heat-affected zone, though proper heat treatment can improve performance. In terms of dimensional accuracy, welded pipes typically offer better wall uniformity (±10% or better) compared to seamless pipes (±12.5% eccentricity typical).

Size Range, Cost, and Availability

The size capabilities of seamless and welded pipes differ significantly. Seamless pipes are generally available in nominal pipe sizes from NPS 1/8 to approximately NPS 24. Welded pipes, by contrast, can be produced in much larger diameters, ranging from NPS 1/2 to NPS 80 and beyond. For API 5L applications, seamless execution is typically available up to 28 inches, while welded execution—particularly LSAW—can reach 80 inches or more.

From an economic perspective, welded pipes are generally 20-40% less expensive than seamless pipes. The production cost of seamless steel pipes is higher, with material utilization rates of approximately 70-80%. Welded steel pipes, however, can be produced continuously with material utilization exceeding 95%, offering significant price advantages, particularly in the large-diameter pipe segment. Lead times also differ: seamless pipes require longer lead times for large sizes, while welded pipes benefit from shorter lead times and wider stock availability. Surface finish is another distinguishing factor: seamless pipes generally have a rougher surface (hot-finished), while welded pipes offer smoother surface finishes.

Application Domains and Selection Criteria

The choice between seamless and welded pipes should be guided by specific application requirements, pressure conditions, temperature extremes, and budget constraints. Seamless pipes are mandatory or strongly preferred for critical, high-pressure, and high-temperature applications. These include design pressures exceeding the ASME B31.3 limits for welded pipes with joint factors below 1.0, sour service environments where the heat-affected zone cracking risk must be minimized (NACE MR0175/ISO 15156), high-temperature service above 400°C (ASTM A335 alloy grades), and low-temperature service below -46°C (ASTM A333). Common seamless pipe applications include oil and gas pipelines for high-pressure fluid transport, chemical and petrochemical processing systems, power generation and heat exchanger tubes, automotive and aerospace hydraulic lines, and pharmaceutical and food processing plants requiring hygienic flow systems. Seamless steel pipes are also specified for hydraulic systems with working pressures exceeding 10MPa, steam pipes with temperatures exceeding 350°C, and corrosive medium delivery pipelines.

Welded pipes are generally acceptable or preferred for large-diameter pipelines (NPS 24 and above) where seamless options are unavailable or prohibitively expensive, structural applications per ASTM A500 or EN 10219, water transmission and low-pressure utilities, and projects where cost and delivery schedules drive decisions. Welded pipes are commonly used for building structure supports, low-pressure fluid delivery systems, and non-standard pipes requiring on-site modification. For conventional applications such as urban gas pipelines and low-pressure water pipelines, the more cost-effective welded pipes are generally the optimal choice.

Quality Control and Inspection Requirements

Quality assurance and inspection requirements differ between the two pipe types. Seamless pipes require focus on testing wall thickness uniformity and ovality. Welded pipes must undergo comprehensive non-destructive testing of welds, including X-ray flaw detection and ultrasonic testing, to verify weld integrity. Common specifications for seamless pipes include ASTM A106, A335, and API 5L, while welded pipes are commonly specified under ASTM A53 Type E, API 5L, and ASTM A671/A672. NDT requirements mandate ultrasonic testing per ASTM/API standards for seamless pipes, while welded pipes require radiographic or ultrasonic testing specifically on the weld seam. The correct selection of pipes requires comprehensive consideration of pressure level, medium characteristics, and service conditions. In many industrial applications, seamless and welded pipes can be used in combination within the same system to optimize cost-effectiveness. By understanding these fundamental differences in manufacturing, performance, and application suitability, engineers and procurement professionals can make informed decisions that balance technical requirements with economic considerations for each specific project.
