Analysis of Specification and Thickness of Steel Plate Laser Cutting Parts

Views: 145154     Author: Site Editor     Publish Time: 2026-08-04      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

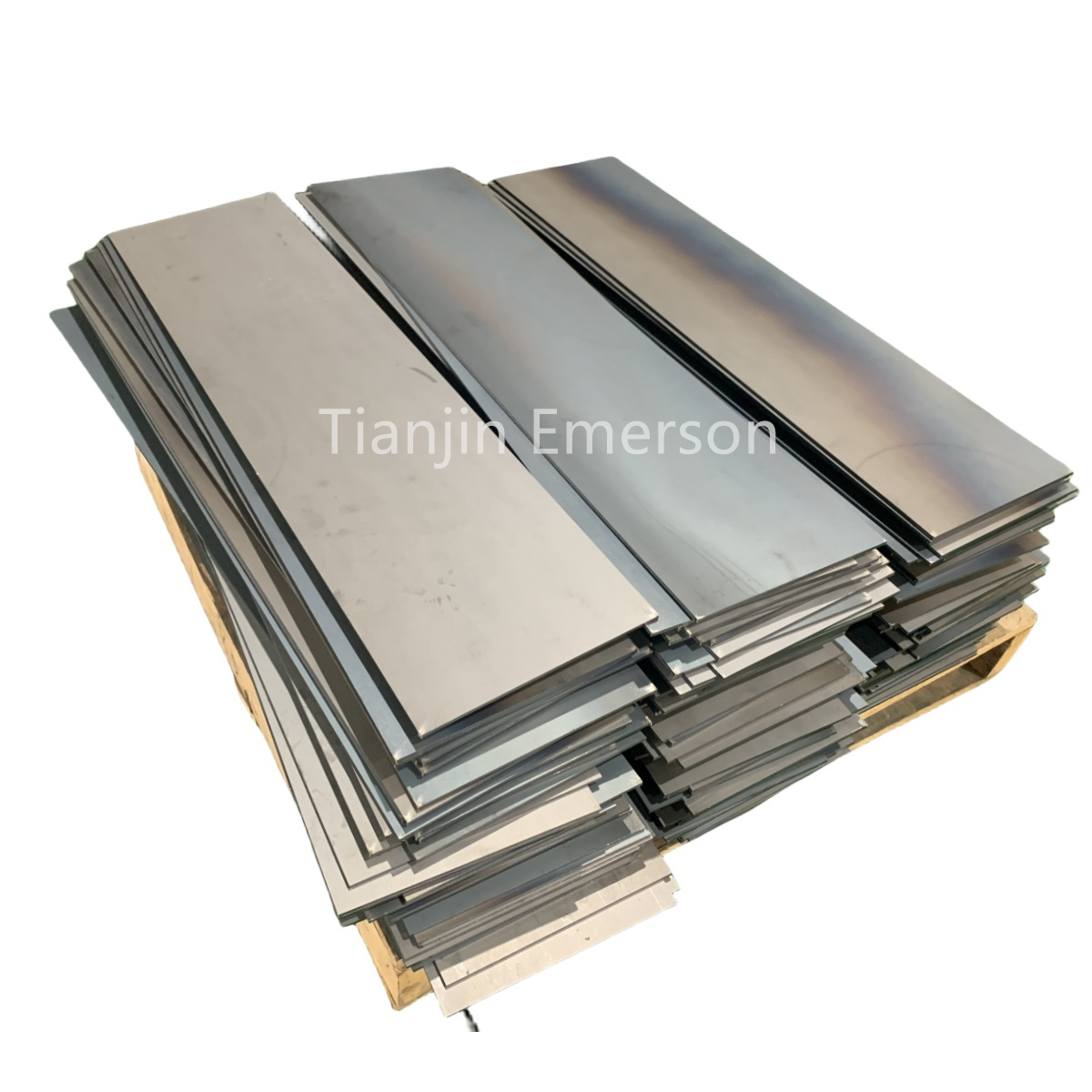

Thickness Classification: Defining the Processing Capability

The thickness of steel plate is the primary determinant of laser cutting feasibility, directly influencing equipment requirements, cutting speed, edge quality, and overall production cost. Steel plates are generally classified into four categories based on thickness: thin plates (less than 4mm), medium plates (4–20mm), thick plates (20–60mm), and extra-thick plates (exceeding 60mm). For laser cutting, the preferred processing range for steel sheets typically extends up to 20mm, with certain circumstances allowing up to 25mm. High-power fiber laser systems, particularly those exceeding 20kW, have pushed this boundary further, achieving optimal cutting thickness for carbon steel up to 70mm. However, for continuous production efficiency and cut quality, processing steel plates thicker than 50mm is generally not recommended. Understanding this classification is essential for specifying the correct equipment and parameters for each project, as the thickness directly affects the choice of assist gas, focal position, cutting speed, and expected tolerances.

Material-Specific Thickness Specifications for Laser Cutting

Different steel grades exhibit distinct laser cutting characteristics due to variations in thermal conductivity, reflectivity, and chemical composition. For carbon steel (mild steel) , the ideal thickness range for laser cutting is up to 10mm, with maximum practical thickness reaching 13mm under optimal conditions. Higher-power systems can process carbon steel up to 25mm or more, but the ideal range for maintaining speed and quality remains significantly narrower. Stainless steel presents greater challenges due to its higher reflectivity and thermal conductivity; the ideal thickness for ASTM 304 stainless is up to 4mm, with maximum thickness around 6mm. Advanced fiber laser systems can process stainless steel up to 20mm or more, but cutting speeds decrease substantially as thickness increases. Aluminum and aluminum alloys, known for their high reflectivity, require specialized laser sources with protection against back reflections; ideal thickness for structural aluminum is up to 3mm, with maximum around 5mm. High-power fiber lasers can cut aluminum up to 18mm or thicker, depending on the alloy and assist gas. The selection of assist gas is equally critical: oxygen is used for carbon steel to enhance cutting through exothermic oxidation, while nitrogen or air is recommended for stainless steel and aluminum to achieve clean, oxidation-free edges.

Laser Power Requirements by Thickness

The relationship between laser power and cutting thickness follows a roughly linear progression, with higher power required to achieve full penetration and maintain acceptable cutting speeds on thicker materials. For carbon steel, a 500W fiber laser can cut up to 6mm, 1000W handles 6–12mm, 2000W processes 14–18mm, and 3000W reaches 18–22mm. For stainless steel, 500W cuts 1–3mm, 1000W handles 3–5mm, 2000W processes 6–8mm, and 3000W reaches 8–12mm. As a practical rule of thumb, approximately one kilowatt of laser power is required per millimeter of clean cut thickness. For medium-thickness plates (6–12mm), recommended laser power is 4,000–6,000W. Thick plates (13mm and above) demand 4,000W or higher to achieve reliable full penetration. Cutting speed has an inverse correlation with thickness; thick materials require reduced feed speeds for full penetration, while thin sheets run fast to boost throughput without quality loss. For example, a 20kW laser cutting machine can achieve substantial efficiency improvements, with a 30kW system cutting 50mm carbon steel 88% faster than a 20kW system. The selection of appropriate laser power must balance the required thickness, desired production throughput, and capital equipment costs.

Dimensional Tolerances and Edge Quality by Thickness Range

The achievable dimensional accuracy of laser-cut steel plates varies significantly with thickness, as the laser beam widens as it travels through the material. For mild steel up to 3mm thickness, typical tolerances of ±0.004 inches (0.1mm) are achievable with excellent edge quality. For 3–6mm thickness, tolerances of ±0.006 inches (0.15mm) are typical with good edge quality. For 6–12mm thickness, tolerances widen to ±0.010 inches (0.25mm) with fair edge quality. For 12–25mm thickness, tolerances of ±0.020 inches (0.5mm) are expected, with rough edge quality. Stainless steel follows similar patterns: 0.5–3mm achieves ±0.004 inches (0.1mm) with excellent edge quality, while 3–10mm achieves ±0.008 inches (0.2mm) with good edge quality. The kerf width—the material removed by the laser beam—typically ranges from 0.006 to 0.012 inches (0.15–0.3mm) for fiber lasers. Edge quality degrades with increasing thickness: thin steel under 3mm produces smooth, almost burr-free edges requiring little post-processing; medium steel (3–10mm) exhibits slight roughness on the bottom edge requiring light deburring; thick steel over 10mm shows noticeable taper and roughness, with the entry side wider than the exit side. The heat-affected zone (HAZ) for fiber laser cutting of mild steel typically ranges from 0.005 to 0.010 inches (0.13–0.25mm). For applications requiring square edges on thick parts or extremely tight tolerances, alternative processes such as CNC machining may be more appropriate.

Standard Thickness Tolerances and Design Considerations

In addition to laser cutting capabilities, the base material itself must conform to established thickness tolerances. ASTM A6/A6M provides the general requirements for rolled structural steel bars, plates, shapes, and sheet piling, specifying dimensional tolerances for thickness, width, and length. These tolerances vary by thickness range, with plates from approximately 5mm to 200mm covered under the standard. For A36 steel plates, thickness tolerance is specified by ASTM A6/A6M based on the specified thickness and plate width. Designers must account for both the base material thickness tolerance and the cutting tolerance when specifying final part dimensions. Additionally, minimum feature sizes are constrained by plate thickness: for steel up to 5mm, minimum hole diameter of 15mm is recommended; for 6–15mm thickness, 18mm; and for 20–25mm thickness, 20–25mm respectively. The minimum bend radius and hole placement relative to bend lines must also be considered, as holes placed too close to bend lines will deform during subsequent forming operations. Understanding these specification and thickness parameters enables engineers and procurement professionals to optimize part designs for manufacturability, select appropriate equipment, and establish realistic quality expectations for laser-cut steel components.
