Designing an outdoor steel enclosure requires balancing strict NEMA and IP corrosion resistance ratings against the manufacturing constraints of high-volume production. Processing pre-galvanized materials introduces specific thermal risks on the shop floor. Improper thermal cutting vaporizes the protective zinc layer, creates edge rust vulnerabilities, and leaves hardened dross that compromises weather-tight gasket seals.
Manufacturing workflows generally follow two distinct paths. You can laser cut pre-galvanized sheet metal compliant with ASTM A653, or you can laser cut bare cold-rolled steel and apply post-fabrication batch hot-dip galvanizing under ASTM A123. Each path carries operational trade-offs regarding dimensional accuracy and lead times. However, modern fiber laser technology changes the equation. When you combine high-wattage fiber lasers with specific material grades like DX51D and strict post-processing protocols, the results are highly durable. This engineered approach yields enclosures that rival stainless steel in harsh environments without the associated raw material expenses.
Material Selection is Foundational: Specifying the correct base material, coating method (electro-galvanized vs. hot-dip), and coating weight (e.g., DX51D with G90 coating) directly dictates laser cutting speed and edge quality.
Assist Gas Dictates Corrosion Resistance: Utilizing high-pressure Nitrogen over Oxygen is non-negotiable for preventing edge oxidation and preparing parts for secondary powder coating.
Edge Treatment is Mandatory for Outdoor Use: Relying solely on the cathodic "sacrificial" protection of zinc across a laser-cut edge is insufficient for harsh outdoor environments; secondary edge sealing is required.
Vendor Capabilities Matter: High-wattage fiber lasers with advanced fume extraction and automated deburring are required to safely and economically produce galvanized sheet metal parts at scale.
Engineers evaluate materials based on the cost-to-corrosion resistance ratio. Galvanized steel offers a distinct advantage over 304 or 316 stainless steel and 5052 aluminum for large-scale telecom cabinets, HVAC housings, and heavy electrical panels. Stainless steel provides superior native rust resistance but drives up raw material and machining expenses significantly. Aluminum is lightweight and resists oxidation, but it lacks the structural rigidity needed for heavy-duty applications and requires thicker gauges to match the tensile strength of steel. Galvanized steel delivers high tensile strength alongside reliable weather protection at a fraction of the raw material cost.
Fabrication teams must choose between pre-galvanized sheet and post-fabrication batch hot-dip galvanizing. Laser cutting pre-galvanized sheet offers higher dimensional precision and shorter lead times. The primary drawback is the exposed cut edge, which requires secondary treatment. Batch hot-dip galvanizing after cutting ensures complete zinc coverage across all edges. However, the hot-dip process introduces severe thermal warping risks for thin-gauge sheet metal. It also clogs threaded holes, obscures tight tolerances with excess zinc, and requires extensive manual re-tapping of hardware inserts.
Zinc protection relies on two mechanical principles. First, the zinc layer acts as a physical barrier against moisture and oxygen. Second, it serves as a sacrificial anode. If the steel substrate is exposed through a scratch or a cut edge, the surrounding zinc oxidizes first, protecting the base metal. Preserving this coating during fabrication is critical for long-term field performance. When you vaporize too much zinc during the cutting process, you reduce the effective radius of this cathodic protection.
When fabricated correctly, galvanized enclosures meet strict lifecycle expectations. In a C3 atmospheric environment, which includes urban and industrial atmospheres with moderate sulfur dioxide pollution, a well-processed galvanized enclosure can last decades. In harsher C4 environments, such as heavy industrial areas and coastal regions with moderate salinity, secondary powder coating over the galvanized base is required to maintain the expected operational lifespan and prevent premature red rust formation.
| Material Option | Corrosion Resistance | Structural Rigidity | Fabrication Complexity |
|---|---|---|---|
| Galvanized Steel (ASTM A653) | High (with powder coat) | Excellent | Moderate (requires edge treatment) |
| 304/316 Stainless Steel | Very High | Excellent | High (harder on tooling) |
| 5052 Aluminum | High (native oxide layer) | Low to Moderate | Low (easy to machine) |
| Cold Rolled Steel (Painted) | Low (fails if scratched) | Excellent | Low |

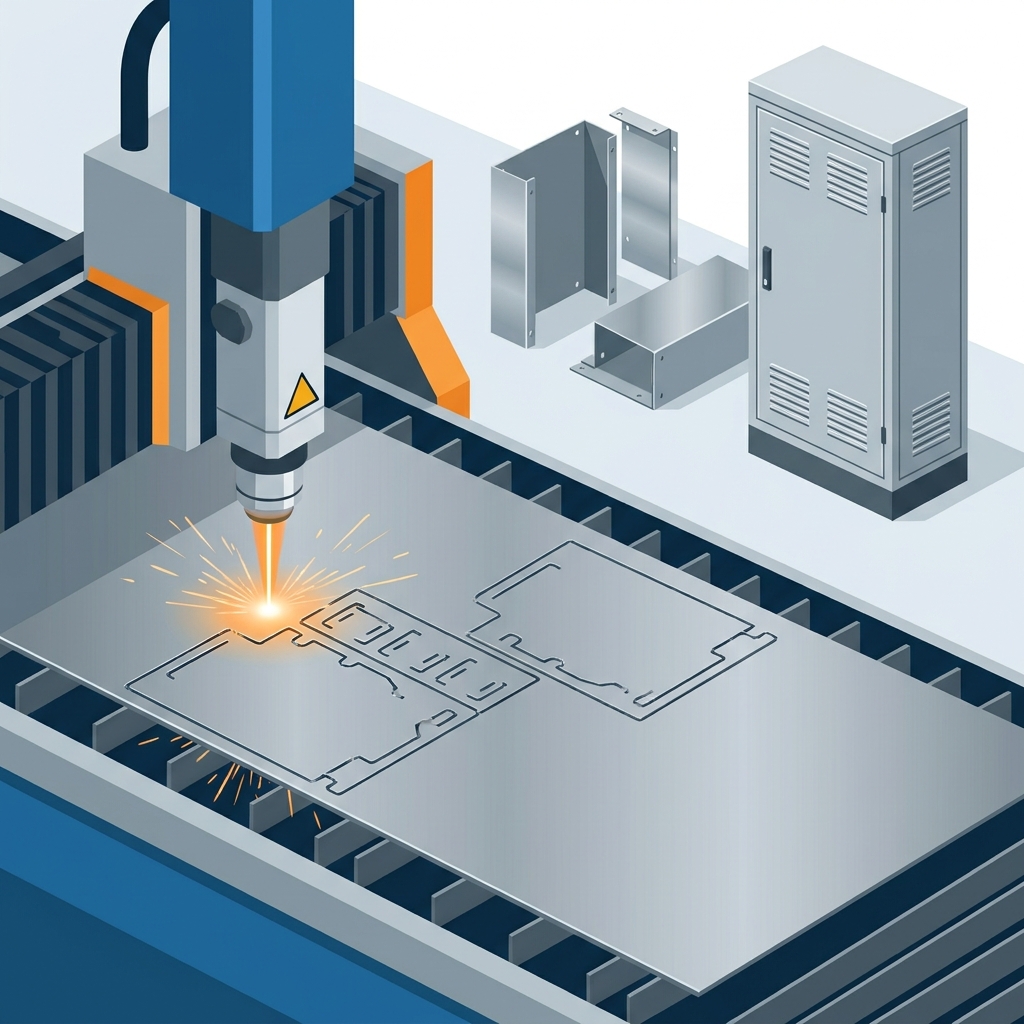

Executing galvanized steel laser cutting introduces complex thermal dynamics that operators must manage carefully. Zinc melts at approximately 420°C and vaporizes at
