Hot Rolled Coil Technology: A Cornerstone of Modern Metal Manufacturing

Enabling High-Volume, Cost-Effective Production of Flat Steel

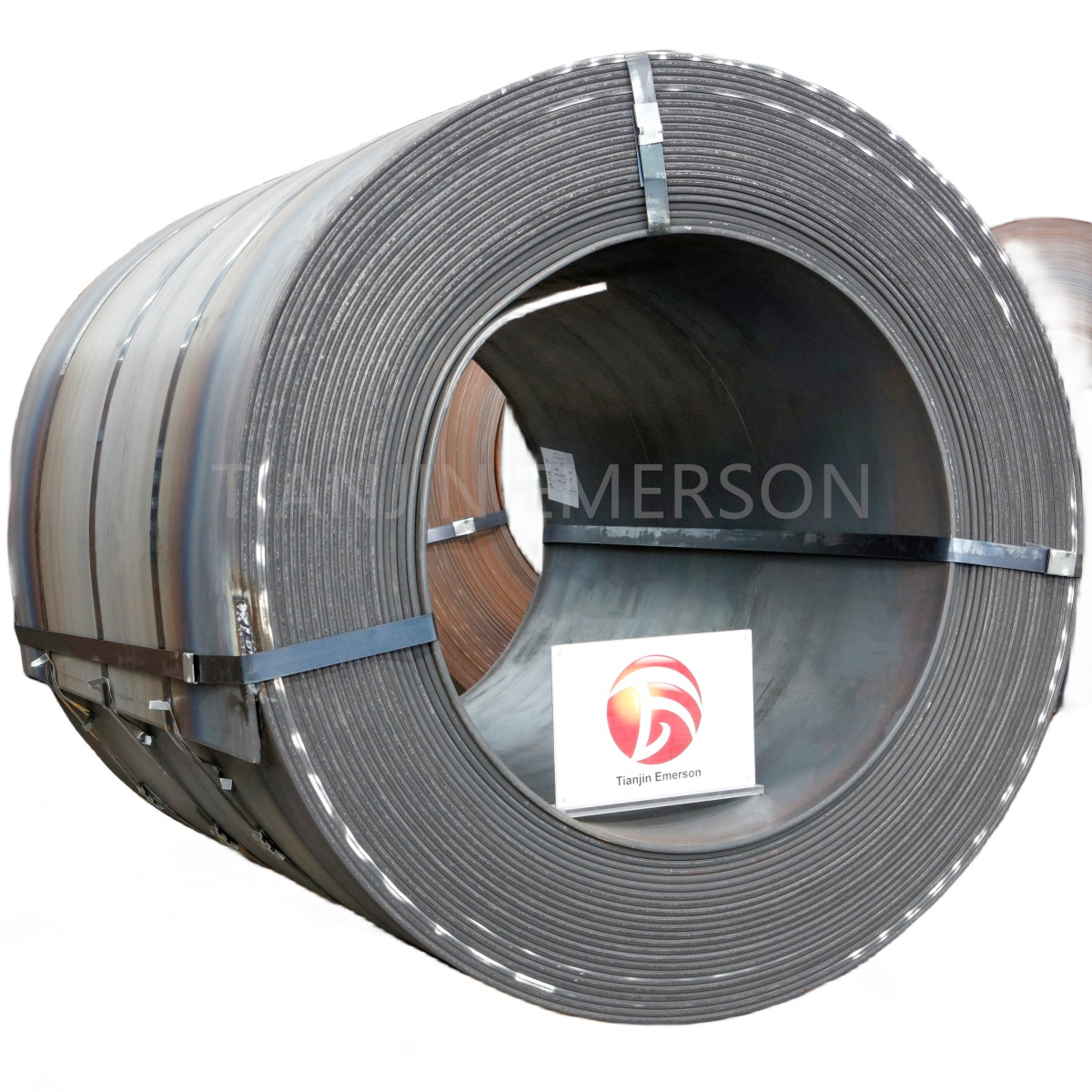

Hot rolled coil (HRC) technology is the foundation of large-scale flat steel production, converting cast steel slabs into thin, continuous strips at speeds exceeding 10 meters per second. The process involves reheating slabs to approximately 1,250°C and passing them through roughing and finishing stands that progressively reduce thickness from 200mm down to 1.2mm or less. This high-temperature rolling eliminates the need for intermediate annealing, making HRC significantly more economical than cold rolling for thick gauges (≥2mm). The ability to produce coils weighing up to 30 tons enables continuous downstream operations such as slitting, pickling, and tube forming. For metal manufacturers, HRC serves as the primary feedstock for countless products: from automotive chassis components and ship hull plates to structural beams and welded pipes. Its cost efficiency—typically 20–30% lower than cold-rolled equivalents—makes it indispensable for industries where surface finish is secondary to mechanical performance and throughput.

Delivering Superior Mechanical Properties for Structural Applications

The hot rolling process refines the steel’s grain structure through dynamic recrystallization, resulting in improved ductility, toughness, and weldability compared to cast or forged materials. As the steel cools from rolling temperature, controlled cooling strategies (e.g., laminar cooling) allow engineers to tailor final mechanical properties—yield strength from 250 MPa to over 700 MPa for advanced high-strength steels (AHSS). This versatility makes HRC the material of choice for heavy structural applications: building beams and columns (ASTM A36, A992), bridge girders (A572 Grade 50), railway tracks, pressure vessels, and offshore platforms. Unlike cold-rolled steel, HRC has minimal residual stress, which reduces distortion during welding and cutting. For large fabrications, such as crane booms or wind turbine towers, the consistent mechanical properties across long coil lengths ensure predictable performance under dynamic loads. Moreover, HRC’s excellent formability at elevated temperatures allows hot stamping of complex automotive safety components (e.g., door intrusion beams) with ultimate tensile strengths exceeding 1,500 MPa.

Driving Downstream Value through Versatile Processing Options

Hot rolled coil serves as the essential starting point for numerous value-added processes, amplifying its significance in the metal manufacturing chain. It can be directly used for heavy-gauge applications such as line pipe (API 5L), structural tubing (ASTM A500), and railway car bodies. Alternatively, HRC can be pickled to remove mill scale, producing pickled and oiled (HRP&O) coil with a clean surface ready for laser cutting, bending, and welding. This pickled HRC is also the feedstock for cold rolling mills, where it is reduced to thinner gauges for automotive panels, appliances, and galvanized products. In addition, HRC can be hot-dip galvanized to produce corrosion-resistant building materials. The ability to adjust width (typically 600–2,000 mm), thickness (1.2–25 mm), and coil weight makes HRC adaptable to diverse manufacturing needs. By enabling high-volume, low-cost production of flat steel with consistent mechanical properties, hot rolled coil technology remains the backbone of global infrastructure and industrial manufacturing.
