Acid Washed Coil: Comprehensive Processing Workflow and Critical Quality Control Measures

Introduction: The Strategic Role of Acid Washed Coil in Metal Manufacturing

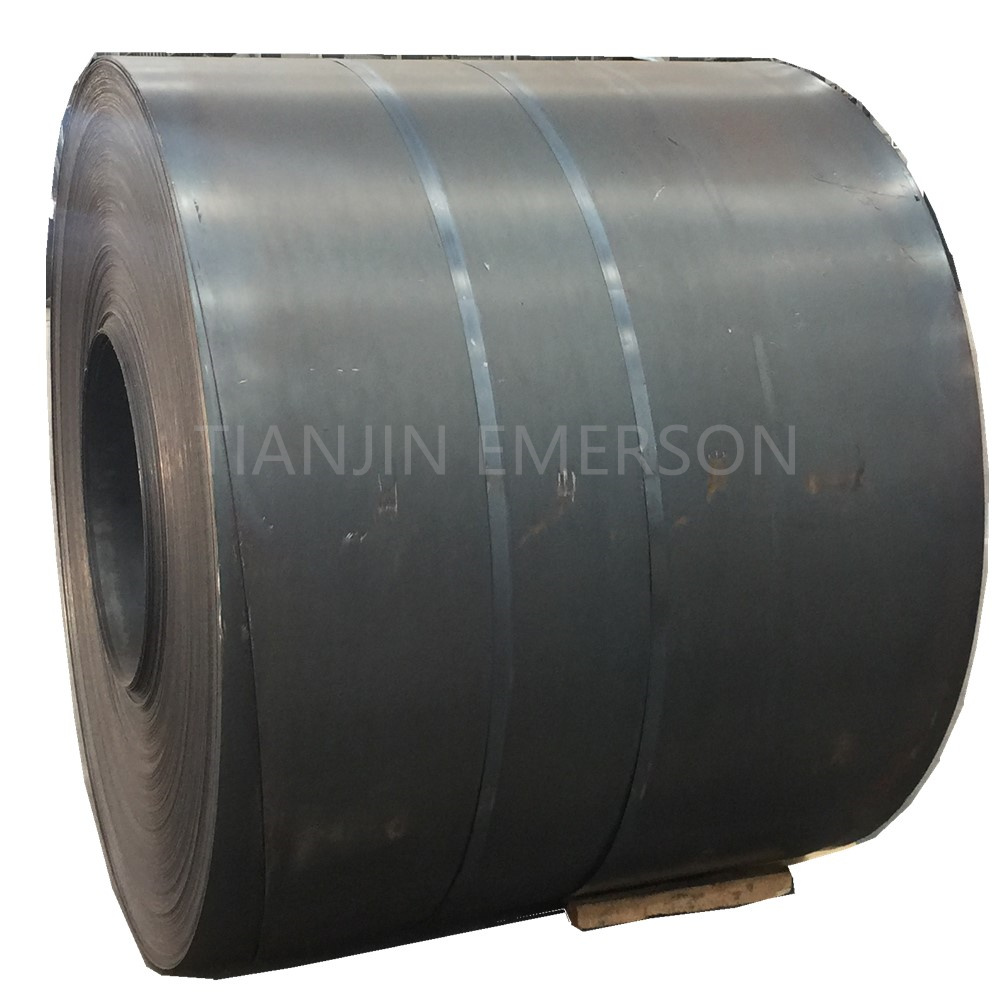

Acid washed coil, commonly referred to as pickled coil or hot-rolled pickled and oiled (HRPO) steel, occupies a strategic position between hot-rolled and cold-rolled steel products in the metal manufacturing value chain. Produced by removing the tenacious oxide scale from hot-rolled steel through a chemical pickling process, acid washed coil delivers the surface quality and dimensional precision of cold-rolled products at a cost significantly closer to hot-rolled steel. This unique value proposition has driven its widespread adoption across automotive, compressor, hardware, and general manufacturing industries. The product offers superior surface quality (typically FB grade versus FA for hot-rolled), enhanced weldability, and excellent paint adhesion—all while eliminating the need for end-users to perform their own acid pickling, which reduces environmental impact and processing costs. As the industry continues to evolve toward higher-performance and more sustainable solutions, the production of acid washed coil demands increasingly sophisticated process control, equipment reliability, and quality assurance systems to meet the exacting requirements of modern manufacturing applications.

Raw Material Preparation: The Critical Starting Point

The processing of acid washed coil begins with the careful selection and preparation of hot-rolled steel coils, which serve as the feedstock for the pickling line. These hot-rolled coils, typically ranging in thickness from 1.2mm to 7.0mm and widths from 800mm to 1630mm, arrive at the pickling facility with a characteristic dark oxide scale formed during the hot rolling process. Prior to pickling, the coils must be physically conditioned: they are uncoiled, passed through a five-roll straightening machine to eliminate coil set and improve flatness, and the head and tail ends are cropped to remove irregular portions. For continuous pickling lines, a laser welder joins the tail of one coil to the head of the next, creating a continuous strip that maintains consistent process conditions and maximizes line utilization. This welding operation—which uses high-energy laser pulses to melt and fuse the strip ends without filler wire—is critical for maintaining the uninterrupted flow required by modern high-speed pickling lines. The prepared strip then enters an entry loop or accumulator that provides buffer capacity to maintain line speed during coil changes, ensuring that the pickling process itself operates at a constant, optimized rate.

Mechanical Descaling: Breaking the Scale for Efficient Acid Attack

Before the strip enters the acid baths, it passes through a mechanical descaling stage that is essential for optimizing acid consumption and pickling efficiency. The heart of this stage is the tension leveler or scale breaker, which subjects the strip to controlled bending and unbending forces. This mechanical deformation serves two critical functions: it fractures the brittle oxide scale into a network of micro-cracks, exposing the underlying steel to the acid; and it improves the strip's flatness, which is essential for consistent acid contact and uniform pickling. The broken scale particles are removed by compressed air blow-off systems. Without effective mechanical descaling, the acid would need to dissolve the full thickness of the scale through chemical action alone, which would require significantly longer residence times, higher acid concentrations, and greater energy input—all of which increase operating costs and reduce line productivity. For high-quality acid washed coil production, the mechanical descaling parameters—including the degree of bending, tension levels, and the number and configuration of bending rolls—must be precisely controlled based on the specific steel grade, thickness, and scale characteristics of the incoming hot-rolled coil.

Chemical Pickling: Dissolving the Oxide Scale

The chemical pickling stage is the core transformation step in acid washed coil production, where the fractured oxide scale is dissolved from the steel surface through controlled chemical reaction. Modern pickling lines employ hydrochloric acid (HCl) at concentrations of approximately 18% as the primary pickling medium, operating at elevated temperatures of 75-95°C. The process typically utilizes a series of acid tanks arranged in a counter-current flow configuration: fresh acid enters the last tank and flows backward toward the first tank, where the spent acid is discharged for regeneration. This cascading arrangement maximizes acid utilization and maintains optimal concentration gradients across the tanks. The acid reacts with the iron oxides (Fe₂O₃, Fe₃O₄, and FeO) through dissolution and reduction reactions, converting them into soluble ferrous and ferric chlorides. For efficient pickling without attacking the base steel, several parameters must be precisely controlled: acid concentration, temperature, strip speed (which determines immersion time), and acid turbulence. Shallow-tank turbulent pickling systems—widely adopted in modern lines—use high-velocity acid flow to continuously refresh the chemical boundary layer at the steel surface, dramatically accelerating the pickling reaction and improving uniformity. This turbulence also helps to physically dislodge loosened scale particles, keeping the acid fresh and reactive.

Rinsing, Drying, and Oiling: Preserving the Activated Surface

Following the pickling section, the now-scale-free strip must be thoroughly rinsed to remove residual acid and dissolved iron salts, which would otherwise cause surface staining and corrosion. The rinsing stage typically employs multiple stages of fresh water, with the final rinse using demineralized water to minimize ionic contamination. The rinse water temperature is maintained at 40-70°C to enhance solubility and rinsing efficiency. After rinsing, the strip passes through high-velocity hot air drying sections at 90-120°C, where heated air removes all moisture from the surface. This drying step is critical: any residual moisture on the chemically activated steel surface will cause rapid flash rusting. Immediately after drying, the strip is coated with a thin film of rust-preventive oil. This oiling step—typically performed by electrostatic oilers or roll coaters—applies a uniform, precisely controlled oil film (typically 0.5-2.0 g/m²) that provides temporary corrosion protection during storage and transport. The oil also serves as a lubricant for subsequent cold forming and stamping operations. For coils intended for immediate cold rolling, a passivation treatment may replace oiling to prepare the surface for subsequent processing without the need for degreasing.

Key Processing Parameters and Their Control

The quality of acid washed coil depends critically on the precise control of several interdependent processing parameters. Acid concentration must be maintained within a narrow operating range: too low, and pickling becomes incomplete (resulting in residual scale); too high, and the acid attacks the base steel excessively (causing surface roughness, pitting, and material loss). Bath temperature directly affects reaction kinetics: higher temperatures accelerate pickling but increase acid consumption and the risk of over-pickling; lower temperatures extend required residence time, limiting line speed and productivity. Strip speed determines the immersion time in the acid baths and must be coordinated with acid concentration and temperature to achieve complete scale removal without excessive acid attack. Tension levels must be precisely controlled throughout the line to prevent scratching (from excessive tension causing slip) or buckling (from insufficient tension), both of which can create surface defects. Modern pickling lines employ sophisticated automation and process control systems to monitor and adjust these parameters in real time, maintaining consistent quality across different steel grades, thicknesses, and production campaigns.

Common Quality Defects and Prevention Measures

Despite advanced process control, acid washed coil production can encounter several characteristic quality defects that require systematic prevention and management. Oxide scale residue results from insufficient acid attack caused by low concentration, low temperature, excessive strip speed, or inadequate mechanical descaling. Prevention requires maintaining acid parameters within specification, controlling line speed appropriately, and ensuring effective scale breaking. Over-pickling occurs when the strip remains in the acid too long or when acid concentration is too high, resulting in a rough, pitted surface and dimensional loss. This requires careful coordination of speed, temperature, and concentration to avoid both under- and over-pickling. Yellow staining arises from incomplete rinsing or residual acid salts on the surface, which oxidize to form yellow iron compounds. Prevention requires maintaining rinse water quality, ensuring proper spray nozzle function, and controlling rinse water pressure. Scratches and mechanical damage typically originate from contact with line components—entry guides, tension rolls, or worn liners—or from poor strip flatness that causes uneven contact. Prevention requires regular inspection and maintenance of all contact surfaces, proper tension control, and proper coil handling. Coil set or shape defects occur when low-carbon aluminum-killed steel exhibits yield point elongation during uncoiling, creating transverse ridges. Prevention may require temper rolling prior to pickling or the use of stabilized grades. Storage staining results from condensation or moisture entrapment during storage. Prevention requires proper storage conditions (cool, dry, well-ventilated) and prompt usage of the pickled material.

Storage and Handling Precautions

The chemically activated surface of acid washed coil is more susceptible to corrosion than the scale-covered surface of hot-rolled steel. To prevent surface degradation during storage and handling, several essential precautions must be observed. Coils should be stored indoors in a cool, dry environment with relative humidity maintained below 60%. The storage area must be well-ventilated to prevent condensation and moisture accumulation. Coils should be elevated off the floor on pallets or racks to prevent ground moisture contact and should be covered with protective wrapping to prevent dust and moisture ingress. When coils must be stored outdoors (not recommended), they should be placed on elevated supports with good drainage and covered with waterproof tarpaulins, ensuring adequate ventilation to prevent trapped moisture. During handling and transport, coils must be protected from impact damage that could break the oil film or create stress concentrations, and the protective oil film should be inspected regularly and reapplied if damaged. For long-term storage (exceeding three months), additional corrosion protection measures—such as VCI paper packaging or heavier oil coatings—may be required.
