Laser Cutting of Hot-Rolled Steel: Principles And Workflow

The Principle of Laser-Oxygen Fusion Cutting

Laser cutting of hot-rolled steel typically employs what is technically known as laser-oxygen fusion cutting or “laser flame hybrid cutting.” Unlike laser vaporization or pure melting processes, laser-oxygen cutting relies on a powerful synergy between the laser beam and an exothermic chemical reaction. The principle works as follows: a high-energy fiber laser beam (typically 4 to 6 kW) focuses on the surface of the hot-rolled steel plate, rapidly heating a localized area to the ignition temperature of iron (approximately 1,350°C). A high-purity oxygen jet is directed coaxially with the laser beam onto this superheated spot. Once the iron reaches its ignition point, it reacts violently with the oxygen in an exothermic oxidation reaction: 4Fe + 3O₂ → 2Fe₂O₃ + heat. This chemical combustion releases three to five times more thermal energy than the laser beam itself contributes. Thus, the laser acts as an efficient, highly controllable “lighter” or “igniter,” initiating and then guiding the reaction along the programmed cutting path, while the oxygen gas serves the dual purpose of being the combustion agent and a high-pressure jet that expels the resulting molten iron oxide slag from the cut kerf.

For thick carbon steel plates, this hybrid process is the most cost-effective and fastest cutting method available. It enables the cutting of plates up to 200mm thick using a relatively low-power laser (6kW) because the oxidation reaction provides over 80% of the total cutting energy. This efficiency eliminates the need for massive, expensive high-power lasers often required for thick plates. The result is a clean cut with excellent verticality, significantly less slag than plasma cutting, and no need for the lengthy preheating times (often 2-3 minutes) that are mandatory for traditional oxy-fuel cutting.

Preparing Hot-Rolled Steel for Optimal Laser Cutting

While the laser-oxygen process is a powerful tool for cutting carbon steel, achieving a high-quality, consistent result depends critically on the surface condition of the raw hot-rolled plate. Standard hot-rolled black steel has a characteristic scaly surface that is far from ideal for a laser. This “moon-like” or cratered surface affects the laser’s height-sensing system, causing the focal point to drift in and out of focus, which directly impacts cut quality and consistency. To counter this, the preferred material for high-precision laser cutting is Hot Rolled Pickled and Oiled (HRP&O) steel. In this process, the hot-rolled coil is passed through a hydrochloric acid bath that chemically removes the tenacious mill scale, leaving a clean, smooth, uniform surface that is then lightly oiled to provide temporary corrosion protection.

Industry studies have confirmed that pickling fundamentally transforms the laser cutting performance of hot-rolled steel. Across all thickness ranges, material surface quality has a more significant impact on cutting results than any other variable, including assist gas pressure or focal position adjustment. A consistent focus depth is the primary requirement for stable, high-quality cuts; the smooth surface of HRP&O steel provides just that, enabling a wide process window and high cutting speeds. In addition, some advanced processes like the SCS (Sustainable Coil Solutions) process go a step further, creating a clean, dry surface that improves cutting speeds by approximately 20% by eliminating the smoke generated by burning oil. For precision applications that demand guaranteed flatness after cutting, specialized grades like Laser Plus hot-rolled strip products guarantee a maximum flatness deviation of only 3mm per meter.

The Coil-to-Plate Workflow for Laser Cutting

In a modern, efficient fabrication environment, the workflow from hot-rolled coil to a cut, finished plate is highly automated and streamlined. The process often begins with a heavy-gauge coil that can weigh up to 30 tons, which is mounted on a precision decoiler. The steel strip is fed through a heavy-duty leveler that eliminates the “coil set” (the natural curvature of the wound strip) to produce a perfectly flat sheet. This is followed by a precision cut-to-length shear that severs the strip into plates of exact, programmed dimensions. This entire in-line process can be monitored and controlled by recipe-driven software, ensuring perfect, repeatable settings for each product run. The result is a flat, consistently sized blank that is optimized for the next stage: the laser cutting system itself.

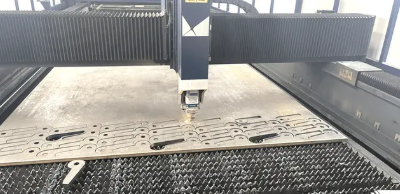

The finished flat plates are then loaded onto a high-power fiber laser cutting machine. The cutting parameters—most critically, the oxygen assist gas pressure, the laser’s focal position (set deep inside thick plates for a narrow, parallel kerf), and the cutting speed—are all programmed into the CNC system. For many high-volume operations, the process is further advanced by moving directly from the coil to the laser. In coil-fed laser blanking systems, the leveled strip feeds directly into the laser cutter‘s chamber. This eliminates the separate step of creating discrete plates, removes the time needed for pallet changeover, and can increase the overall production time of the laser system by approximately 14%, representing a saving of about 600 working hours per year compared to traditional sheet-fed systems. This fully integrated workflow, from the raw coil to the precision laser-cut part, maximizes material utilization, minimizes handling, and sets the standard for modern steel processing.
