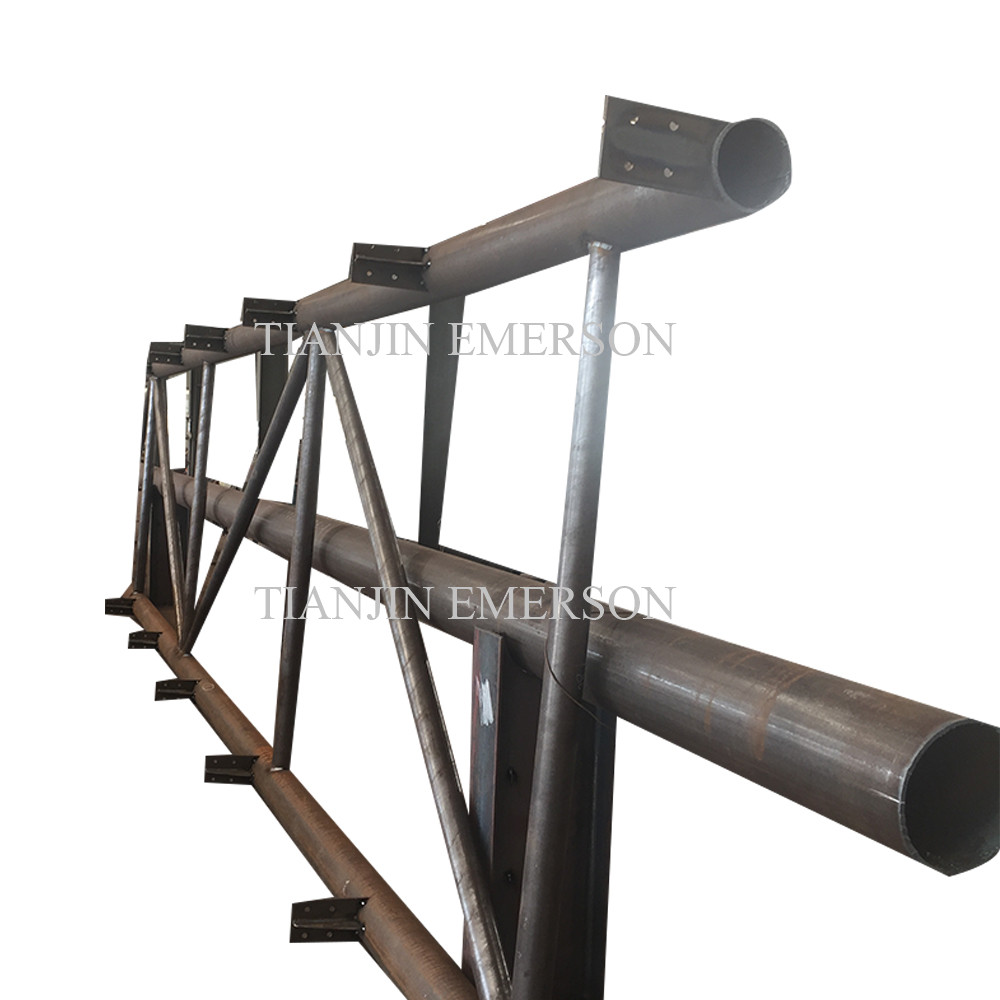

Structural steel pipe welding connects hollow structural sections (HSS)—including circular, square, or rectangular cross-sections—to construct load-bearing frames, trusses, and support structures. Its applications span construction, bridge building, industrial equipment, and architectural landmarks. The most commonly used structural steel tube materials include carbon steel grades (such as ASTM A500 Grade B or C), renowned for their excellent strength-to-weight ratio and weldability; and high-strength low-alloy steel (HSLA) for demanding applications. To meet corrosion resistance or architectural requirements, 304/316 grade stainless steel and aluminum alloys are also frequently employed for welding.
The core of structural steel pipe welding lies in the diverse welding processes available, with each process selected based on material type, wall thickness, joint geometry, production volume, and quality requirements. Gas Metal Arc Welding (GMAW/MIG) is widely adopted for its high deposition rate and efficiency, particularly suited for carbon steel pipe welding in shop fabrication environments. This process excels in applications requiring positional welding and consistent quality. For thick-walled tubes and critical structural applications, flux-cored arc welding (FCAW) achieves deep penetration and tolerates minor surface contamination. Submerged arc welding (SAW) remains the preferred process for manufacturing welded tubes, producing uniform, high-strength welds cost-effectively. It is ideal for large-diameter, thick-walled applications in pipelines, offshore platforms, and pile foundations. Submerged arc welded pipes can be manufactured to stringent specifications, with diameters up to 5000 mm, wall thicknesses up to 200 mm, and lengths up to 120 meters, making them suitable for specialized projects such as offshore jack-up legs and self-elevating drilling platforms.
For large structural components, dimensional accuracy and weld integrity are non-negotiable requirements during the welding process. During joint preparation, welding procedures must explicitly define critical parameters, including preheat temperature, interpass temperature, heat input, and welding sequence. For thick-walled components, multiple passes are typically required, and non-destructive testing must be performed prior to subsequent overlay welding. Post-weld joints undergo rigorous inspection, employing methods such as visual inspection, magnetic particle testing, penetrant testing, or ultrasonic testing—selected based on application criticality and specification requirements.
Welded structural tubing technology finds applications across diverse sectors. In construction, welded tubular frameworks provide skeletal support for high-rise buildings, roof trusses, and long-span beams. For bridge construction, welded tubing is extensively used in beams, arches, and seismic reinforcement components. Within automotive and transportation, welded tubing serves chassis components, roll cages, and body frames, where precision welding ensures occupant safety and structural integrity. Industrial applications span comprehensive domains from conveying systems and material handling equipment to pipe supports and machine bases.
