The Conversion Process of Carbon Steel Coil to Carbon Steel Plate

Introduction: The Critical Role of Coil-to-Plate Conversion

The conversion of carbon steel coil into carbon steel plate represents one of the most fundamental and widely utilized processing operations in the metal manufacturing industry. Steel coils, produced by hot rolling or cold rolling mills in continuous strips weighing up to 30 tons or more, are the primary form in which flat steel products leave the mill. However, most end-use applications—from construction framing and automotive stamping to machinery fabrication and storage tank production—require flat, discrete plates rather than coiled strip. The conversion process, commonly known as cut-to-length (CTL) processing  in Chinese industry terminology, transforms these massive coils into precisely dimensioned flat plates ready for fabrication. This essential value-added service bridges the gap between primary steel production and downstream manufacturing, delivering material optimized for laser cutting, CNC bending, stamping, and assembly operations.

The Core Process Flow: From Coil to Plate

The conversion of carbon steel coil to plate follows a systematic, multi-stage workflow that transforms the coiled strip into flat, dimensionally accurate sheets. The process begins with the loading and positioning of the master coil onto the uncoiler or decoiler. An automated coil car transports the coil from storage to the uncoiler mandrel, where it is securely expanded and centered for controlled payoff. The uncoiling stage then pays off the strip under controlled tension, with the leading end guided through pinch rolls and into the initial processing section.

The next critical stage is leveling , which is essential for eliminating the inherent curvature and residual stresses induced by the coiling process. The strip passes through a multi-roller leveler, where it undergoes alternating bending deformations that permanently eliminate coil set, crossbow, and edge wave. Modern levelers employ multiple work rolls with backup rolls to achieve the deep penetration required for high-strength steels. For advanced applications, stretch leveling technology applies controlled tension beyond the yield point to eliminate internal stresses and deliver consistently flat sheets with excellent surface quality.

After leveling, the strip enters the cutting section, where it is sheared to the required lengths. A precision servo feed meters the strip into a variable-rake cut-to-length shear. For high-volume production, flying shears operate continuously without stopping the strip, achieving cutting speeds that maintain production efficiency. Some lines integrate slitting capabilities, allowing the coil to be longitudinally cut into multiple narrower strips before transverse cutting. Finally, the cut plates move via conveyor to the stacking station, where they are precisely stacked, counted, and prepared for packaging or shipment. The entire line is typically controlled by an integrated electrical, hydraulic, and pneumatic system, enabling fully automated operation with minimal manual intervention.

Equipment Configurations and Processing Capabilities

Cut-to-length lines are engineered across a broad spectrum of capabilities to handle different material grades, thicknesses, and production volumes. For light-gauge processing, lines handle thicknesses from 0.5mm to 4mm with widths up to 1300mm, suitable for cold-rolled and galvanized products. Medium-gauge lines process 3mm to 20mm material with widths up to 2200mm and lengths up to 16000mm, handling the majority of structural carbon steel applications. For heavy-gauge applications, specialized lines process steel up to 32mm thick, 2600mm wide, with coil weights up to 55 metric tons.

The speed and precision of these lines are equally varied. Light-gauge lines operate at speeds up to 40 meters per minute or more, while heavy-gauge lines operate at 15 to 25 meters per minute. Precision standards are rigorous: length tolerances within ±1.5mm per 1000mm, diagonal tolerances within ±2mm per 1000mm, and flatness within 1.5mm per square meter. Leading processing centers utilize world-class equipment from manufacturers such as FIMI, NOVA, and VIGANO, ensuring the highest levels of accuracy and stress relief.

Quality Characteristics and Material Considerations

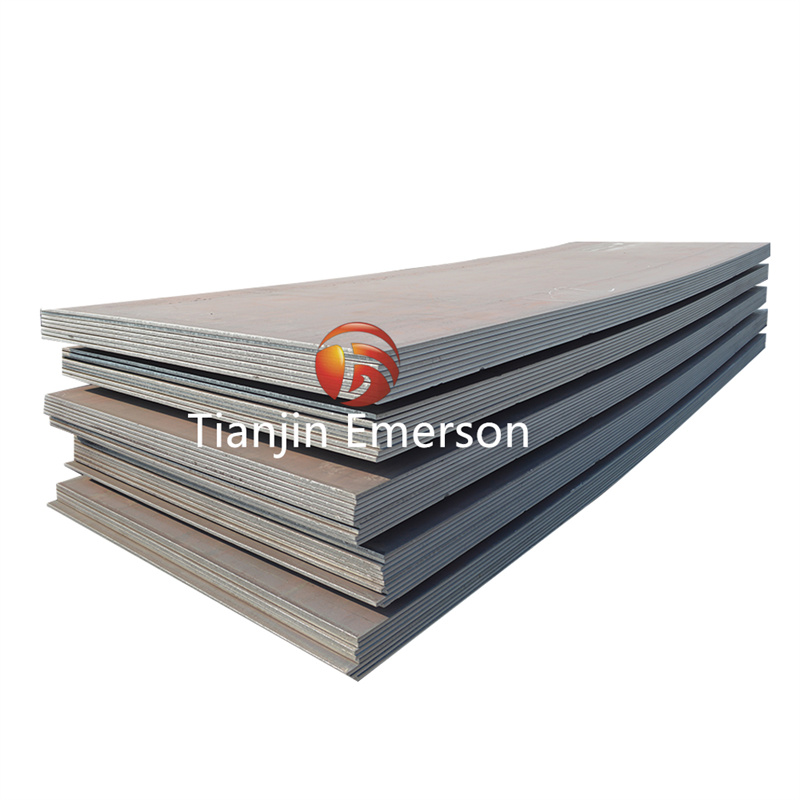

The conversion process, while essential, imparts specific characteristics to the resulting plate that distinguish it from directly rolled “original plate” . The leveling and shearing operations introduce internal stresses that can affect dimensional stability—the plate may exhibit slight warping when cut or welded. As a result, the comprehensive mechanical properties of steel plate are generally somewhat lower than those of original plate. However, the economic advantages are substantial:steel plate is more cost-effective, offers flexible length customization, simplifies transportation, and enables material savings through custom sizing.

The selection between coil-converted plate and original plate depends on the specific application. For structural components subject to heavy welding or requiring precise dimensional stability, original plate may be preferred. For general fabrication, stamping, and applications where cost efficiency and length flexibility are priorities,provides excellent value. In the automotive industry, precision cut-to-length processing is a critical front-end process that ensures smooth feeding for high-speed stamping and robotic welding.

From Plate to Finished Component: The Complete Fabrication Workflow

The conversion from coil to plate is often just the first step in a comprehensive manufacturing chain. Once the flat plates are produced, they proceed to secondary processing for fabrication into finished components. Advanced fiber laser cutting systems deliver precise profiles with clean, burr-free edges. CNC bending transforms flat plates into three-dimensional shapes using press brakes. Professional welding assembles individual components into complete structures. In fully integrated production lines, the entire workflow—from coil uncoiling and leveling through laser cutting, bending, and welding—can be automated into a continuous process. This seamless integration from raw coil to finished product maximizes efficiency, reduces handling, and ensures consistent quality throughout the manufacturing chain.
