From Round Steel To Precision Shaft Bar: A Complete Machining Process Overview

Material Selection and Incoming Inspection

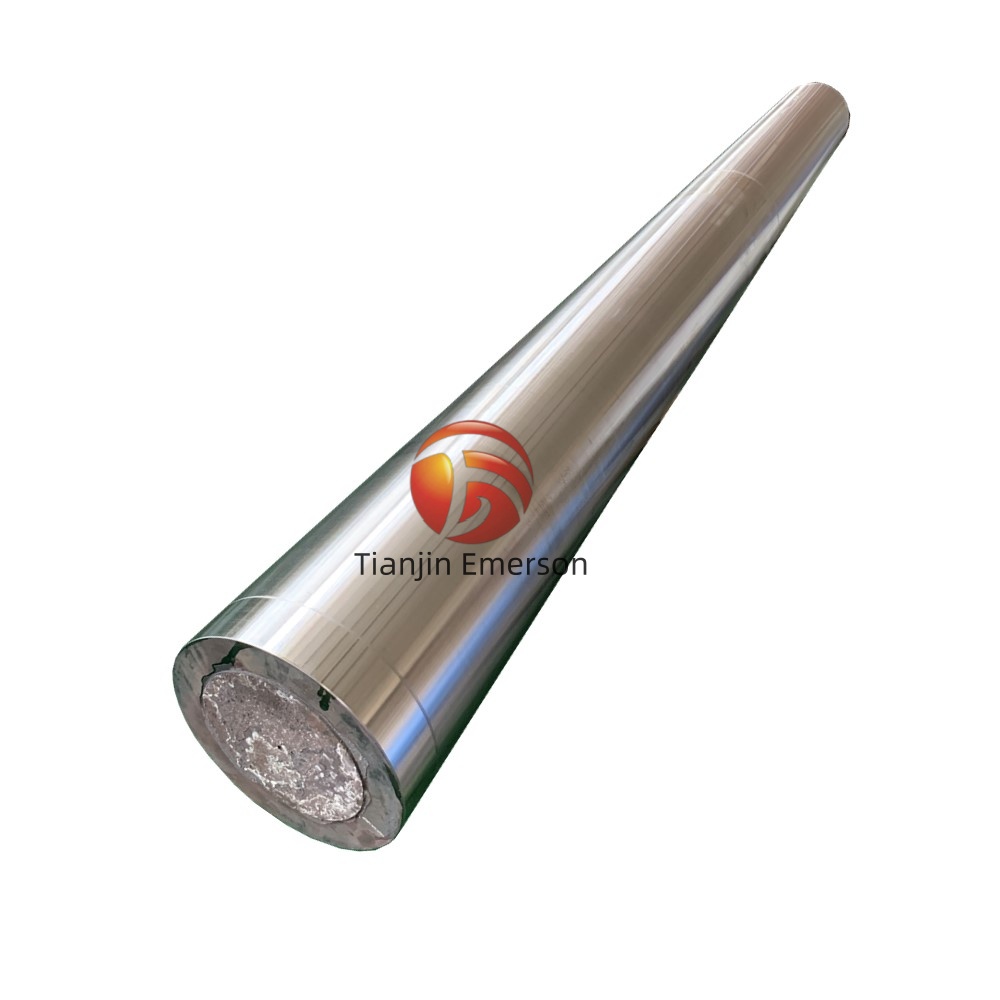

The transformation of round steel into a precision shaft bar begins with the careful selection of raw material and rigorous incoming inspection. Depending on the application, the base material may be low-carbon steel, medium-carbon steel such as AISI 1045, alloy steel such as 4140 or 42CrMo, or stainless steel grades including 304, 316, and 17-4PH. The round steel is supplied in hot-rolled, cold-drawn, or forged condition, and its chemical composition, hardness, and microstructure must be verified against mill test reports. Ultrasonic testing or magnetic particle inspection may be performed to detect internal defects such as cracks, inclusions, or porosity that could compromise the final shaft bar. Diameter, straightness, and surface condition are also checked to ensure the material is suitable for subsequent machining. This first stage is critical because the quality of the finished shaft bar is fundamentally limited by the quality of the incoming round steel.

Cutting and Billet Preparation

Once the round steel has been approved, it is cut to the required billet length using band saws, circular saws, or abrasive cutting machines. The cut length must account for machining allowance, heat treatment distortion, and clamping requirements during turning. For large-diameter shafts, the billet may be sheared or flame-cut, but saw cutting is preferred for precision shaft bars because it produces clean, square ends and minimizes material waste. After cutting, the billet ends are often chamfered or faced to facilitate centering and chucking. If the shaft requires a specific grain flow or improved mechanical properties, the billet may be heated and forged or upset before machining. In some production routes, the round steel is directly machined without forging, particularly when the shaft is small or when the material is already in a cold-drawn or turned condition.

Heat Treatment and Microstructure Control

Heat treatment plays a decisive role in determining the mechanical properties of the final shaft bar. Depending on the steel grade and service requirements, the billet or semi-finished shaft may undergo normalizing, annealing, quenching and tempering, or case hardening. For medium-carbon and alloy steels, quenching and tempering is commonly used to achieve a balance of high tensile strength, yield strength, and impact toughness. For stainless steels, solution annealing may be applied to restore corrosion resistance and relieve stresses. Heat treatment must be performed in controlled furnaces with accurate temperature and atmosphere regulation to prevent decarburization, oxidation, and distortion. After heat treatment, the shaft bar is often straightened and inspected for hardness and microstructure. Inadequate heat treatment can lead to soft spots, cracking, or insufficient fatigue resistance, making this stage essential for demanding applications such as automotive shafts, pump shafts, and hydraulic rods.

Rough Turning and CNC Machining

The heat-treated or normalized round steel then enters the machining stage, beginning with rough turning. On a CNC lathe or turning center, the shaft bar is faced, centered, and turned to remove scale, decarburized layer, and excess material. Rough turning establishes the basic diameter and length while leaving a uniform allowance for semi-finishing and finishing operations. CNC machining ensures repeatable accuracy, and modern turning centers can perform multiple operations—turning, grooving, threading, drilling, and boring—in a single setup. For shafts with keyways, flats, splines, or cross-holes, CNC milling machines or mill-turn centers are used to complete these features. The machining process must control cutting speed, feed rate, depth of cut, and coolant application to avoid work hardening, tool wear, and thermal distortion, especially when machining stainless steel and alloy steel.

Semi-Finishing and Precision Turning

After rough machining, the shaft bar undergoes semi-finishing and precision turning to approach the final dimensions. At this stage, the workpiece is often stress-relieved or allowed to stabilize to prevent dimensional changes during finishing. Semi-finishing removes the remaining stock while maintaining concentricity and straightness. Precision turning then brings the diameter, shoulder lengths, and fillet radii within tight tolerances, often measured in hundredths of a millimeter. For high-precision shaft bars, the turning process may be performed on CNC lathes equipped with live tooling, automatic tool changers, and in-process gauging. Surface finish is carefully monitored because it affects fatigue life, sealing performance, and wear resistance. The shaft bar may also be dynamically balanced at this stage if it will operate at high rotational speeds.

Grinding, Polishing, and Surface Finishing

For many shaft bars, grinding is the final machining operation that achieves the required dimensional accuracy and surface finish. Cylindrical grinding, centerless grinding, or CNC grinding is used to bring the shaft to its final diameter and to correct any residual distortion from heat treatment or turning. Grinding also improves roundness, straightness, and surface roughness, which are critical for bearing seats, seal surfaces, and sliding fits. After grinding, the shaft bar may be polished, buffed, or superfinished to reduce friction and improve corrosion resistance. Surface treatments such as chrome plating, nitriding, induction hardening, or coating may be applied to enhance wear resistance and fatigue strength. For stainless steel shaft bars, passivation is often performed to restore the passive oxide layer and maximize corrosion resistance.

Inspection, Testing, and Final Delivery

The finished shaft bar must pass comprehensive inspection before delivery. Dimensional inspection verifies diameter, length, runout, concentricity, and straightness using micrometers, calipers, dial indicators, and coordinate measuring machines. Surface roughness is measured with profilometers. Hardness testing confirms that heat treatment has achieved the specified properties. Non-destructive testing such as ultrasonic inspection, magnetic particle inspection, or dye penetrant testing may be required for critical shafts. Mechanical testing, including tensile testing and impact testing, may be performed on representative samples. Finally, the shaft bar is cleaned, protected with anti-rust oil or packaging, and marked with identification for traceability. The complete machining process from round steel to shaft bar combines material science, precision engineering, and rigorous quality control to deliver components that meet the demanding requirements of automotive, industrial, hydraulic, and aerospace applications.
