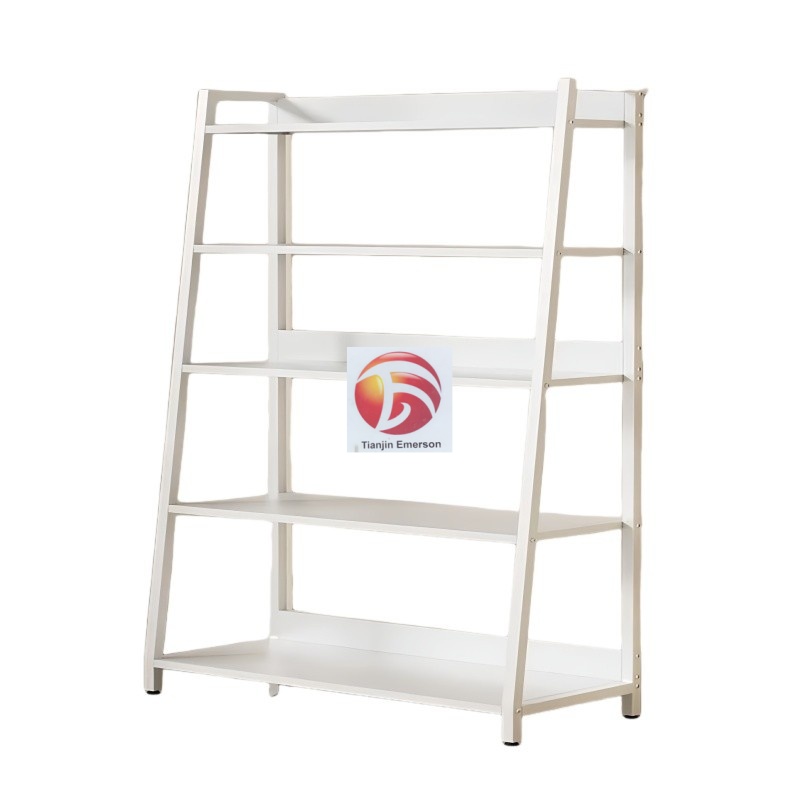

Material Selection and Welding Process of Steel Shelving

Material Selection: Carbon Steel, Stainless Steel, and Galvanized Options

The foundation of any durable steel shelving system begins with the proper selection of base materials. The material chosen directly determines load-bearing capacity, service life, and suitability for specific operating environments. Carbon structural steel remains the most commonly used material for industrial shelving, offering excellent load-bearing capacity, impact resistance, and cost-effectiveness. The two primary carbon steel grades are Q235B (yield strength ≥235 MPa) and Q345B (yield strength ≥345 MPa), both of which are economical and processable with excellent fabrication properties. Q235 carbon steel shelves typically support loads ranging from 500 kg to 5 tons per layer, while Q345 high-strength steel is recommended for heavy-duty storage applications exceeding 10 tons per layer. Q345 steel provides approximately 30% higher load capacity than Q235, making it ideal for demanding industrial environments such as automotive parts warehousing.

For environments where moisture, chemicals, or corrosion are concerns, stainless steel grades 304 and 316 offer superior corrosion resistance and are indispensable for pharmaceutical, food processing, cleanroom, marine, and chemical applications. While stainless steel carries a higher initial cost, its long-term durability and minimal maintenance requirements justify the investment in demanding settings. Galvanized steel provides a cost-effective middle ground, with a zinc coating that prevents rust in humid or corrosive environments such as cold storage, chemical facilities, and outdoor warehouses. For most common storage environments, carbon steel with electrostatic powder coating or plastic spraying provides an optimal balance of strength, corrosion resistance, and cost-effectiveness. Steel racking accounts for over 75% of the market share, with approximately 80% of companies choosing Q235 carbon steel for its proven performance.

Welding Processes: MIG, TIG, and Resistance Spot Welding

The welding process is a critical step in steel shelving fabrication, directly affecting structural integrity, load-bearing capacity, and long-term durability. Gas Metal Arc Welding (GMAW/MIG) is the most widely used welding method for steel shelving due to its high deposition rates, efficiency, and suitability for automated production. MIG welding uses a continuously fed wire electrode and an inert gas shield—typically argon or helium—to protect the weld pool from atmospheric contamination. For robotic MIG welding applications, procedures, personnel, and equipment must conform to international standards including ISO 15614-1 (welding procedure qualification), ISO 9606-1 (welder qualification), and ISO 3834 (quality requirements for fusion welding).

Gas Tungsten Arc Welding (GTAW/TIG) is employed where higher precision and superior weld aesthetics are required, particularly for thin-walled sections and stainless steel components. TIG welding uses a non-consumable tungsten electrode and separate filler material, providing excellent control over heat input and weld quality. While TIG welding is slower than MIG, it produces joints of exceptional quality and is often used for the root pass in critical applications. Resistance spot welding is commonly used for joining sheet metal components, particularly for reinforcing ribs and panel assemblies. This process applies pressure and electric current to create a weld at the contact point between two metal surfaces, offering high-speed production and consistent results for high-volume manufacturing.

Welding Procedure Specifications and Quality Standards

Adherence to established welding standards and specifications is essential for ensuring consistent quality, safety, and structural performance of steel shelving systems. The American Welding Society’s AWS D1.1 (Structural Welding Code – Steel) is the premier welding code governing welded structures made from commonly used carbon and low-alloy constructional steels. It establishes comprehensive requirements for design, procedures, qualifications, fabrication, inspection, and repair of steel structures. Similarly, the international standard ISO 5817 defines weld quality levels (B, C, and D) for fusion-welded joints in steel. Level B represents stringent requirements for critical load paths and tight fit-ups; Level C is the most economical standard for general structural frames; and Level D applies to non-critical brackets and guards where minor imperfections are acceptable.

For robotic MIG welding applications, compliance with ISO 17662 (calibration of welding equipment) and ISO 14732 (operator qualification) ensures consistent process control. Welding procedure specifications (WPS) must be developed and qualified to verify that the welding parameters—including current, voltage, travel speed, and shielding gas composition—produce sound, defect-free welds. For structural steel shelving, weld discontinuities such as cracks (never allowed), porosity, lack of fusion, undercut, and excess reinforcement must be controlled within specified acceptance criteria. Proper joint design, including beveling and fit-up preparation, is essential for achieving full penetration and minimizing defects. The carbon equivalent (CE) value of the steel must also be considered to ensure weldability, particularly for higher-strength grades.

Quality Inspection and Non-Destructive Testing

Rigorous quality inspection is essential to verify the integrity of welded steel shelving and ensure compliance with industry standards. Visual inspection (VT) is the first line of defense, examining weld profile, surface finish, and the absence of visible defects such as cracks, undercut, or porosity. For critical load-bearing joints, non-destructive testing (NDT) methods are employed to detect internal and surface-breaking defects without compromising the material. Magnetic particle inspection (MT) is used to detect surface and near-surface discontinuities in ferromagnetic materials. Dye penetrant inspection (PT) identifies surface-breaking defects in welds. For comprehensive volumetric examination of critical connections, ultrasonic testing (UT) detects internal discontinuities in welds and base materials, while radiographic testing (RT) provides a permanent record of weld quality.

Sampling for quality inspection follows standards such as ISO 2859-1, and inspection rules reference ISO 17635 for NDT guidelines. For high-strength and critical applications, load-bearing joints on upright columns, base joints, and stacking cups should be scanned using portable ultrasonic wave detectors. Finished products must undergo load-bearing tests, typically applying a static load of 1.5 times the design load, along with dimensional verification and weld non-destructive testing to ensure compliance with industry standards such as GB/T 23824 or FEM 10.2.02. Material certifications, including ISO 9001 for manufacturing quality and EN 15512 for metal racking structure standards, provide traceability and transparency. By integrating proper material selection, qualified welding procedures, and comprehensive quality inspection, manufacturers can deliver steel shelving systems that are safe, durable, and reliable for demanding industrial applications.
