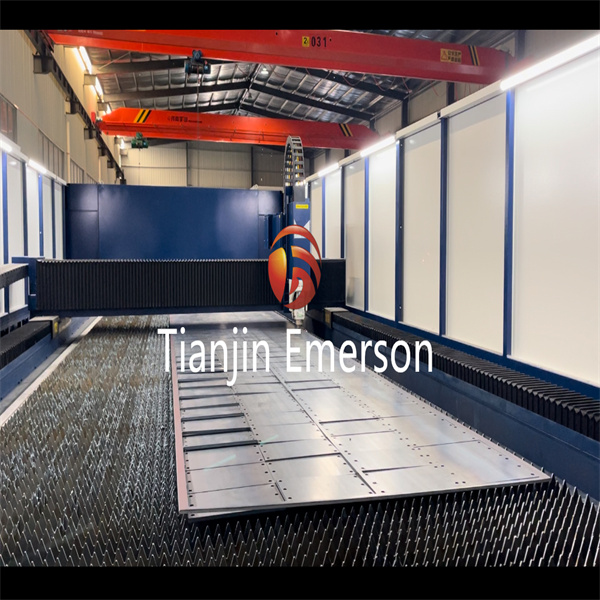

In industrial equipment manufacturing, the structural integrity and assembly precision of heavy machinery rely directly on the accuracy of its foundational components. Engineers and procurement teams face a constant trade-off between fabrication speed, edge quality, and unit cost when sourcing metal parts. Traditional cutting methods often introduce excessive thermal distortion or require costly secondary machining to meet assembly tolerances. When parts do not fit perfectly straight off the cutting bed, assembly lines slow down, and manual rework eats into production schedules.
For high-stress applications, carbon steel sheet laser cutting offers a verifiable balance of tight tolerances and scalable production speed. This guide evaluates the technical parameters, material constraints, and cost trade-offs necessary to specify laser-cut carbon steel for industrial applications. We will look at exact tolerances, assist gas selection, and metallurgical responses to high-wattage thermal processing.
Precision and Tolerances: Fiber and CO2 laser cutting consistently achieve tolerances of ±0.1mm to ±0.2mm in carbon steel, minimizing the need for post-cut milling or grinding.
Material Suitability: Low-carbon and mild steel grades (including Q235B and A36) yield the cleanest cuts, whereas higher carbon content requires strict thermal management to prevent edge hardening.
The Role of Metallurgy: The Carbon Equivalent Value (CEV) of the material directly influences the microstructural transformation at the cut edge, impacting downstream welding and forming.
Assist Gas Economics: The choice between Oxygen (exothermic reaction, thicker cuts, oxidized edge) and Nitrogen (clean edge, higher cost, thinner sheets) dictates both the final part cost and readiness for welding/painting.
Risk Mitigation: Successful procurement requires evaluating fabrication partners based on their nesting efficiency, dross management, and ISO-certified quality control processes.
Industrial equipment parts must meet strict baseline requirements. They require high structural load capacity, exact fit-up for automated welding, and minimal surface defects. Meeting these criteria ensures that heavy machinery operates safely under continuous stress. Laser cutting has emerged as the standard method for achieving these exact specifications without introducing unnecessary secondary processing steps. When you are building earthmoving equipment, agricultural machinery, or heavy-duty conveyors, the frame components must align perfectly. Any deviation in the bolt holes or interlocking tabs forces welders to use clamps and grinders, which ruins production efficiency.
Modern CNC-controlled lasers maintain absolute consistency across high-volume production runs. The standard kerf width for laser cutting ranges from 0.15mm to 0.3mm. This narrow cut allows for intricate geometries and tight nesting. High repeatability directly impacts downstream assembly lines. When parts arrive with exact dimensions, welders and assemblers spend significantly less time on manual fit-up, grinding, or forcing parts into alignment. We consistently see that holding a ±0.1mm tolerance on a 12mm thick plate eliminates the need for post-cut drilling. The laser simply pierces and cuts the hole to the exact minor diameter needed for tapping.
The Heat-Affected Zone (HAZ) refers to the area of metal that has not been melted but has had its microstructure and properties altered by heat. In carbon steel fabrication, managing the HAZ is critical to maintaining the material's mechanical strength. Modern high-wattage fiber lasers process sheets incredibly fast. This rapid travel speed minimizes the thermal footprint left on the metal. A smaller HAZ preserves the steel's original yield and tensile strength, preventing localized brittleness that could lead to structural failure under heavy loads. If the HAZ extends too far into the part, subsequent press brake bending will cause the material to crack along the bend line.
A weld-ready edge requires minimal dross, low surface roughness, and the absence of heavy oxidation. Laser cutting produces a superior edge taper compared to plasma cutting. Plasma often leaves a distinct bevel, which complicates the assembly of interlocking tabs or parts requiring tapped holes. Lasers provide a nearly perfectly perpendicular cut face. This precision eliminates the need for secondary milling or edge grinding before the parts move to the welding station. You can take a laser-cut plate directly from the pallet and place it into a robotic welding fixture with confidence.
Carbon steel is categorized by its carbon content, which dictates its reaction to laser thermal processing. Understanding the metallurgy ensures you select the right grade for both the application and the fabrication method. You cannot treat all steel plates the same when programming a laser. The chemical composition dictates the feed rate, the focal position, and the gas pressure.
Carbon concentration alters the material's thermal conductivity, melting point, and laser energy absorption rates. The Carbon Equivalent Value (CEV) is a vital metric. High CEV steels are prone to rapid cooling and local martensitic transformation during laser cutting. This transformation causes edge hardening, making subsequent machining, tapping, or bending difficult and prone to cracking. When a machinist tries to run a high-speed steel tap into a laser-cut hole on a high-carbon plate, the tap will snap if the edge has hardened into martensite.
Low carbon steel, containing 0.05% to 0.25% carbon, is highly responsive to laser processing. mild steel laser cutting produces predictable thermal responses and minimal edge hardening. This makes it ideal for machine enclosures, structural brackets, and motor mounts where post-cut forming or machining is required. The material absorbs the 1-micron wavelength of a fiber laser exceptionally well, allowing for rapid vaporization and ejection of the molten metal.
Q235B, along with its structural equivalent ASTM A36, serves as the standard workhorse for industrial equipment. Q235B laser cut parts offer excellent weldability and machinability. Optimal results for Q235B plates are achieved by balancing cutting speeds with the correct assist gas. Oxygen is typically used for thicker plates to maintain speed, while nitrogen can be used for thinner sheets to preserve a clean, paint-ready edge. When cutting 10mm Q235B, a 6kW fiber laser can easily maintain a feed rate that prevents excessive heat buildup while leaving a smooth, striation-free edge.
Steels with greater than 0.3% carbon present distinct challenges. The primary risks include micro-cracking, brittleness, and extreme edge hardening. Mitigating these risks requires specific strategies. Fabricators must adjust pre-heating parameters, modify focal lengths, and utilize slower feed rates. In many cases, post-cut tempering or annealing is required to restore ductility to the cut edge. If you skip the annealing step on a 1045 steel part, any subsequent cold forming will almost certainly result in catastrophic material failure.
Surface condition heavily influences laser performance. Impurities, rust, and heavy carbon mill scale (magnetite) act as thermal insulators. They disrupt the laser beam's coupling with the metal, leading to inconsistent cuts and blowouts. Hot Rolled Pickled & Oiled (HRPO) and Cold Rolled sheets perform significantly better than Hot Rolled Dry steel with intact mill scale. The clean surface of HRPO allows for faster cutting speeds and cleaner edges. If you try to cut through thick, flaky mill scale, the laser will lose focus, the assist gas will scatter, and the bottom of the cut will be covered in hard, stubborn dross.
Mapping the physical limits of current laser technology against engineering requirements prevents costly design errors and ensures manufacturability. You need to know exactly what the machine can and cannot do before you finalize your CAD models.
Standard commercial fiber lasers efficiently cut carbon steel up to 25mm thick using oxygen assist gas. Beyond this thickness, edge quality begins to degrade, and the cut taper increases. For extremely thick plates exceeding 25mm, high-definition plasma or waterjet cutting often becomes more practical and efficient than laser processing. While a 12kW or 15kW fiber laser can technically pierce 30mm steel, the resulting edge will have pronounced striations and a noticeable bevel that might not meet strict assembly tolerances.
The choice of assist gas fundamentally changes the cutting process. It alters the chemistry of the cut zone and dictates the secondary operations required.
| Assist Gas | Mechanism | Edge Condition | Best Application |
|---|---|---|---|
| Oxygen (O2) | Exothermic burning reaction | Oxidized (requires mechanical removal) | Thick carbon steel plates (>6mm) |
| Nitrogen (N2) | Inert melt and blow (Fusion) | Clean, oxide-free, paint-ready | Thin mild steel sheets (<6mm) |
Oxygen creates an exothermic reaction, burning the steel and allowing for faster cutting of thick plates. However, it leaves an iron oxide layer on the cut edge. This oxide layer must be mechanically removed prior to powder coating or high-spec welding to prevent paint delamination or weld porosity. High-pressure nitrogen cutting relies entirely on the laser's energy to melt the metal, using the gas merely to blow the molten material away. This results in a clean, oxide-free edge on thinner mild steel sheets. The trade-off is higher operating and gas consumption expenses.
A standard engineering rule of thumb for laser cutting carbon steel is the 1:1 ratio. The minimum hole diameter should generally be equal to or greater than the material thickness. Attempting to cut holes smaller than the material thickness often leads to thermal blowouts and geometry distortion during the piercing phase. Modern lasers excel at sharp internal corners, narrow slots, and intricate webbing, provided the thermal mass of the surrounding material is sufficient to dissipate the heat. If you design a 5mm hole in a 12mm plate, the intense heat required to pierce the material will melt the surrounding area, leaving a crater instead of a clean cylinder.
Understanding the overall value factors helps in evaluating the lifecycle cost of laser-cut components. You have to look beyond the raw material cost and factor in machine time, gas consumption, and scrap rates.
Laser cutting requires no hard tooling. This absence of physical dies makes it ideal for rapid prototyping and iterative design. Engineers can test multiple iterations without incurring setup penalties. For high-volume production, economies of scale apply through optimized machine setup times, automated material handling systems, and continuous, unattended run times. A shop equipped with automated sheet loaders and part sorters can run a fiber laser lights-out over the weekend, drastically reducing the per-part cost for large orders of industrial steel components.
Advanced CAD/CAM nesting software minimizes scrap rates. By tightly packing parts onto a single sheet, fabricators maximize material yield. Common-line cutting, where adjacent parts share a single cut line, further reduces laser travel time and gas consumption, directly lowering the cost per part. Good nesting software will also interlock odd-shaped parts and utilize the internal drop-outs of large rings to cut smaller brackets, pushing material utilization well above 85%.
| Cutting Method | Optimal Thickness | Precision | Heat-Affected Zone (HAZ) |
|---|---|---|---|
| Laser Cutting | Up to 25mm | High (±0.1mm) | Minimal |
| Plasma Cutting | 25mm to 50mm+ | Moderate | Large |
| Waterjet Cutting | Virtually Unlimited | High | None (Cold Process) |
Outsourcing metal fabrication carries inherent risks. Auditing suppliers and establishing clear quality control protocols ensures reliable component delivery. You cannot assume that every shop with a laser will produce the same quality parts.
Cutting dense hole patterns in thin mild steel introduces a high risk of warping and buckling due to localized heat buildup. To mitigate this, verify that the fabricator utilizes heat-dissipation cutting sequences, such as skip cutting. Pulsed laser parameters and rapid cooling paths also help maintain sheet flatness during intensive cutting routines. If the laser head simply cuts sequentially from one side of a perforated sheet to the other, the accumulated heat will cause the sheet to bow upward, potentially crashing into the cutting nozzle.
Dross, or slag, can accumulate on the bottom edge of carbon steel cuts. Procurement teams must define acceptable versus unacceptable dross levels. Ensure the supplier has automated deburring, grinding, or vibratory tumbling processes integrated into their workflow to deliver parts that are safe to handle and ready for assembly. Hard dross left on a part will prevent it from sitting flat in a welding jig, throwing off the entire assembly.
Evaluate fabrication partners based on their credentials. Look for ISO 9001 for quality management and EN 1090 for structural steel components. Request material test reports (MTRs) to ensure chemical composition traceability. Implement First Article Inspection (FAI) requirements for critical parts, focusing specifically on edge micro-hardness and strict dimensional tolerances.
Carbon steel sheet laser cutting provides an unmatched combination of speed, precision, and efficiency for industrial equipment parts up to 25mm thick. The ability to achieve tight tolerances without extensive secondary machining streamlines the entire manufacturing process. Procurement teams should select fabrication partners based on specific laser wattage capabilities, assist gas options, and in-house secondary operations like forming, welding, and deburring. A capable partner will actively manage thermal distortion and material utilization.
Prepare your DXF or STEP files with all tolerances and bend lines clearly marked.
Define your edge-quality expectations and specific material grade requirements, such as Q235B HRPO.
Specify whether the parts require oxygen or nitrogen assist gas based on your downstream painting or welding needs.
Submit a detailed Request for Quote (RFQ) to your chosen fabrication partner for a comprehensive technical review.
A: The standard maximum limit for commercial fiber lasers is typically 20mm to 25mm. While thicker cuts are possible with specialized equipment, edge quality and taper significantly degrade beyond this threshold, making plasma or waterjet cutting more viable alternatives.
A: Low-carbon mild steel experiences minimal edge hardening during laser cutting. However, materials with a higher Carbon Equivalent Value (CEV) can form hard martensite along the cut face due to rapid thermal cycling, which may require post-cut annealing.
A: An oxide layer forms when oxygen is used as an assist gas. The oxygen creates an exothermic reaction that speeds up the cutting process for thicker plates, but it leaves a dark iron oxide film on the edge that must be removed before painting or welding.
A: Yes, laser cutting excels at intricate shapes, sharp internal corners, and narrow slots. However, engineers should follow the 1:1 rule, ensuring the minimum hole diameter is at least equal to the material thickness to prevent thermal blowouts.
A: Mill scale acts as a thermal insulator and disrupts the laser beam's ability to couple with the metal. This leads to inconsistent cuts, slower processing speeds, and poor edge quality. Using Pickled and Oiled (P&O) steel provides a much cleaner cut.
