Steel Material Surface Finishing Methods Explained

Abrasive Blasting: Cleaning and Profiling for Coating Adhesion

Sandblasting, commonly referred to as sandblasting or steel shot blasting, is a mechanical surface treatment method that involves propelling abrasive media at high speed onto the surface of steel. This process effectively removes scale, rust, old paint layers, and surface contaminants while creating a uniform profile that enhances coating adhesion. The resulting surface roughness typically ranges from 25 to 75 microns, providing an ideal substrate for liquid coatings, powder coatings, and other protective coatings. Sandblasting must comply with cleanliness standards such as SSPC-SP10 (Near-White Metal) or SA 2.5 to ensure consistent results in industrial applications. For structural steel, bridge components, and heavy equipment, sandblasting is the preferred surface preparation method prior to applying high-performance coating systems.

Pickling and Passivation: Chemical Cleaning for Stainless Steel

Pickling and passivation are chemical surface treatment processes specifically designed for stainless steel surfaces. Pickling uses an acidic solution (typically a mixture of nitric acid and hydrofluoric acid) to dissolve surface discoloration caused by heat, welding slag, and embedded iron particles. This restores the chromium-rich passivation layer, which is essential for corrosion resistance. Passivation follows pickling and involves the use of nitric or citric acid solutions to remove free iron and strengthen the natural oxide film. These processes are essential for applications such as food processing equipment, pharmaceutical containers, and architectural stainless steel, where both corrosion resistance and a clean appearance are required. Properly pickled and passivated stainless steel surfaces are uniformly bright and comply with standards such as ASTM A967.

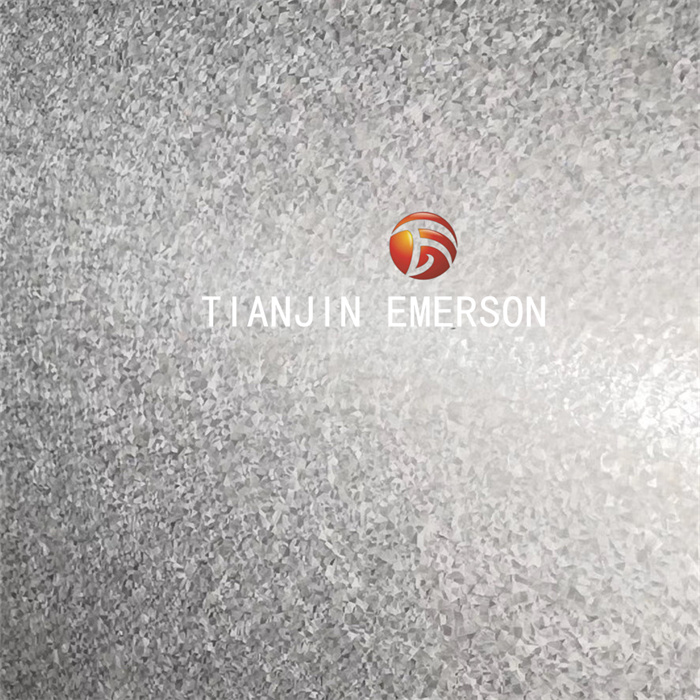

Hot-Dip Galvanizing: Sacrificial Protection for Carbon Steel

Hot-dip galvanizing involves immersing fabricated carbon steel components into a molten zinc bath at approximately 450°C. Through a metallurgical reaction, a series of zinc-iron alloy layers forms, with the outermost layer consisting of a pure zinc coating, thereby providing dual protection: a robust physical barrier and sacrificial cathodic protection. Even if the coating is scratched, the surrounding zinc layer will corrode first, thereby protecting the exposed steel. Galvanized coatings typically range in thickness from 45 to 200 microns and provide a maintenance-free service life of 20 to 50 years in atmospheric environments. This surface treatment process is specified for utility poles, highway guardrails, transmission towers, and any outdoor steel structures requiring long-term corrosion protection without the need for periodic repainting.

Powder Coating: Durable and Decorative Finish

Powder coating involves spraying dry, electrically charged polymer particles onto a grounded steel surface, followed by heat curing to fuse the powder into a continuous, cross-linked coating film. This solvent-free process produces a tough, impact-resistant coating with excellent color retention, chemical resistance, and uniformity. Powder coating is available in virtually any RAL color or custom shade, with gloss levels ranging from matte to high-gloss, and can also produce textured or metallic finishes. The cured coating thickness typically ranges from 60 to 120 microns. This process is widely used in applications such as home appliance housings, automotive components, architectural trim, and industrial equipment—areas that demand both durability and aesthetic appeal.

Painting: Versatile Protection for Controlled Environments

For steel components not exposed to extremely corrosive environments, liquid coating remains a widely used and cost-effective surface treatment method. Modern industrial coating systems consist of three layers: primer, intermediate coat, and topcoat, each formulated for specific functions: the primer provides adhesion and inhibits corrosion, the intermediate coat increases film thickness, and the topcoat offers UV resistance and color retention. Application methods include airless spraying, brushing, or rolling, and drying and curing can take place at room temperature or slightly above. Coating is typically suitable for indoor structural steel, machinery, storage tanks, and various types of equipment, where color matching, ease of touch-up, and moderate corrosion protection are the primary considerations.

Electroplating: Precision Coating for Small Components

Electroplating deposits a thin layer of metal—typically zinc, nickel, chrome, or cadmium—onto steel surfaces through an electrochemical process. The steel component serves as the cathode in an electrolytic bath, with metal ions migrating and depositing onto the surface. Electroplated coatings offer excellent uniformity, bright appearance, and controlled thickness ranging from 5 to 25 microns. Zinc plating provides sacrificial corrosion protection for fasteners, brackets, and small parts, while nickel and chrome plating deliver wear resistance and decorative luster for automotive trim, hardware, and consumer goods. This method is ideal for high-volume, precision components where tight tolerances and consistent finish are required.
