Carbon Steel Thin Plate Vs. Heavy Plate: A Comprehensive Guide To Dimensional Standards, Material Selection, And Fabrication Processes

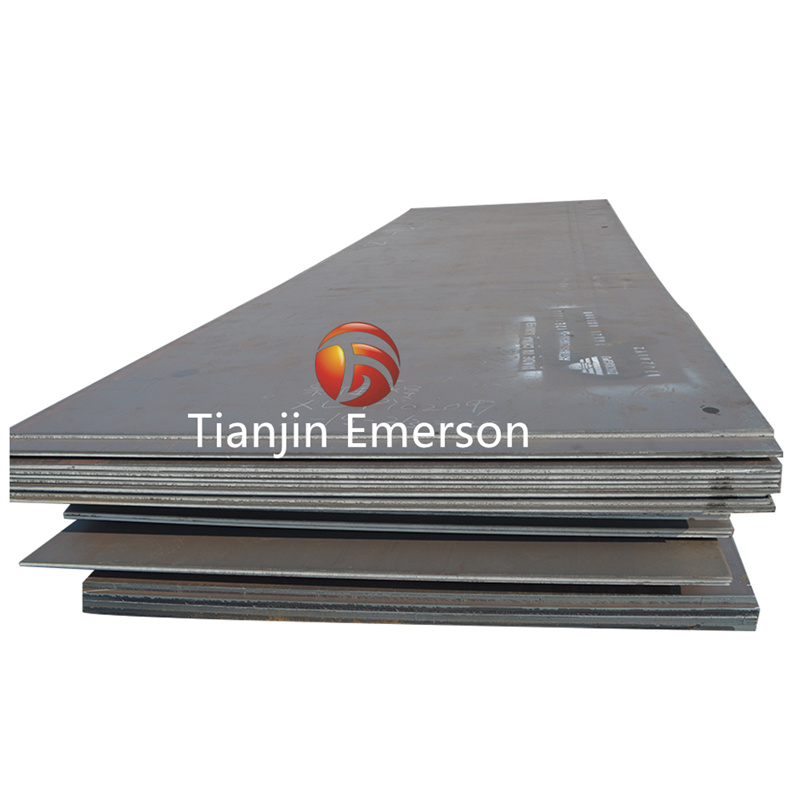

In the realm of industrial metal fabrication, the distinction between carbon steel plate and steel plate extends far beyond simple thickness measurement; it fundamentally determines the material's behavioral characteristics, applicable processing techniques, and ultimate application domains. Steel plate classification typically categorizes materials with thicknesses ranging from 1.5 millimeters to 6 millimeters as thin plate, while steel plate encompasses thicknesses from 6 millimeters to 150 millimeters, and can even reach greater thicknesses for specialized applications. Sheet steel is typically produced by cutting continuous rolled coils to length, whereas plate steel primarily employs four-high rolling mills for slab slitting. This process enables the significant thickness reduction and precise thickness control required for plate steel. The thickness range directly impacts formability, welding heat input requirements, and the mechanical forces needed for subsequent processing. Consequently, dimensional specifications represent the most critical consideration in carbon steel plate projects.

For general structural applications spanning both thin and thick plate categories, ASTM A36 remains the most widely specified grade. With a minimum yield strength of 250 MPa (36 kpsi), it offers excellent weldability and formability, making it suitable for scenarios ranging from lightweight enclosures to heavy-duty structural frameworks. For complex bending and stamping processes in sheet applications requiring enhanced formability, low-carbon grades like 1008 and 1010 offer superior ductility and stable forming characteristics. Typically containing less than 0.10% carbon, they resist cracking during cold working while delivering excellent responsiveness. Medium-carbon steel plates (such as Grade 1045 with approximately 0.45% carbon content) are suitable for applications requiring higher strength and wear resistance in the rolled condition. However, their ductility is more limited compared to low-carbon grades, which can restrict forming operations.For pressure vessels and cryogenic service applications, ASTM A516 grades 55 to 70 offer superior notch toughness. Their thickness range—from 205 mm for high-strength grades to 305 mm for grade 55—makes them a critical material for manufacturing components in energy, chemical processing, and industrial equipment sectors. High-strength low-alloy steels (HSLA), such as ASTM A572 Grade 50, enable lightweight designs in heavy equipment, bridge construction, and transportation applications. For extreme wear resistance requirements, grades AR400, AR450, and AR500 are selected.

The processing methods for carbon steel plates vary significantly based on thickness classification: thin plates are suitable for a broader range of high-speed precision forming operations, while thick plates require more robust equipment and fundamentally different manufacturing processes. In thin plate applications, laser cutting machines are primarily utilized for cutting. Their advantages include: ensuring edge quality within thicknesses below 25 millimeters while maintaining ±0.1 millimeter precision, thereby supporting complex designs. Post-cutting, thin plates proceed to the bending machine process for precise, repeatable forming operations.The inherent ductility of low-carbon steel sheets enables small bend radii and complex multi-bend geometries, which are critical for enclosure manufacturing, chassis components, and precision brackets. Sheet metal welding requires strict heat control to prevent burn-through and distortion. For plates exceeding 25 millimeters in thickness, substantial bending capacity is needed. In cases involving extremely thick sections and large bending radii, a three-roll bending system is employed. This system generates the immense pressure required to deform materials 100 millimeters or more.
