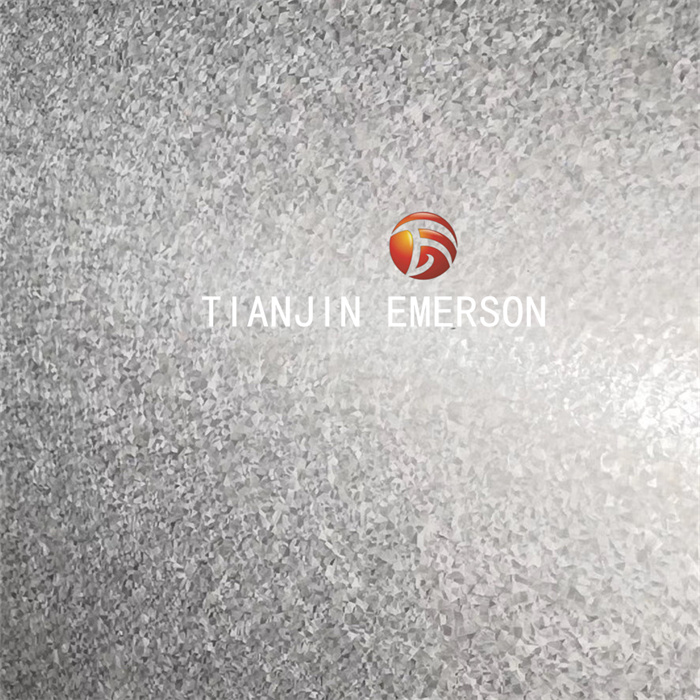

Galvanized Steel Sheet Material Laser Cutting Metal Parts

Product Overview

Zinc Coating & Thickness

Process Advantages

• Corrosion Protection Preserved: Nitrogen-assist cutting parameters are calibrated to minimize zinc boil-off at the kerf. The resolidified zinc film along the cut boundary continues to provide sacrificial protection, delaying red rust at exposed edges.
• No Tooling Investment: Complex contours, internal cutouts, and variable hole patterns are produced directly from your CAD file. Design changes are implemented immediately—ideal for prototype iterations and short-run production.
• Material Efficiency: Advanced nesting algorithms maximize sheet utilization across multiple part numbers, reducing scrap rates and lowering your per-part material cost.
• Post-Cut Forming Ready: Laser-cut galvanized blanks flow directly into our press brake cells for bending, louvers, and flange forming without delamination of the zinc layer.
• Weld-Compatible Edges: The absence of heavy oxide scale on nitrogen-cut edges means less pre-weld grinding, faster tacking, and cleaner weld beads on galvanized assemblies.

Typical Applications

• Electrical & Telecommunications: Cable tray sections, junction box backplates, panel boards, and server rack mounting ears
• Agricultural Machinery: Equipment guards, seed hopper transition chutes, and tractor attachment shims
• Building & Construction: Roofing clips, flashing profiles, wall bracket blanks, and HVAC duct transitions
• Automotive Aftermarket: Skid plates, exhaust heat shields, and battery tray reinforcements
• General Fabrication: Storage shelving components, conveyor side guides, and safety guard enclosures

FAQ

Q: Does laser cutting destroy the galvanized coating at the edges?

A: The laser beam melts a narrow zone at the cut line, which does remove the zinc layer directly at the kerf. However, the adjacent zinc coating remains intact, and the molten zinc resolidifies as a thin protective film along the exposed steel edge. For harsh outdoor environments, we recommend applying a zinc-rich touch-up paint to cut edges after installation.

Q: What thickness of galvanized sheet is best for laser cutting?

A: Our fiber lasers operate most efficiently on galvanized steel from 0.5mm to 6.0mm. Below 0.5mm, the material is prone to heat distortion; above 6.0mm, cutting speed decreases and dross management becomes more challenging. For most industrial parts, 1.0mm to 3.0mm offers the best balance of rigidity, cut quality, and cost.

Q: Can you cut galvanized sheet that already has a protective plastic film?

A: Yes. We use laser-compatible PVC or PE film that can remain on the sheet during cutting. This is particularly useful for brushed, pre-painted, or cosmetic galvanized surfaces where scratch prevention is critical. The film is removed during final inspection and packing.

Q: Is it safe to weld laser-cut galvanized parts?

A: Yes, but proper ventilation is essential because welding vaporizes zinc, creating fumes that must be extracted. For the strongest welds, grind the zinc back slightly from the joint line before welding, then restore protection with cold galvanizing compound afterward. The clean laser-cut edge requires less grinding than rough shear-cut or saw-cut edges.

Q: How does galvanized steel compare to aluminum for laser-cut outdoor parts?

A: Galvanized steel offers higher strength and lower material cost than aluminum, making it preferable for structural brackets and load-bearing panels. Aluminum is lighter and will not rust, but it is more expensive and requires different welding procedures. For outdoor parts where weight is not critical, galvanized steel with a Z180 or Z275 coating is usually the more economical choice.
