Welded Steel Frames: A Technical Overview of Material Selection, Fabrication, And Integrated Manufacturing Solutions

Welded steel frames serve as foundational skeletal structures for diverse applications across industrial, commercial, and construction sectors, offering three core advantages: high strength, design flexibility, and long-term durability. The performance of these frames hinges on precise material selection, manufacturing accuracy, and the compatibility of final coatings with operational environments. Structural frames primarily utilize carbon steel and high-strength low-alloy steel. Standard carbon steel pipes and sections, such as ASTM A500 Grade B/C pipes and A36 plates, provide an optimal balance of yield strength, weldability, and cost-effectiveness for industrial frames, machinery bases, and support structures. For applications demanding high strength-to-weight ratios or enhanced atmospheric corrosion resistance, we employ HSLA steels like ASTM A572 Grade 50 or weathering steel (ASTM A588). In environments where corrosion protection, sanitary requirements, or specific aesthetic needs are paramount, frames are fabricated from stainless steel (Grade 304 or 316) or aluminum alloys (such as 6061-T6).

A wide variety of tubing and bar stock are utilized in frame structures. We typically select square and rectangular tubing for their superior torsional rigidity and clean weld lines, offering sizes ranging from small 25x25mm cross-sections to large 200x200mm and larger for heavy-duty applications. Round tubing is primarily used for handrails, roll cages, and applications requiring smooth contours. For specific load-bearing requirements, we integrate standard structural sections like angle iron, channel iron, and I-beams. The fabrication process involves techniques such as laser cutting, bending, and welding. First, we use a sawing machine to perform straight cuts on tubing and solid materials, ensuring flat end faces. Then, a laser cutter handles complex bevel cuts, notches, trims, and precision connection profiles on tube ends or plate gussets. Following cutting, CNC bending machines shape mounting plates, brackets, and other frame components to achieve precise angular bends.The core of frame manufacturing lies in specialized welding techniques. Our certified welders employ multiple welding processes based on material properties and design requirements. Gas Metal Arc Welding (GMAW/MIG) is the primary process for manufacturing high-strength carbon steel frames, offering both efficiency and reliability. For stainless steel, aluminum, or scenarios demanding exceptional weld aesthetics and controllability, Gas Tungsten Arc Welding (GTAW/TIG) is utilized. Following fabrication, frames undergo surface treatment and finishing. Processes include: sandblasting and industrial-grade powder coating in indoor or controlled environments; hot-dip galvanizing for outdoor, marine, or harsh industrial settings, delivering ultimate long-term corrosion protection. Stainless steel frames enhance their natural corrosion resistance through passivation or electrolytic polishing.

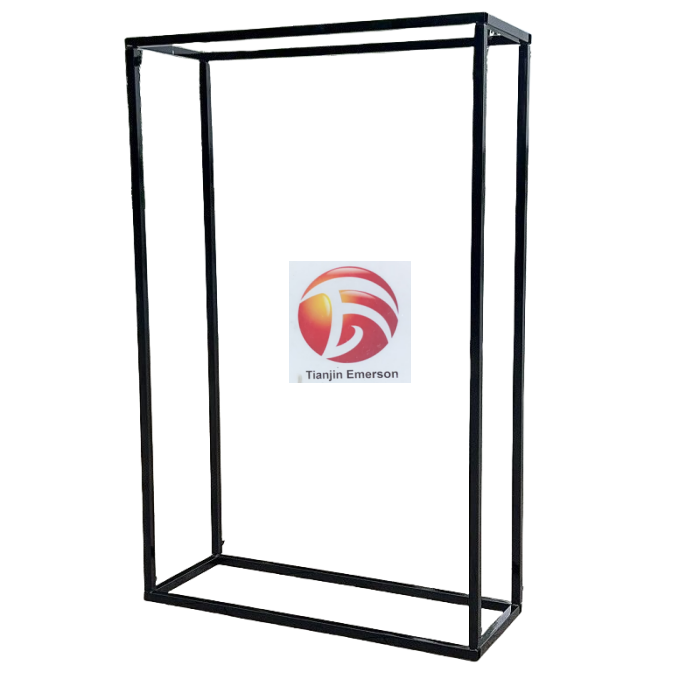

Our custom welded steel frames serve a wide range of applications, including industrial machinery enclosures, heavy equipment protective covers, conveyor systems, pallet rack uprights and custom cart supports, mezzanine floor systems, stair load-bearing beams, ceiling frameworks, and external building support structures—all requiring metal structural frameworks. Our factory is equipped with a comprehensive range of machinery capable of performing various processing operations to meet diverse customer requirements. We offer cutting, bending, welding, surface treatment, and other services to fabricate components into any desired shape.
