Design, Material Selection, And Cutting of Embedded Parts

Design Principles: The Structural Foundation of Reliable Embedments

The design of steel embedded parts is governed by established structural engineering principles that ensure safe and efficient load transfer between steel structures and concrete foundations. Embedded plates (EPs) are commonly used to connect structural steel members to reinforced concrete building elements such as walls and columns. Cast-in-place steel plates with headed steel studs constitute a common type of connection system, playing an important role in vertical and lateral load transfer mechanisms and in the energy dissipation of seismic responses by allowing sufficient ductility and controlling cracks in concrete elements.

According to the Chinese concrete structure design standard GB50010-2010, the design of load-bearing embedded parts must follow specific dimensional and detailing requirements. The anchor plate should be made of Q235 or Q345 grade steel, with thickness determined by load calculations and not less than 60% of the anchor bar diameter. For tension and bending embedded parts, the plate thickness should also exceed b/8, where b is the spacing between anchor bars. Anchor bars must use HRB400 or HPB300 grade reinforcing steel, and cold-worked steel bars are strictly prohibited. The distance from the anchor bar center to the plate edge should not be less than 2d and 20mm, and the anchor bars should be positioned inside the outer layer of main reinforcement. The diameter of straight anchor bars should be between 8mm and 25mm, with at least four bars per embedment (except for shear-only applications where two bars are acceptable). For tension and bending embedments, the spacing between anchor bars should not be less than 3d and 45mm. These standardized design provisions ensure consistency and reliability across projects, though due to a lack of readily available industry-wide standard embedded plate designs, embedded plates are often custom designed for each project.

Material Selection: Matching Grade to Performance Requirements

The choice of material for embedded parts directly influences their load-bearing capacity, weldability, and durability in service. The most commonly specified material is Q235B carbon structural steel (equivalent to S235JR), which offers a minimum yield strength of 235 MPa and is suitable for typical light and medium-duty applications. For high-strength, high-load-bearing projects, Q355B low-alloy steel (equivalent to S355JR) is preferred, providing a yield strength of 355 MPa—approximately 51% higher than Q235B. Q355B also offers better toughness than Q235B and can be used at low temperatures, making it particularly suitable for bridge, curtain wall embedment plates, and other critical structural components.

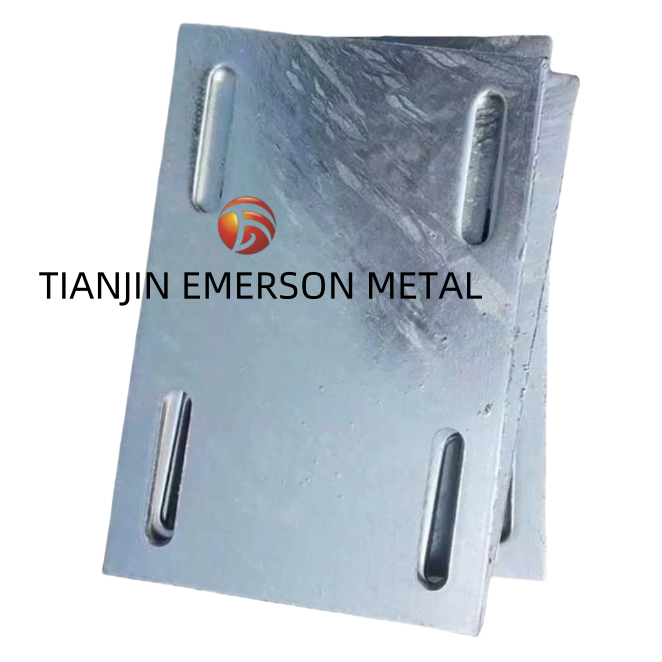

For corrosion-resistant applications, stainless steel grades such as 304 and 316 are available. Material thickness typically ranges from 3mm to 50mm, with standard thicknesses including 6mm, 8mm, 10mm, 12mm, 15mm, and 20mm. Anchor studs and rebar are commonly specified as 4.8 threaded studs or HRB400 rebar, with custom diameters (M10-M30+) available. Surface treatment options include hot-dip galvanizing (HDG) per GB/T 13912 / ISO 1461 with minimum zinc coating thickness of 85μm (600 g/m²), which can be increased to 100μm or 120μm for severe environments (C4, C5), as well as electro-galvanizing or bare steel for on-site painting. Mill test certificates should be provided for all materials to ensure full traceability and compliance with specifications.

Cutting Technologies: From Precision Laser to Heavy-Duty Plasma

The cutting of embedded parts is a critical operation that determines dimensional accuracy, edge quality, and subsequent weldability. Modern fabrication facilities employ a range of cutting technologies tailored to material thickness and precision requirements. Laser cutting offers the highest precision, with tolerances reaching ±0.1mm and kerf widths of 0.2–0.5mm. Laser cutting is ideal for thin to medium plates (3–25mm) and complex geometries such as irregular embedded plates, curtain wall brackets, and precision connection components. The process produces smooth, burr-free edges with surface roughness Ra≤3.2μm, significantly reducing subsequent grinding and finishing operations.

For thicker plates and heavier structural applications, CNC plasma cutting provides an accurate and cost-effective method for processing high-alloy, aluminum, and mild steel plate up to 80mm thickness with tolerances of ±2mm. Plasma cutting is particularly suitable for structural components, brackets, base plates, gussets, and heavier steel parts. Advanced CNC plasma systems maintain tight cutting tolerances even on 50mm thick plates, ensuring all parts fit seamlessly during erection. For extra-thick plates, oxy-fuel (flame) cutting remains a cost-effective solution, particularly for Q235, Q355, and 45# steel.

Before cutting, material preparation is essential. For Q355B steel plates, roller leveling and online thickness measurement ensure that incoming material tolerances are controlled within ±0.08mm, which is a prerequisite for achieving stable cutting results. This level of dimensional control ensures that subsequent cutting operations achieve the required accuracy and that embedded plates meet the BIM deepening design requirements with positioning errors within ±2mm. By carefully selecting the appropriate cutting method based on material thickness, required precision, and production volume, fabricators can deliver embedded parts that meet stringent quality standards while optimizing cost and efficiency.
