Precision Manufacturing of Steel Stairs: Process And Safety Guidelines

Material Selection and Design Preparation

The first step in manufacturing durable steel stairs is selecting the appropriate material grade and structural design. For most industrial and commercial applications, carbon steel grades such as Q235B or ASTM A36 are preferred due to their excellent weldability, strength, and cost-effectiveness. For environments prone to moisture or corrosion (e.g., outdoor fire escapes or coastal buildings), stainless steel (304 or 316) or hot-dip galvanized carbon steel is specified. The design phase must comply with local building codes (e.g., IBC or OSHA) regarding rise, run, tread depth, riser height, and load capacity (typically 100 psf for live loads). Engineers produce detailed shop drawings indicating stringer profiles, tread spacing, handrail heights, and connection details. Before fabrication, all materials are verified against mill test reports (MTRs), and surface preparation (abrasive blasting to SA 2.5) is performed to remove mill scale and rust, ensuring optimal weld quality and coating adhesion.

Fabrication Process: Cutting, Bending, and Welding

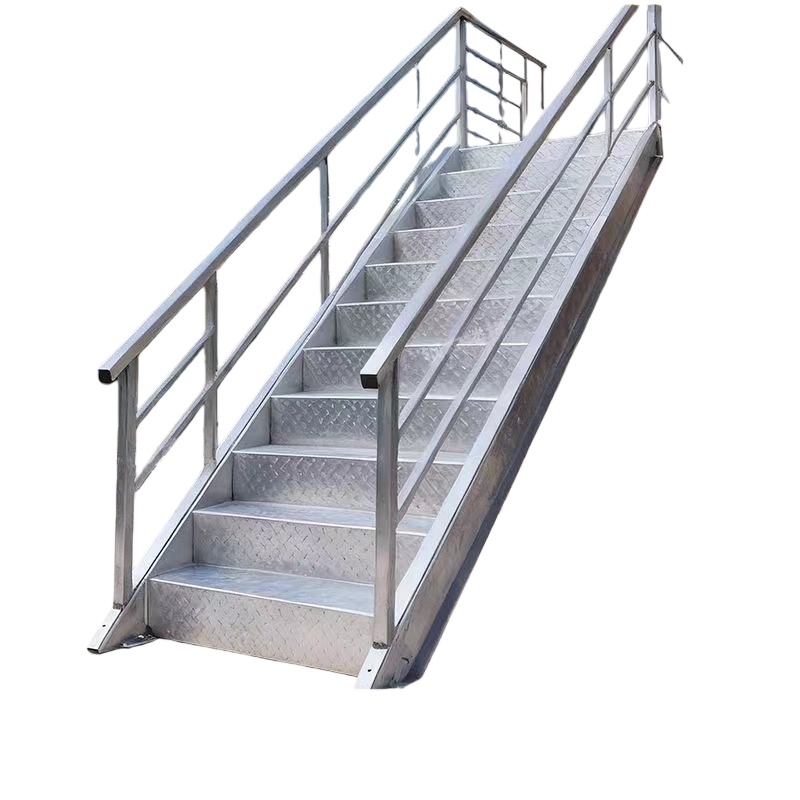

Steel stair fabrication begins with precision cutting of stringers (the inclined load-bearing members), treads, risers, and handrail posts. High-definition plasma or laser cutting systems profile the steel plates and sections to exact dimensions, achieving tolerances within ±1.5mm. For curved or spiral stairs, CNC plate rolling or press brake forming creates the required radii. The stringers are typically cut from heavy channel sections or laser-cut from thick plate, with the tread support notches or tabs incorporated. All cut edges are deburred and, if required, beveled for full-penetration welds. The assembly is then jigged on a welding table to maintain correct geometry—stringers are positioned parallel and at the precise angle, treads are leveled, and handrail posts are plumb. Certified welders use Gas Metal Arc Welding (GMAW/MIG) for carbon steel or Gas Tungsten Arc Welding (GTAW/TIG) for stainless steel, following qualified welding procedures (WPS). Welds are inspected visually and via non-destructive testing (dye penetrant or ultrasonic) to verify integrity. Anti-slip tread surfaces (e.g., expanded metal, checker plate, or applied grit coating) are integrated during assembly.

Finishing, Inspection, and Installation Precautions

Post-fabrication, the steel stair assembly undergoes abrasive blasting to remove weld spatter and scale, followed by a protective coating system. For indoor stairs, a three-coat epoxy-polyurethane paint system provides durability and aesthetics. For outdoor or harsh environments, hot-dip galvanizing (HDG) offers sacrificial corrosion protection. Key precautions during installation include: ensure the supporting structure (concrete slab or steel frame) is level and anchor bolts are correctly embedded; lift the stair assembly with spreader bars and padded slings to prevent coating damage; field welding should be minimized—use bolted connections where possible; any field-welded areas must be cleaned and touched up with zinc-rich paint. Before final handover, load testing (e.g., applying 1.5× design live load) verifies structural integrity. Additionally, all safety features—handrails (minimum 42 inches high for industrial stairs), intermediate balusters, and toe boards—must conform to OSHA standards. Regular inspection of welds, coating condition, and fasteners is recommended every 6–12 months for industrial stairs. By following this rigorous process, manufacturers deliver steel stairs that are safe, durable, and code-compliant.
