Shaft Bar: Material Selection, Dimensional Specifications, And Precision Manufacturing for Power Transmission Components

Shafts, as fundamental cylindrical components, serve as critical pillars in mechanical power transmission systems across all engineering disciplines. Their primary functions include transmitting torque and rotational motion while supporting mounted elements such as gears, pulleys, bearings, and couplings. Selecting reliable shaft materials requires consideration of mechanical strength, fatigue resistance, wear characteristics, and environmental factors. For broad general industrial applications, medium-carbon steels (such as AISI 1045 or 1050) serve as the standard choice. These steels combine excellent machinability with quenching and tempering (Q&T) heat treatment capabilities, significantly enhancing surface hardness and core toughness. They are suitable for shaft components subjected to moderate loads in machinery, automotive, and agricultural equipment.When higher strength, superior fatigue resistance, and enhanced hardenability are required—such as for high-performance automotive axles, aerospace actuator systems, or heavy-duty transmission output shafts—alloy steels like AISI 4140, 4340, or EN19 are specified. These chromium-molybdenum steels exhibit excellent responsiveness to heat treatment, yielding outstanding mechanical properties. For corrosive environments (e.g., marine, chemical processing, food and beverage) or applications requiring non-magnetic properties, stainless steel grades are selected. As a manufacturing partner, our expertise lies in conducting comprehensive material analysis to guide customers in selecting the optimal material grade based on factors such as torsional load, bending load, operating speed, environmental conditions, and lifecycle costs.

We process shafts and rods in a wide range of dimensions, with standard diameters spanning from 3 millimeters to 300 millimeters and beyond. Products are available in random rolled lengths or precision-cut from stock to specific blank dimensions. Additionally, custom machining is offered, yielding finished components tailored to diverse industrial sectors: in automotive and transportation, they are fabricated into crankshafts, camshafts, axles, and transmission output shafts; while industrial machinery and automation rely on them for countless motor shafts, pump rotors, conveyor drive rollers, and machine tool spindles. Furthermore, they are indispensable in the energy sector (turbine shafts, generator rotors), agricultural equipment (power take-off shafts), and consumer goods manufacturing.

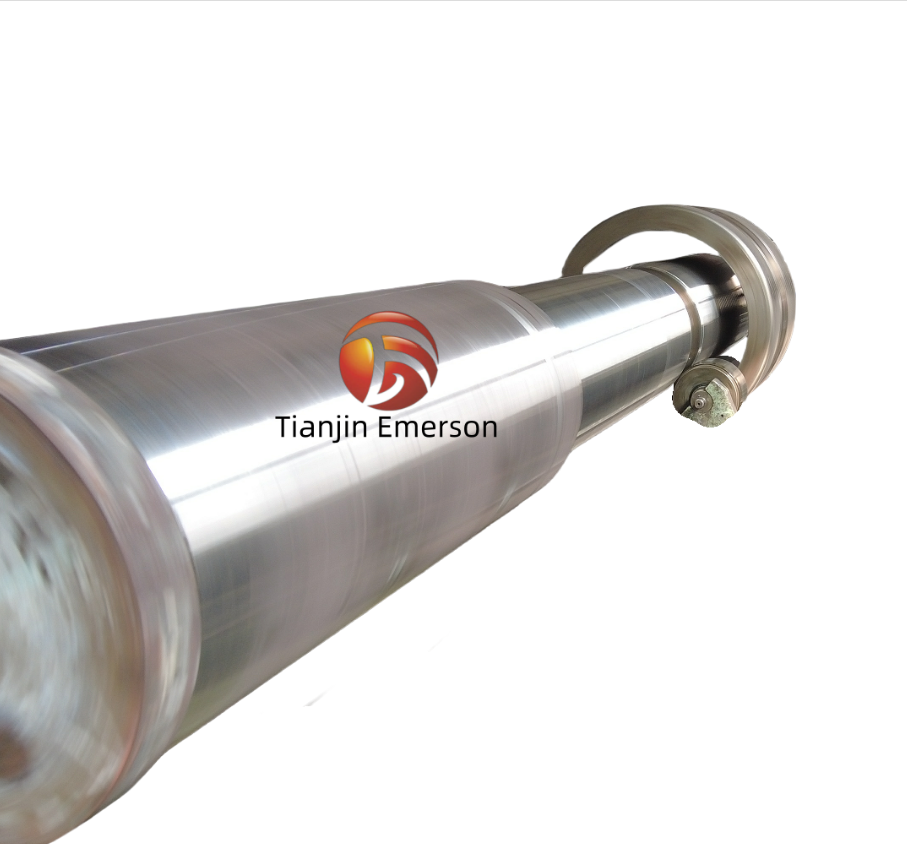

After precision cutting on the sawing machine, the initial round steel is processed into products such as polished shafts. The core of shaft manufacturing lies in precision CNC turning and machining. Multi-axis CNC lathes complete all critical operations: face turning, straight and taper turning, grooving, end machining, and internal/external threading—all meeting stringent tolerances of ±0.012 mm (±0.0005 in). For components requiring keyways, flat surfaces, splines, or cross holes, CNC milling centers provide precision secondary machining. Materials requiring heat treatment undergo internal processes like quenching or induction hardening to achieve specified surface hardness and core strength, followed by grinding to correct minor distortions. Final stages include finishing and surface strengthening treatments. In summary, material selection, cutting operations, CNC machining, heat treatment, and finishing integration are all performed in-house at our facility. This includes supporting certification verification to ensure product quality meets customer requirements.
