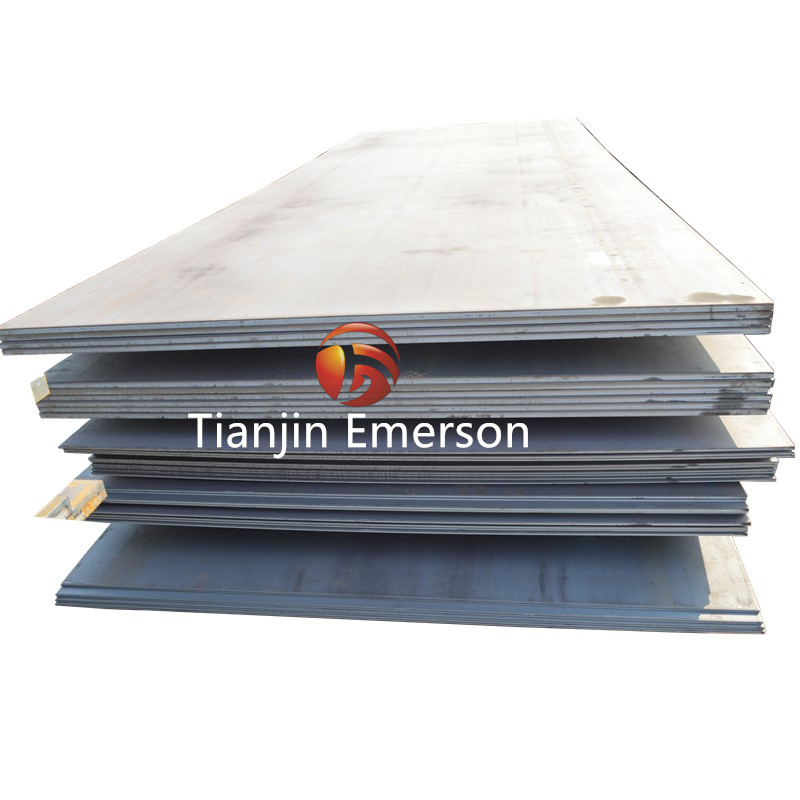

Essential Material Properties of Shipbuilding Steel Plates

High Strength and Yield Stability for Structural Integrity

Shipbuilding steel plates must exhibit excellent mechanical strength to withstand the immense forces encountered during ocean voyages, including wave-induced bending, hull girder stresses, and local pressure from cargo and ballast. Classification societies such as ABS, DNV, LR, and CCS specify minimum yield strength values for different grades. Normal-strength ship plate grades (A, B, D, E) typically offer yield strength of at least 235 MPa, while high-strength grades (AH32, DH32, EH32, AH36, DH36, EH36) provide 315–355 MPa yield strength, allowing for lighter, more fuel-efficient hull designs. The tensile strength generally ranges from 400 to 520 MPa, depending on grade and thickness. Uniform mechanical properties through the plate thickness are critical; therefore, ship plates are produced using controlled rolling and heat treatment processes such as normalizing or thermo-mechanical controlled processing (TMCP). These methods refine grain structure and ensure consistent strength across thick sections—often up to 50mm or more for large vessels. Additionally, ship plates must maintain their yield strength at elevated temperatures for fire-resistant designs (e.g., FP grades). For offshore structures, even higher-strength grades (EH40, EH47) with yield strengths up to 460 MPa are available.

Superior Low-Temperature Toughness and Impact Resistance

One of the most critical properties of shipbuilding steel is its ability to resist brittle fracture at low temperatures, especially for vessels operating in arctic or winter sea conditions. Ship plates are classified according to their Charpy V-notch impact toughness at specified test temperatures: Grade A requires no impact test (for milder service), Grade B requires 27J at 0°C, Grade D requires 27J at -20°C, and Grade E requires 27J at -40°C. High-strength grades follow a similar pattern: AH32/36 test at 0°C, DH32/36 at -20°C, EH32/36 at -40°C, and FH32/36 at -60°C for extreme environments. This toughness ensures that cracks do not propagate under dynamic loading from wave impact, ice collision, or welding residual stresses. The fine-grained, low-carbon (typically ≤0.18%) and low-sulfur (≤0.005%) composition, often with aluminum grain refinement, achieves the required ductile-to-brittle transition temperature. Ship plates must also pass drop-weight tear tests (DWTT) for thick sections to verify shear fracture appearance. These toughness properties are verified by testing coupons taken from the actual plate, oriented transversely to the rolling direction, as per the applicable classification society rules.

Excellent Weldability and Corrosion Resistance for Fabrication and Service

Shipbuilding steel plates must offer outstanding weldability to facilitate efficient construction and repair of large hull structures. Low carbon equivalent (CEV) values—typically below 0.40% for normal-strength grades and below 0.43% for high-strength grades—minimize the risk of hydrogen-induced cracking in heat-affected zones. Preheating requirements are thus reduced, accelerating fabrication. Modern ship plates are designed for high-heat-input welding (up to 150–200 kJ/cm) without significant loss of toughness, enabled by controlled titanium nitride (TiN) particle dispersion. This allows use of automated one-sided welding processes. For corrosion resistance, while ship plates are not stainless, they are formulated to withstand marine atmospheric corrosion and, for cargo tanks, may have added corrosion-resistant properties (e.g., for crude oil tankers). Additionally, special grades like AH36 with enhanced corrosion resistance (often called “cargo oil tank corrosion-resistant steel”) are used for new vessels to prevent pit corrosion from aggressive cargoes. For ships carrying corrosive chemicals, stainless steel or coated plates are specified. Finally, ship plates must undergo rigorous non-destructive testing (ultrasonic, magnetic particle) and be fully traceable with mill certificates, ensuring every plate meets the required property profile for safe, long-term marine service.
