Steel Structure Assembly And Installation Guide

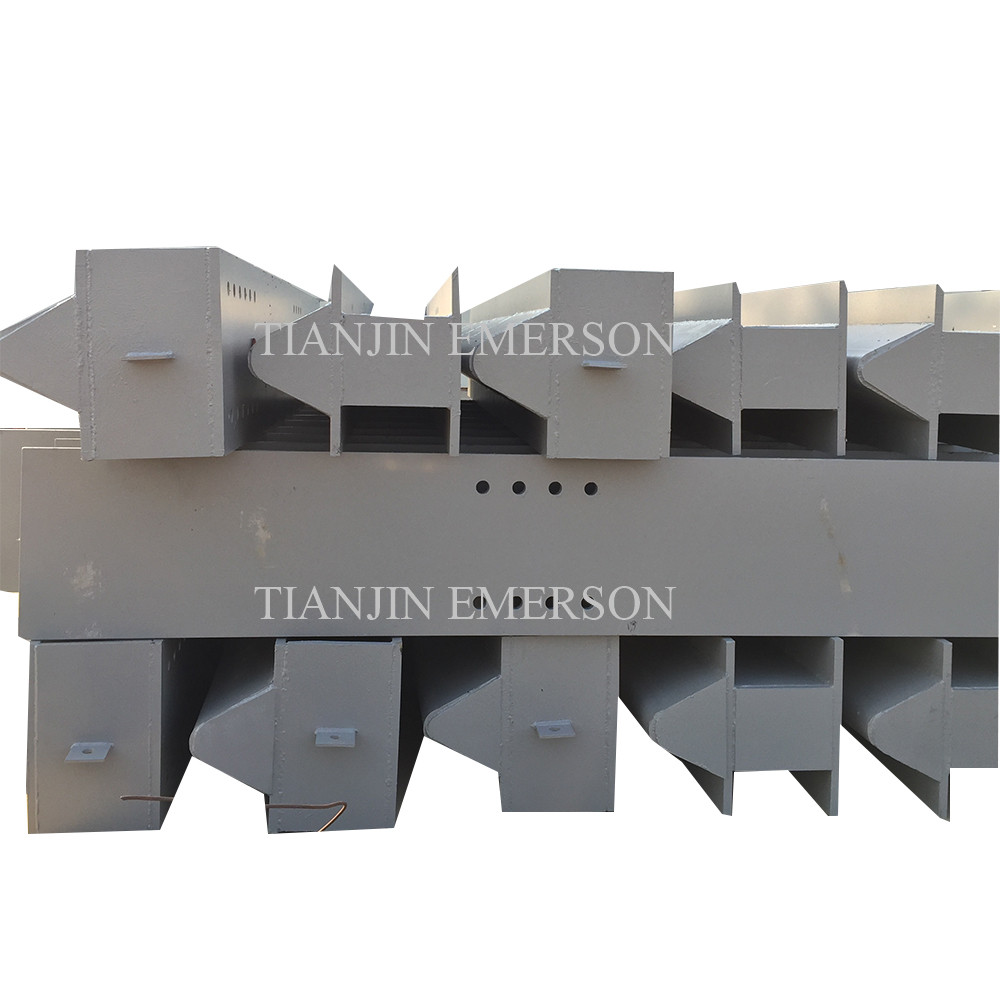

Stage One: Pre-Erection Planning, Foundation Verification, and Alignment Control

Successful steel structure assembly begins long before the first beam is lifted, with meticulous pre-erection planning that aligns fabrication delivery sequences, crane access, and installation staging. Before any steel arrives on site, the erector’s engineer must prepare a detailed erection plan covering pickup sequence, temporary bracing requirements, connection procedures, and safety measures. Foundation readiness is verified by surveying anchor bolt position, elevation, and thread projection against structural drawings—AISC limits for bolt group position and plumb are tighter than ACI 117 limits, and contract documents must specify which standard governs before foundation work starts. After foundation preparation, the sequence proceeds by first placing leveling nuts or shims under each column base plate, followed by column installation with temporary bracing to maintain straightness and plumb. The general erection flow follows: anchor bolt installation, base plate setting, column erection, beam and girder placement, joist and deck installation, and then connection tightening and final plumbing. For large or multi-story structures, the process is staged to build by bays or sections, with completed stable zones used as platforms for subsequent lifts. This staged approach ensures the structure remains stable and aligned throughout assembly, preventing progressive deformation.

Stage Two: High-Strength Bolt Installation and Connection Tightening

After primary members are positioned and temporarily supported, permanent connections are secured primarily through bolting, with site welding employed where specified. High-strength structural bolts (ASTM A325, A490, or A325 Metric equivalents) must be tightened to at least 70 percent of the minimum required tensile strength to achieve proper clamp force in slip-critical or bearing-type joints. The turn-of-nut method is the most common and reliable field technique: after bringing all bolts to a snug-tight condition—where all plies of the connection are in firm contact—the nut is rotated by a prescribed angle (typically 1/2 to 2/3 turn, depending on bolt length and geometry, as specified in RCSC A348-20W, Table 8.1). Match-marking the nut and protruding bolt point before final tightening allows inspectors to visually verify nut rotation has been achieved. The calibrated wrench method provides an alternative using a torque wrench calibrated to the specific bolt lot and lubrication condition, typically requiring two-stage tightening with final torque applied from the snug condition. The direct tension indicator (DTI) method uses compression washers with protrusions that flatten to a specified gap when correct tension is reached, offering visual inspection confirmation. GB/T 32076.10-2018 specifies that calibration error of torque wrenches must not exceed ±4% and that initial tightening shall be performed at 50% of the final torque. For bolting, torque-controlled assembly typically requires two-stage tightening with prescribed axial force values verified after installation. Post-tightening, inspections must verify bolt rotation marks, thread engagement (2 to 3 exposed threads), and that no fasteners have been loosened when adjacent bolts were tightened. Where site welding is required, all welders and welding operators must be qualified per AWS D1.1 or applicable code, and non-destructive testing (NDT) of site welds should follow approved inspection plans as part of the quality control program.

Stage Three: Structural Stability, Safety Control, and Final Acceptance

As the frame rises, maintaining stability is critical because the structure is assembled while still incomplete—heavy members are lifted into place, connections are only partially secured, and the frame must remain stable long before reaching its final configuration. Temporary bracing (cables, beams, or strongbacks) must be installed immediately after each critical lift to prevent sway before secondary members provide permanent stability. Tie-offs for ironworkers must be provided on steel columns more than 15 feet above the floor until permanently connected, and the erection crew must comply with OSHA 29 CFR 1926.750 subpart R and applicable local codes. During erection, continuous survey monitoring verifies column plumbness, beam elevations, and overall alignment against specified geometric tolerances, with laser or total station verification after each major bay is set. After full erection and before grouting, the controlling contractor must confirm columns have been adjusted to limits of plumb and elevation, and base plates have been leveled with adjustable nuts or shims, maintaining the required grout gap between the base plate and the foundation. Grouting follows standard practice: foundation surface is cleaned, forms are set around the base plate perimeter, and high-strength non-shrink grout is placed to provide uniform bearing under the plate after final column alignment is verified. Final acceptance of the erected steel structure involves multiple verification steps: dimensional checks against the erection execution specification define acceptance limits for identification, traceability, geometrical tolerances, options and execution levels. For critical projects or complex designs, proof load testing per ASCE/SEI 76-23 may be required, involving the sustained application of test loads for a minimum of 24 hours while monitoring deflections and checking for signs of distress before acceptance is granted. Following acceptance, as-built documentation and declarations of conformity to the project specification are finalized, providing full traceability for the completed structural frame.
