Technical Specifications And Fabrication of H-Beams: From Standard Hot-Rolled Sections To Custom Welded Structures

The selection and manufacturing of H-section steel strictly adhere to international standards and engineering specifications. Standard hot-rolled H-section steel is produced in mills through a continuous rolling process, covering multiple predefined series with dimensions constrained by strict tolerances. Its “thickness” is defined by two key dimensions: web thickness and flange thickness. These dimensions are not arbitrarily set but are engineered based on the beam's overall height and width to meet specific load-bearing capacity and moment of inertia requirements. Owing to their high cost-effectiveness, consistent material properties, and immediate availability in standard sizes, these hot-rolled sections serve as the preferred solution for the vast majority of applications in building frames, bridges, and industrial platforms. Primary supply grades include ASTM A992 or A36, offering high yield strength and excellent weldability. However, when project specifications demand non-standard dimensions, special thicknesses beyond rolling capacity, or require specialty steels (such as high-strength quenched and tempered steel or wear-resistant alloys), the solution shifts from rolled products to custom-designed welded H-beams.

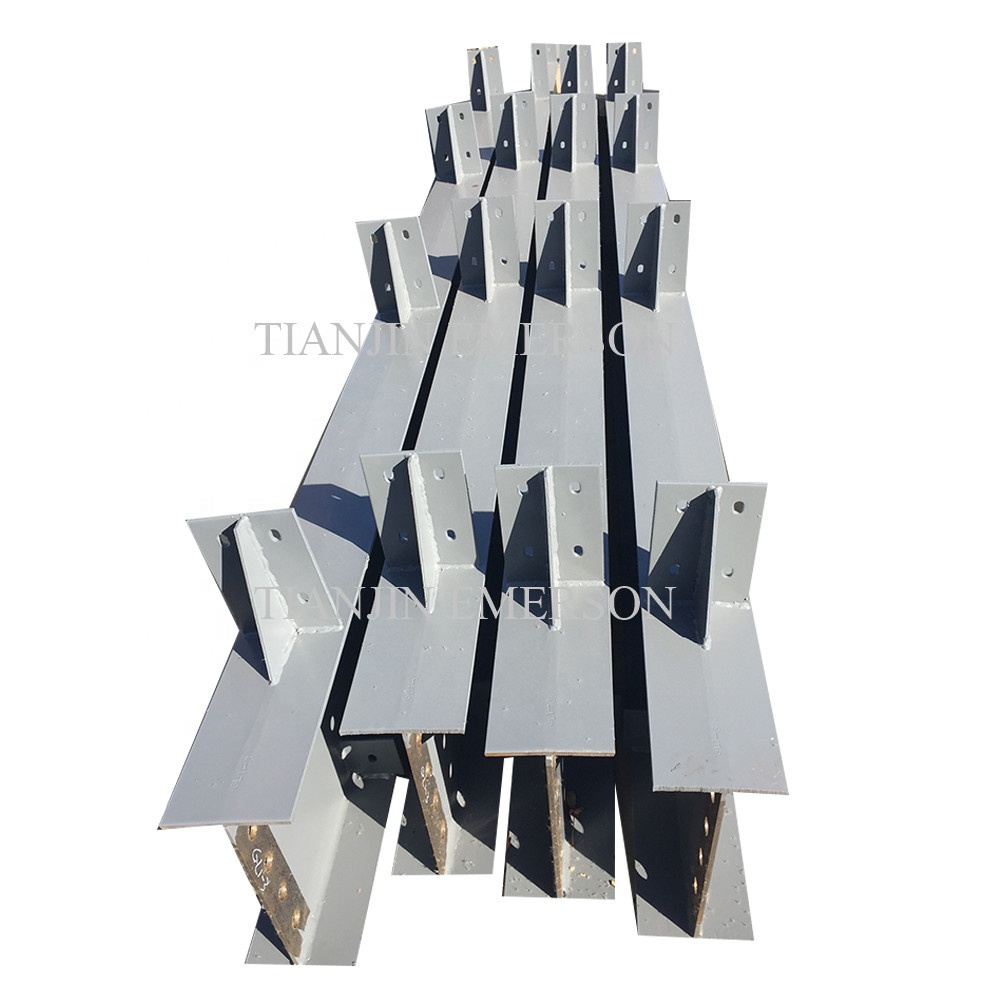

The fabrication of welded I-beams is a precision multi-stage process that transforms thick steel plates into monolithic structural members, offering unparalleled strength alongside high customization potential. First, prepare one web plate and two identical flange plates. Laser cutting machines precisely trim steel plates ranging from 10mm to over 100mm thick to the required width and length. The edges forming the weld are typically beveled using the same thermal cutting process to ensure full penetration weld quality. All components undergo straightening and cleaning before assembly. Precision positioning and spot welding then occur in specialized fixtures, ensuring perpendicular alignment between web and flange plates while maintaining the required camber or curvature. After initial welding, components may undergo stress relief treatment in computer-controlled furnaces to eliminate internal stresses and restore toughness in the heat-affected zone. Finally, the beam is precision-cut to its final length, drilled with connection holes using CNC equipment, and subjected to rigorous inspection (including ultrasonic testing of critical welds). Only after meeting all dimensional and quality standards is surface treatment applied and shipment arranged.

Welded I-beams offer greater design flexibility, enabling the production of sections with deeper webs, thicker flanges, and variable cross-sections along their length—features unattainable through rolling processes. This versatility makes welded I-beams suitable for a wide range of applications: as main columns and transfer beams in high-rise buildings and heavy industrial facilities, as primary girders spanning large bridge spans, and as critical components in mining equipment, shipbuilding, and offshore platforms.
