Hollow Bar Cutting Service

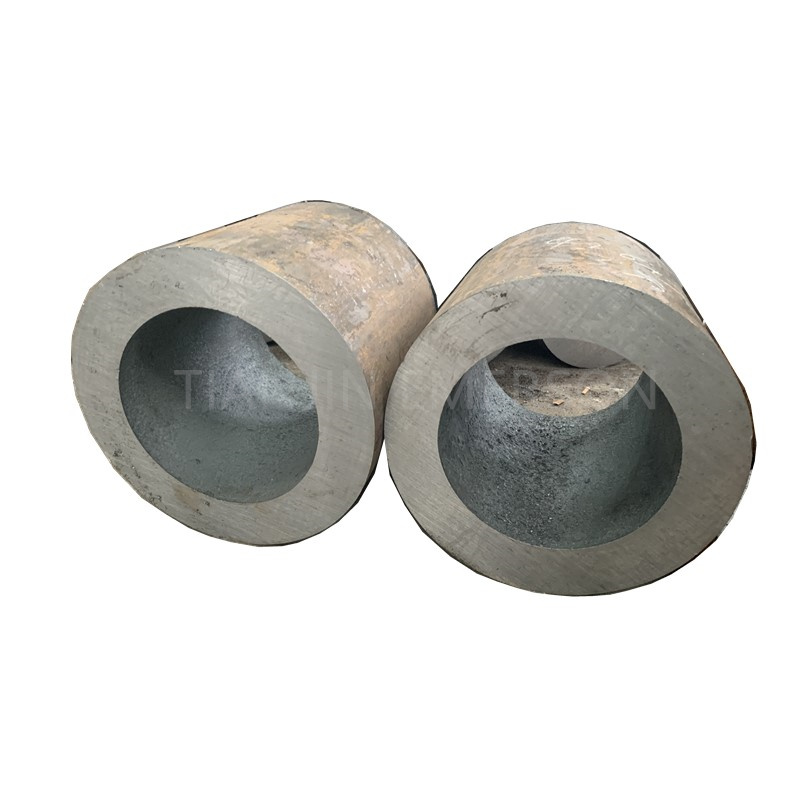

Hollow bars, also known as tubular rods or drilled rods, uniquely balance material utilization and design flexibility for components requiring central holes. Unlike solid bars that necessitate extensive machining to create internal cavities, hollow bars enter the machining workshop as near-net-shape products with pre-formed concentric bores. This significantly reduces processing time, lowers tool consumption, and minimizes material waste. Common materials for hollow bars include stainless steel (304/316, 17-4PH), titanium alloys, high-speed steel, and duplex/super duplex steel. Critical dimensional parameters must be confirmed, such as outer diameter (OD), inner diameter (ID), wall thickness, and final cut length requirements.Prior to cutting and machining, each selection must be confirmed based on the material properties of the hollow bar stock, dimensional accuracy requirements, and the specific demands of its end application. Once specifications are confirmed, the selected hollow bar stock will be retrieved from inventory—which encompasses various sizes ranging from 6mm to 500mm outer diameter with corresponding inner diameter configurations—and fed into equipment calibrated for hollow section cutting for processing.

The core of hollow bar cutting services encompasses a combination of multiple machining technologies. Precision sawing using high-speed circular cold saws or heavy-duty band saws equipped with specialized saw blade geometries for hollow sections is the most common method for achieving smooth, straight cuts on hollow bars of various diameters and wall thicknesses. Cold sawing with carbide-tipped blades delivers exceptional cut quality with minimal burrs and dimensional accuracy as tight as ±0.5 mm or better—critical for critical components like valve bodies, pump shafts, and orthopedic implants. For high-volume production, automated sawing systems with programmable length control and integrated material handling achieve consistent repeatability while minimizing manual intervention.For harder materials such as high-speed steel or titanium alloys, abrasive cutting processes can be employed, as conventional saw blades wear out rapidly on such materials. For applications demanding extreme precision and complex end geometries, our factory utilizes a proprietary 20,000V laser cutting machine. This equipment processes hollow rods up to 18 meters in length, executing precision cutting operations including intricate contours, precise hole layouts, and customized end profiles. Its exceptional accuracy and burr-free cuts eliminate the need for secondary finishing. Fiber laser technology offers significant advantages when processing highly reflective materials such as copper, brass, stainless steel, and aluminum alloys—materials commonly found in hollow rod applications.

Beyond primary cutting, comprehensive hollow bar cutting services encompass a range of critical secondary processing operations. For applications requiring precise angle cuts, beveling services enable inclined end face processing up to 60 degrees, meeting the demands of complex structural joint configurations or specialized component geometries. Chamfering and beveling create specific angles (typically 30 degrees or 37.5 degrees) on cut ends. This process is critical for achieving full penetration welding in key piping systems and pressure-bearing components.
